PR electronics 4510 Product Manual

Display / programming front
Hide thumbs Also See for 4510:
Table of Contents

Advertisement

Quick Links

Product manual
4510
Display / programming front
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 4510V10 0 - UK
From serial no. : 2212070 01
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR electronics 4510

Summary of Contents for PR electronics 4510

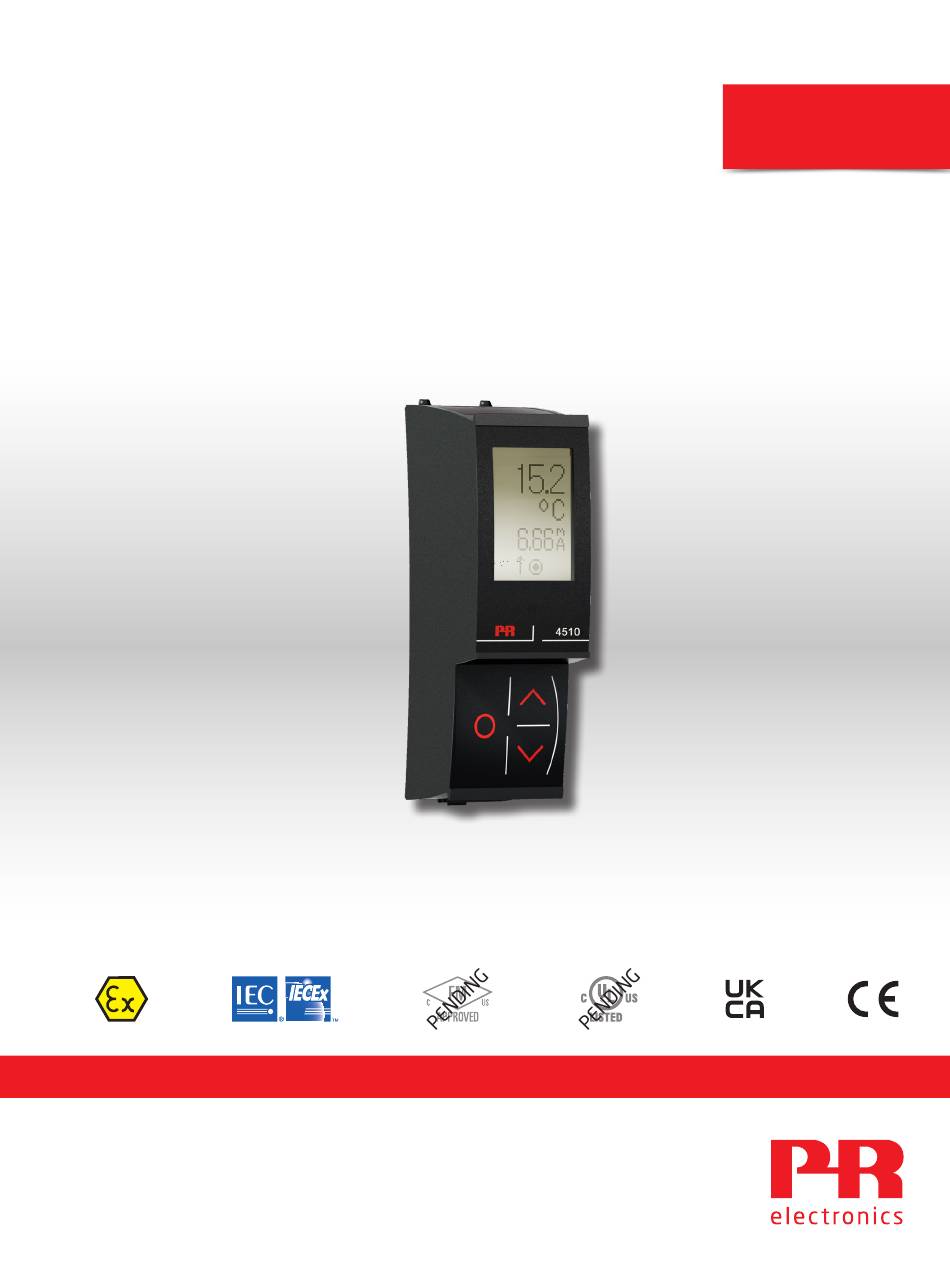

  • Page 1 PERFORMANCE MADE SMARTER Product manual 4510 Display / programming front T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    4510 settings - routing diagram........

  • Page 4: Warning

    If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Repair of the device must be done by PR electronics A/S only. Symbol identification Triangle with an exclamation mark: Read the manual before installation and commissioning of the device in order to avoid incidents that could lead to personal injury or mechanical damage.

  • Page 5: Safety Instructions

    When disconnected, the device may be cleaned with a cloth moistened with distilled water. Warranty PR electronics A/S offers a 5-year warranty on this product. Liability To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR electronics A/S that would otherwise exist according to the concluded sales agreement.

  • Page 6: Mounting / Demounting Of A Pr 4500 Communication Interface

    Mounting / demounting of a PR 4500 communication interface Communication interfaces in the PR 4500 series are detachable displays that can be mounted on a PR 4590 Configmate or all system 4000 / 9000 fronts for programming and signal monitoring. Mounting 1: Insert the tabs of the PR 4500 into the holes at the top of the device.

  • Page 7: Applications

    The easily readable 4510 display can be used to monitor the process signal, simulate the output signal, indicate sensor errors and internal device errors. • The 4510 can be moved from one device to another. The individual system 3000 / 4000 / 9000 device configuration of a transmitter can be saved and downloaded to subsequent transmitters. Technical characteristics •...

  • Page 8: Order

    Order Type Description 4510 Display / programming front 4590 ConfigMate interface Electrical specifications Environmental conditions: Operating temperature ....... . -20°C to +60°C Storage temperature .

  • Page 9: Display Layout

    Display layout By default, the PR 4510 enters monitor mode for process surveillance. With the front keys, the 4510 can enter programming or simulation mode. Layout for 3000/4000 and 9000 series products (in monitor mode) PR 3000 / 4000 Line 1 shows the scaled process value.

  • Page 10: Operating The Function Keys / Display

    In general When using the PR 4510 for configuration of a PR 4000 or PR 9000 device, you will be guided through all parameters and can choose the settings which fit the application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display.
  • Page 11 4510 functions The PR 4510 gives access to a number of functions which can be reached by answering “Yes” to the menu point “ADV.SET” (see “4510 settings - routing diagram” on page 10). Display orientation The menu item “ORIEN” allows the user to rotate the display 180 degrees for correct operation with upside down mounting of the device.

  • Page 12: 4510 Settings - Routing Diagram

    ! ! ! Returns to ”Monitor” from any menu, after 1 minute with no keypress. The gray shaded menus/texts are only shown for guidance, and are not part of the PR 4510 specific submenu. Refer to the individual product manual for each 4000/9000 device to see the product-specific menu structure.

  • Page 13: Atex Installation Drawing

    Hazardous Area Unclassified Area II 3G Ex IIC Modbus RTU Gateway 4511 4511 4511 PLC/DCS HMI/PC 4000/9000 4000/9000 4000/9000 IP 54 Hazardous Area Unclassified Area II 3G Ex IIC 4510/ 4510/ 4510/ 4512 4512 4512 4000/9000 4000/9000 4000/9000 IP 54 4510V100-UK...
  • Page 14 General installation instructions Year of manufacture can be taken from the first two digits in the serial number. For safe Ex installation the following must be observed: The device must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.

  • Page 15: Iecex Installation Drawing

    For safe installation of the 4500 series of products the following must be observed. Unclassified Area Hazardous Area Modbus RTU Gateway 4511 4511 4511 PLC/DCS HMI/PC 4000/9000 4000/9000 4000/9000 IP 54 Unclassified Area Hazardous Area 4510/ 4510/ 4510/ 4512 4512 4512 4000/9000 4000/9000 4000/9000 IP 54 4510V100-UK...
  • Page 16 General installation instructions Year of manufacture can be taken from the first two digits in the serial number. For safe Ex installation the following must be observed: The device must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.

  • Page 17: Fm Installation Drawing

    4511 4511 4511 PLC/DCS HMI/PC 4000/9000 4000/9000 4000/9000 IP 54 Hazardous Area Unclassified Area CL I Div2 GP A,B,C,D CL I Zone 2 AEx/Ex ec IIC T5 Gc 4510/ 4510/ 4510/ 4512 4512 4512 4000/9000 4000/9000 4000/9000 IP 54 4510V100-UK...
  • Page 18 General installation instructions Year of manufacture can be taken from the first two digits in the serial number. For safe Ex installation the following must be observed: The device must be installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area.

  • Page 19: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 2215 Initial release of the product. 4510V100-UK...
