Trek SPEED CONCEPT SLR 2022 Service Manual Supplement page 4

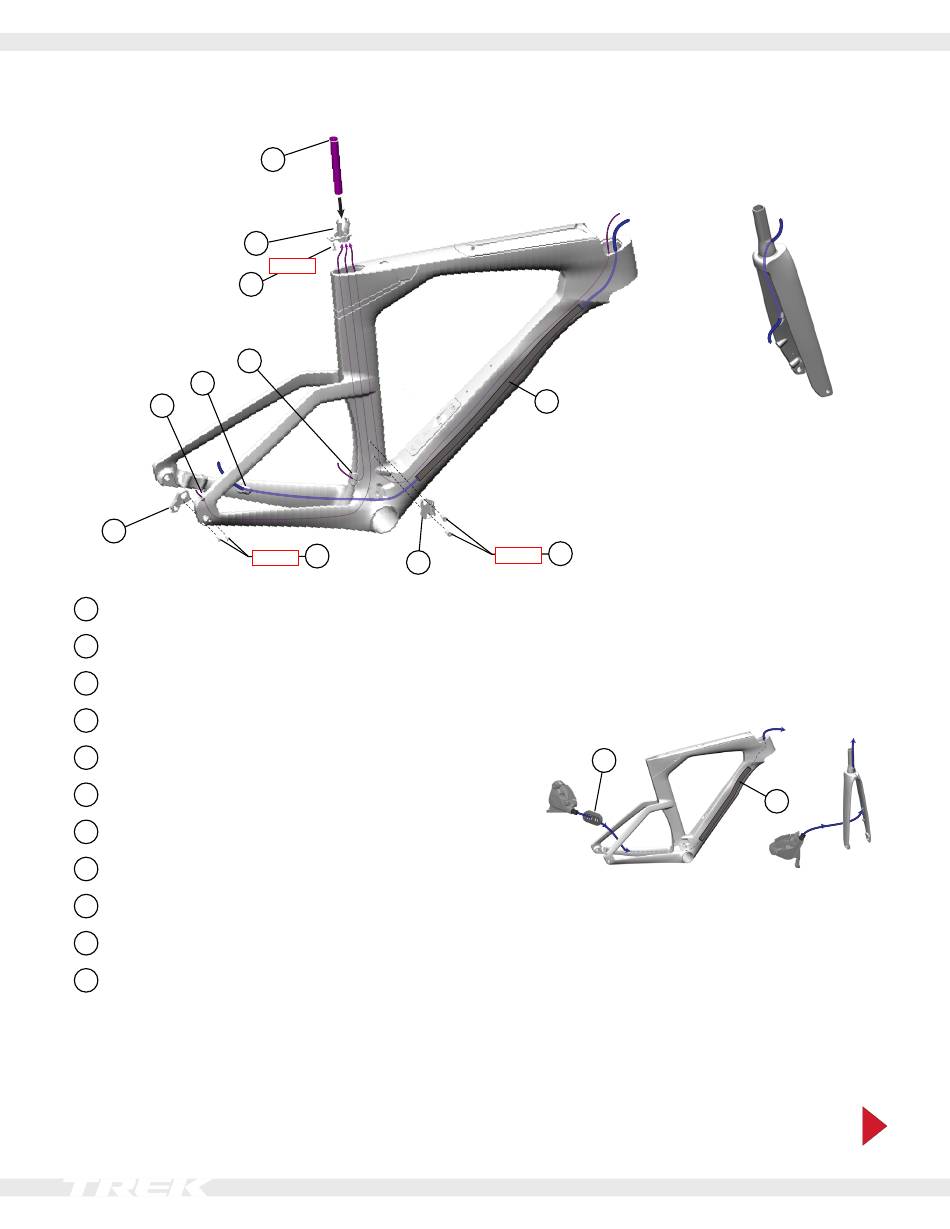

Brake/shift routing — Di2
11
3
7
1
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
Rear brake grommet — W330578
3
4 Front shift wire grommet — W326042
5 Front derailleur bolts — W5263897
6 Front derailleur washer — W5257283
7 Rear Di2 shift wire grommet — 317292
8 Foam housing sleeve (60cm) — W528082
9 Battery mount — 5255420
10 Battery o-ring — 5255421
11 Battery mounting screw — 5255425
10
9
4-6Nm
4
2
0.7Nm
6
8
5
5.2Nm
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet
(3) and foam sleeve (8). Route both brake hoses as
shown below.
3
3. Loosely attach the calipers to the chainstay and fork
(this keeps the hoses from sliding out).
2022 Speed Concept SLR/TT
8
3
