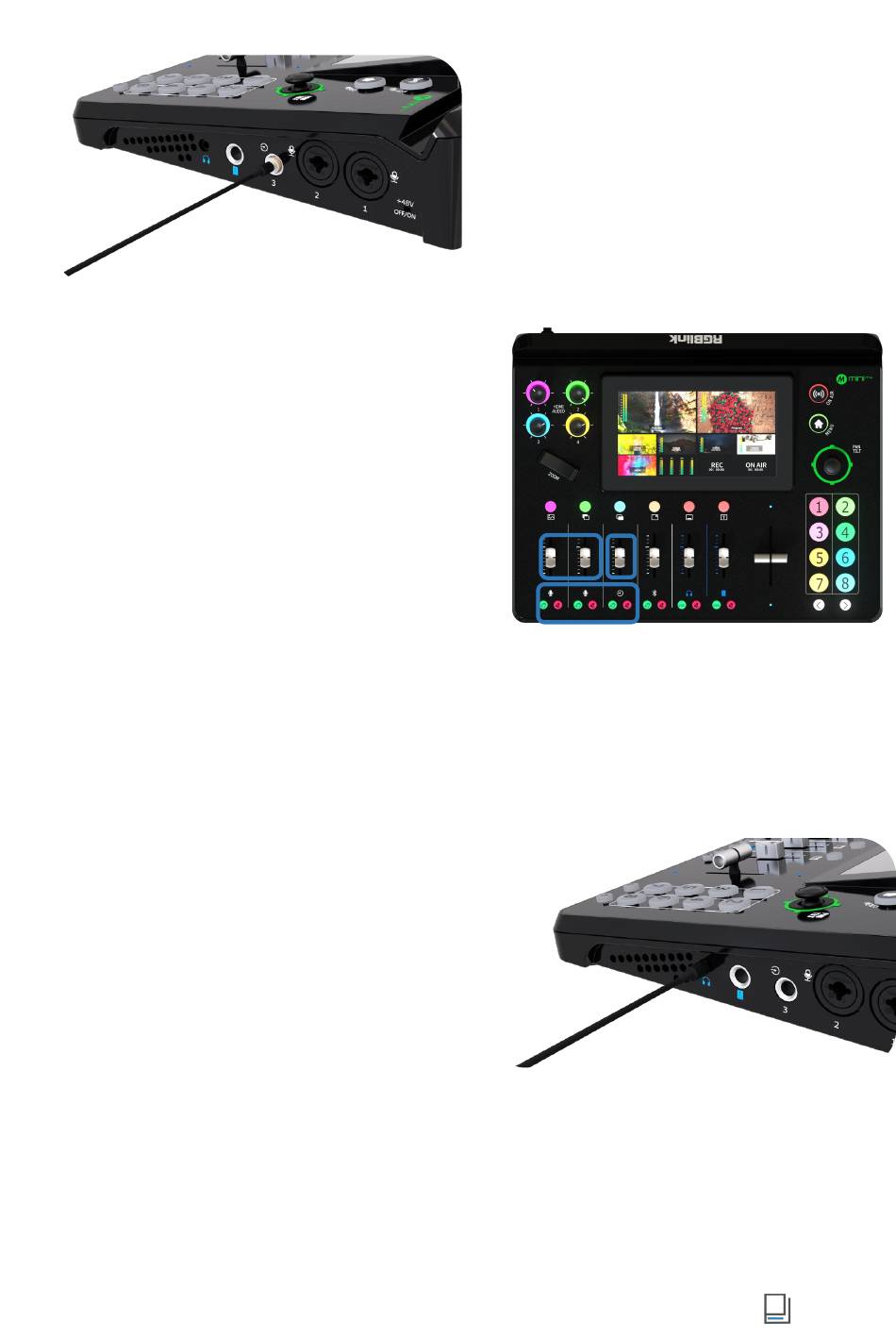

Adjusting Volume
Use Physical Fader to control audio volume level for
MIC 1、MIC 2、Line-in.
The red button under each of the mini-mx's
physical faders is a Mute Button and the green
button is a Listen Button.
Use listen button to monitor the audio from a
channel.
Use mute button to mute that channel on the PGM
output.

Connect Headphones and Speakers

Connecting Headphones
mini-mx comes with TWO audio output jacks on the
right panel, One adopts 3.5mm mini-jack, which can
be directly connect to the headphone for audio
monitoring.
www.rgblink.com
Connecting Line-Level Devices
The other one adopts Line-in 6.35mm TRS jack,
which can be directly connect to the mobile phone,
computer and console.
To connect a line-level device, the process is much
the same as connecting a microphone: simply plug it
in to Line-in jack using a TRS cable.
