Switch Window Display
Program Port：Default as Program Output, can set as
Multi-view Preview or Test Pattern optional Output
by menu.
Preview Port：Default as Multi-view Preview Output,
can set as Program or HDMI 1~4 optional Output by
menu.
Connect Microphones and Other Devices
Connecting Microphones
mini-mx features THREE high-quality audio input
jacks on the right panel, TWO of which adopt Neutrik
jacks (MIC in 1 supports 48V phantom power).
Plug microphone into MIC in jacks of the unit using a
standard 3-pin XLR cable, including condenser
microphones that require phantom power.
www.rgblink.com

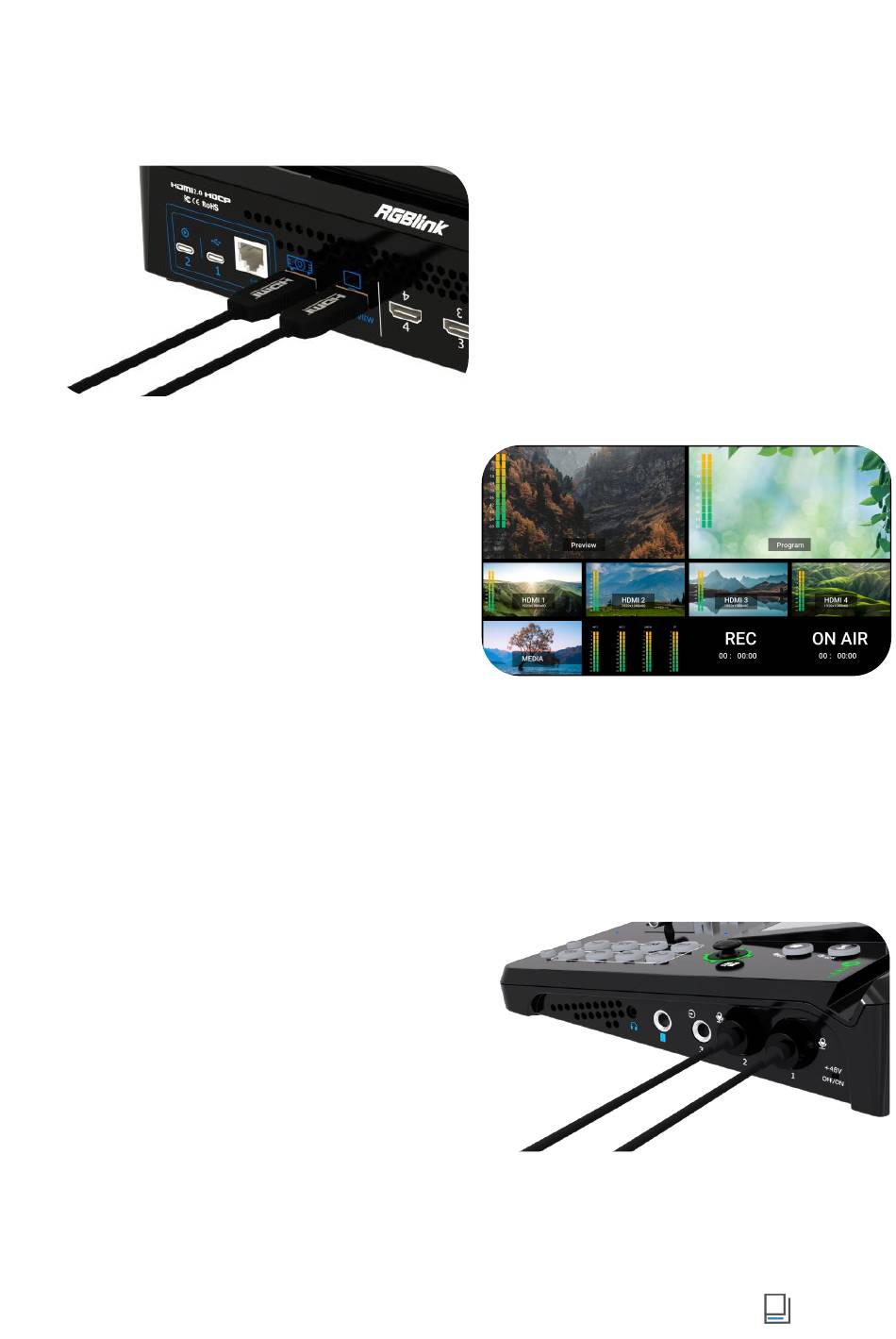

Connect HDMI Output
Connecting Monitors
mini-mx features two HDMI output ports.
Use HDMI cables to connect MULTI-VIEW and
PROGRAM ports to a monitor so as to check PVW
and PGM views in real time.
13
