Getting Started with mini-mx

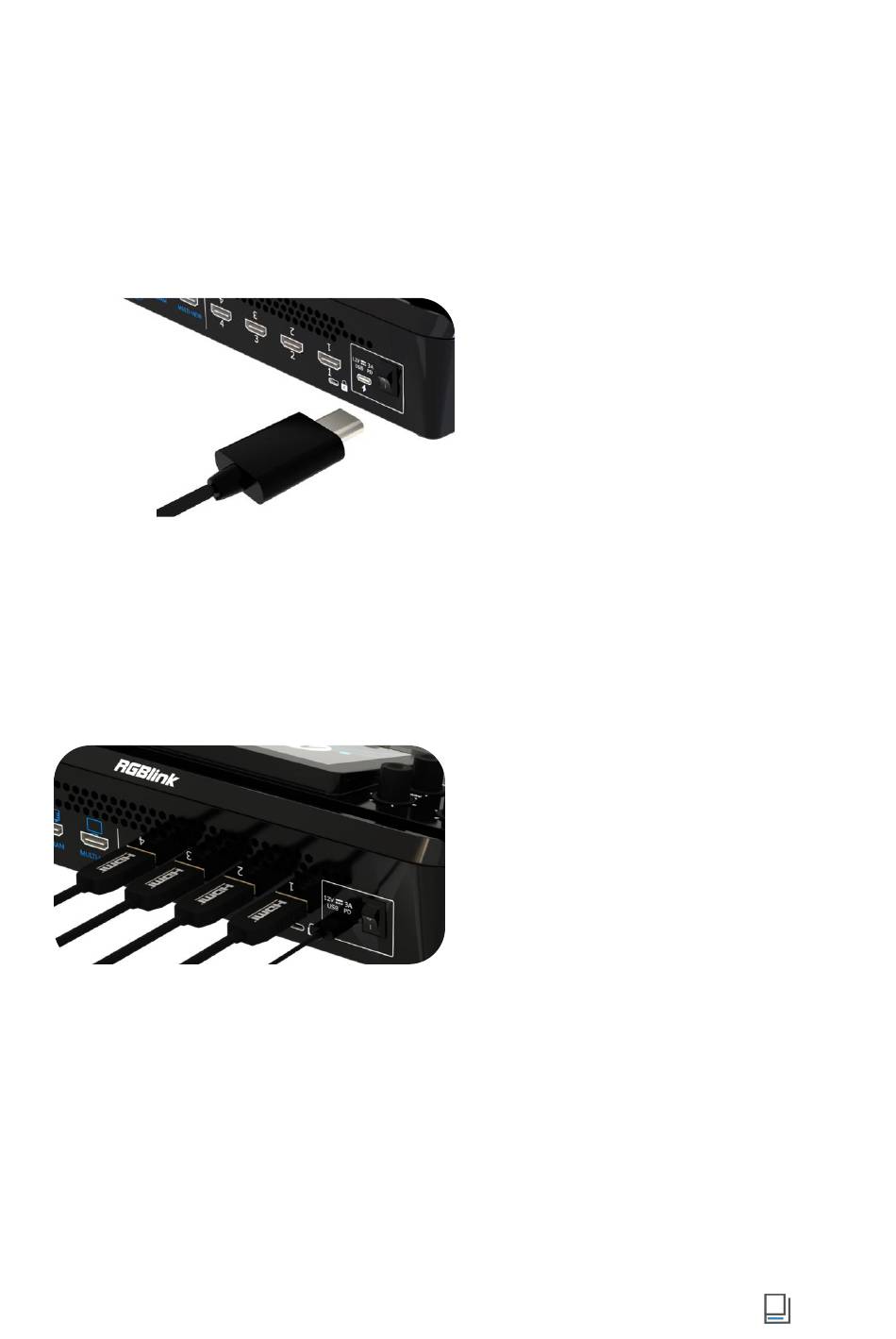

Plug in Power
Powering mini-mx
RGBlink mini-mx is packaged with a PD power
adapter (power cable included) , check the power
supply standard used in your country/region before
power connection.
Push the power switch on the rear panel, the touch
screen will enter the operation interface.
Connect HDMI Input
Connecting HDMI Signal
Use any camera, computer or other HDMI device as
the input source to mini-mx.
For example, use HDMI cables to connect 4 PTZ
cameras to HDMI input ports. Please refer to PTZ
Control chapter for more description.
12
www.rgblink.com
