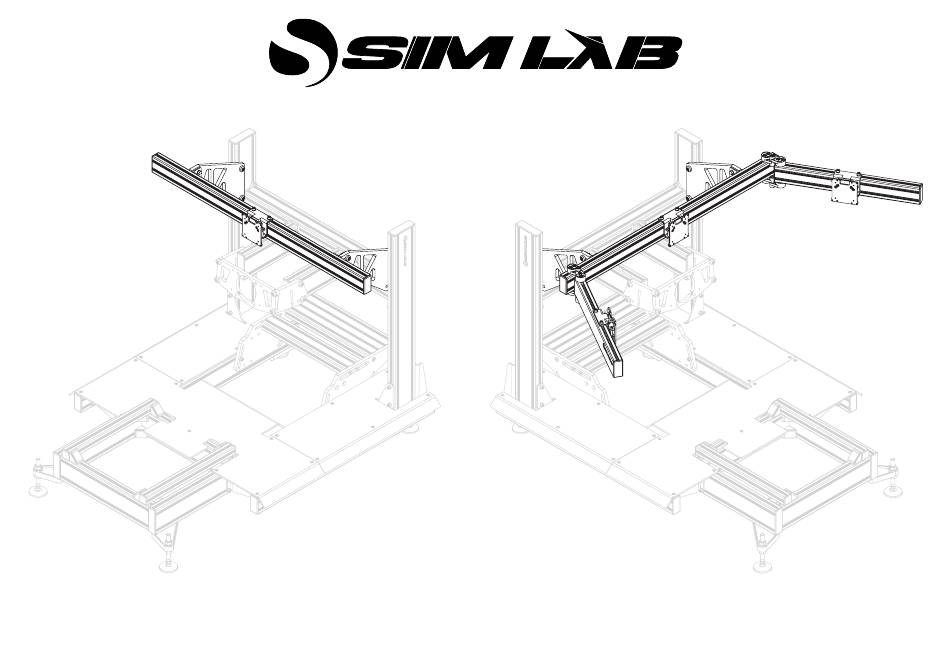

- Page 1 INSTRUCTION MANUAL X1-PRO INTEGRATED MONITOR MOUNT SINGLE/TRIPLE VERSION 1.2 Last updated: 11-09-2023...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 12) and make sure all the parts are delivered. - Page 3 1195MM Corner Washer M8 Profile 80X40 M8 X 16 Slot-Nut M8 End-Cap Bracket 183MM 7.2” 3 13...
- Page 4 Monitor Side Cap-Washer M8 X 35 Washer M8 Washer M8 Lock-Nut M8 Nut Cap M8 Plate (DIN 988) (A10) 4 13...
- Page 5 Cap-Washer M8 X 30 Washer M8 Slot-Nut M8 (DIN 988) 5 13...
- Page 6 Vario VESA M8 X 16 Washer M8 Slot-Nut M8 See page 11 to assemble the Holder other side of the Vario VESA. If you purchased the ‘Triple Upgrade’, please continue on the next page. 6 13...
- Page 7 Pivot M8 X 25 Slot-Nut M8 Adapter Depends on monitor size and intended angle. 7 13...
- Page 8 Pivot Profile 80X40 M8 X 25 Slot-Nut M8 End-Cap (LEFT) Adapter BUILD 2X Instructions for the right side (B2) are similar. See page 10 for the orientation of the profile. * Mind the orientation of the Slot-Nuts. 8 13...
- Page 9 M8 X 40 Nut M8 120° Adjust arm angles to your preference. We included markings in the pivots. Markings are placed in 10° increments. 9 13...
- Page 10 Vario VESA M8 X 16 Washer M8 Holder 10 13...
- Page 11 Vario VESA Vario VESA Vario VESA M8 X 40 M5 X 20 M5 X 20 Plate Pin Holder (Set Screw) (Set Screw) When parts D9 and D10 are installed like above, monitors are easy to install in a neutral position. Parts D9 can be adjusted to change the tilt and/or height.
- Page 12 BOX A - SINGLE MONITOR MOUNT BOX C - Xero-Play triple pivot set PROFILE KIT HARDWARE KIT Part QTY Note Part QTY Note 80X40 Length=1195mm Xero-Play triple pivot adapter HARDWARE KIT Bolt M8 X 40 DIN 912 Bolt M8 X 25 DIN 912 Monitor side plate Nut M8 Integrated monitor corner bracket...
- Page 13 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
