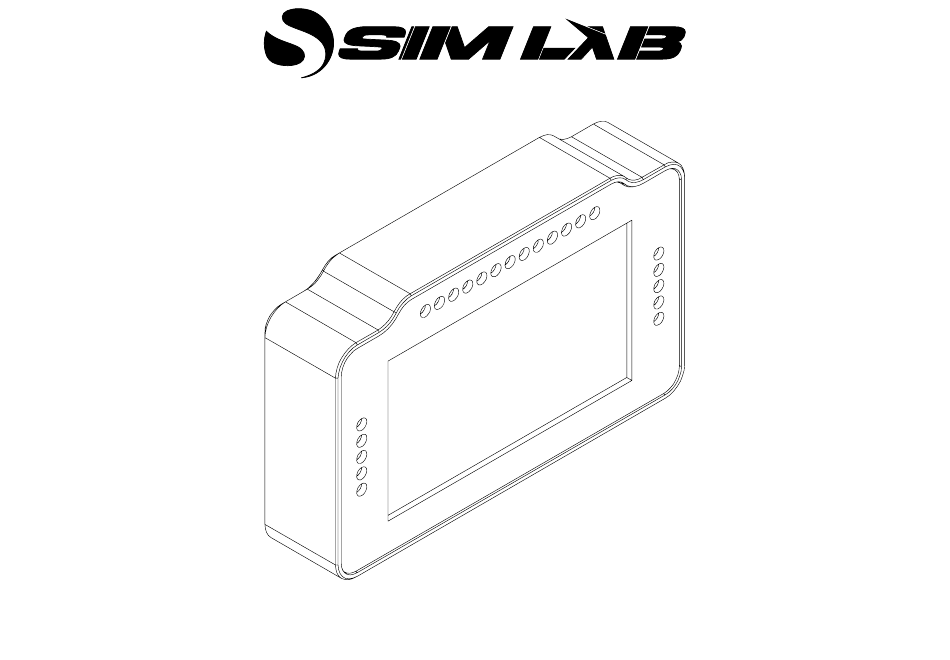

INSTRUCTION MANUAL
DASH SD43 LED
VERSION 1.0
Last updated: 16-03-2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the DASH SD43 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sim-Lab DASH SD43 LED

Summary of Contents for Sim-Lab DASH SD43 LED

  • Page 1 INSTRUCTION MANUAL DASH SD43 LED VERSION 1.0 Last updated: 16-03-2022...

  • Page 2: Before You Start

    BEFORE YOU START: Thank you for your purchase. In this manual we will provide you with the means to get started using your new dash! Dash SD43 LED Features: 4.3” 480x272 Pixel color TFT LCD USBD 480 23 full RGB leds...
  • Page 3 Mounting the dash OSW/Simucube/VRS To be able to mount the dash on the hardware of your choice, we provide adapter Loosen the existing upper bolts which hold the motor in place. Simply slide the plates. Which one you have will depend on your purchase and may different from adapter plate over the exposed thread and tighten the bolts against the plate.
  • Page 4 Fanatec DD1/DD2/CSL Fanatec CSW Locate the accesory mounting holes on your Fanatec hardware and use the two Although the regular Fanatec adapter plate can be fitted, we prefer this one because bolts (A4) and washers (A6) from our supplied hardware kit. it offsets the dash from the steering wheel.

  • Page 5: Installing Drivers

    Installing drivers To make the display part of the dash functional, specific drivers are needed. Drivers Specify the location where to install the drivers: can be downloaded from the product page. > download drivers < Installation To install the display drivers, run the downloaded package and follow these steps: Press ‘Install’.
  • Page 6 SimHub installation To control the LEDs of the dash, Simhub can be used. Specify the location where to install the software: Download the lastest version of Simhub from https://simhubdash.com Installation Unzip the downloaded file and run the setup file: Press ‘Next’. Make sure all options are checked: Press ‘Next’.
  • Page 7 SimHub configuration If you haven’t connected the dash with the supplied USB cable to your computer, this is required from this point forward. Activation To use the display with SimHub, it needs to be enabled: Press ‘Install’. Press ‘Dash Studio’ (1). After installation press ‘Finish’.
  • Page 8 Press ‘USBD480’ (2). Hover over the dashboard you want to display and select ‘Start’. In the ‘Screen #1’ section, check ‘Enable display’ (3). The ‘Connected’ indicator will appear on its right hand side. When the screen is connected, go back to ‘Dashboards’...
  • Page 9 Controlling the LEDs A sample LED profile can be downloaded from the product page. Click on the import profile icon (3). > download led profile < To enable or adjust LEDs, navigate back to the ‘USBD480’ page in ‘Dash Studio’. You may also refer to Pages 5/6 of this document.

  • Page 10: Bill Of Materials

    Bill of materials Changing the LEDs’ functions. To change the LED effects you need to now the LED numbering of the dash. The numbering starts at the bottom left and continues clockwise to the bottom right. See the image below for reference: 15 16 IN THE BOX Part...
  • Page 11 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
