Sim-Lab X1-PRO COCKPIT Instruction Manual

Hide thumbs Also See for X1-PRO COCKPIT:

Advertisement

Table of Contents

INSTRUCTION MANUAL
X1-PRO COCKPIT
VERSION 1.5
Last updated: 05-10-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1-PRO COCKPIT and is the answer not in the manual?

Questions and answers

Related Manuals for Sim-Lab X1-PRO COCKPIT

Summary of Contents for Sim-Lab X1-PRO COCKPIT

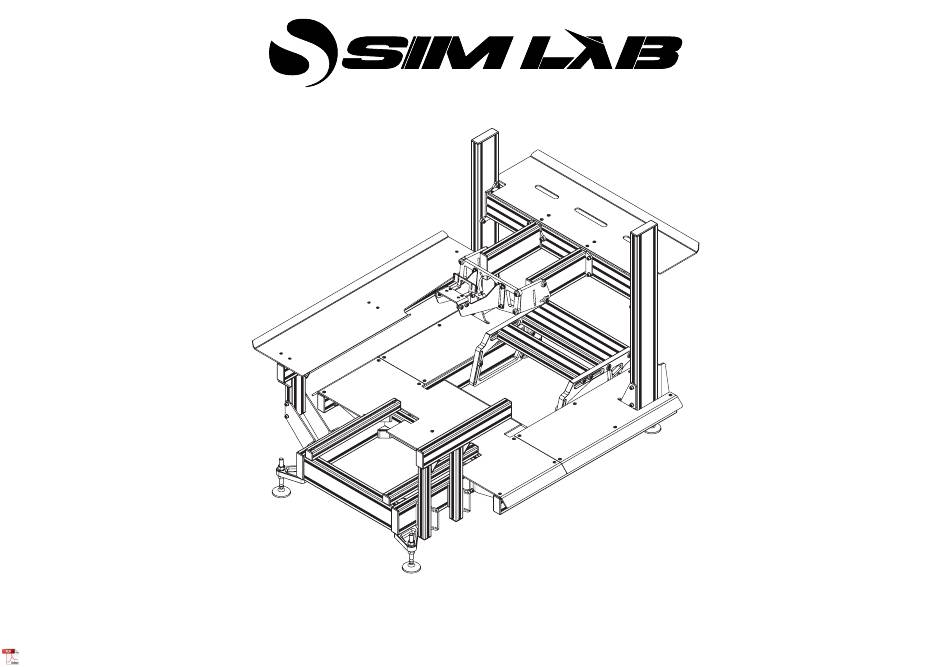

  • Page 1 INSTRUCTION MANUAL X1-PRO COCKPIT VERSION 1.5 Last updated: 05-10-2023...

  • Page 2: Before You Start

    BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (pages 41-43) and make sure all the parts are delivered.
  • Page 3 1350MM Slot-Nut M8 A12/C6 4X/4X BUILD 2X 3 44...
  • Page 4 500MM Slot-Nut M8 BUILD 2X 4 44...
  • Page 5 Corner M8 X 16 Washer M8 Only fully tighten bolts until after Bracket the pedal tray has been fitted. 500MM 20” 5 44...
  • Page 6 Foot Foot Nut M16 Washer M16 Foot Foot Nut M16 Washer M16 BUILD Support Plate Support Plate BOTH VERSIONS 6 44...
  • Page 7 Profile 120x40 Corner Bracket M8 X 25 End-Cap 7 44...
  • Page 8 500MM Profile 40X40 M8 X 40 Washer M8 Slot-Nut M8 End-Cap (DIN 988) 8 44...
  • Page 9 Slot-Nut M8 9 44...
  • Page 10 470MM 470MM Pedal Deck Cap-Washer M8 X 30 Washer M8 Bracket (DIN 988) 10 44...
  • Page 11 Cap-Washer M8 X 40 Washer M8 (DIN 988) 11 44...
  • Page 12 Upright Upright Upright Upright M8 X 16 Washer M8 Slot-Nut M8 Bracket LF Bracket RF Bracket LR Bracket RR 12 44...
  • Page 13 950MM Profile 120x40 Slot-Nut M8 End-Cap BUILD 2X 13 44...
  • Page 14 M8 X 16 Washer M8 14 44...
  • Page 15 848MM B9.A B9.B M8 X 20 Slot-Nut M8 LEFT RIGHT B9.A B9.B 15 44...
  • Page 16 M8 X 20 Washer M8 Slot-Nut M8 16 44...
  • Page 17 1000MM Profile 80X40 Slot-Nut M8 End-Cap BUILD 2X 17 44...
  • Page 18 Floor Support Floor Support M8 X 16 Washer M8 Slot-Nut M8 RIGHT (E5) LEFT (E4) 18 44...
  • Page 19 Floor M6 X 16 Slot-Nut M6 19 44...
  • Page 20 Floor Left Floor Right M6 X 16 Slot-Nut M6 *For easier installation, temporarily remove these bolts (4) on either side. 20 44...
  • Page 21 260MM Profile 120x40 Sandwich M8 X 20 Slot-Nut M8 End-Cap 120x40 BUILD 2X 21 44...
  • Page 22 Front Mount Cap-Washer M8 X 30 Washer M8 Side Plate (DIN 988) 22 44...
  • Page 23 Front Mount Cap-Washer M8 X 30 Washer M8 (DIN 988) 23 44...
  • Page 24 M8 X 20 Washer M8 24 44...
  • Page 25 DDU Mount DDU Mount M5 X 16 Washer M5 Lock-Nut M5 DDU Mount Bracket Bridge 25 44...
  • Page 26 DDU Mount DDU Mount Cap-Washer M6 X 20 Washer M6 Lock-Nut M6 Holder LEFT Holder RIGHT 26 44...
  • Page 27 M8 X 20 Washer M8 The DDU mount expects our Steering Wheel Extension (K1) to be fitted. 27 44...
  • Page 28 Wheel Deck M8 X 20 Washer M8 The wheel deck is not compatible with the DDU Mount. 28 44...

  • Page 29: Side Mount

    500MM Profile 80X40 Slot-Nut M8 Side Mount End-Cap 29 44...
  • Page 30 350MM Profile 40X40 Corner M8 X 16 Washer M8 Washer M8 Slot-Nut M8 End-Cap Bracket BUILD 2X 30 44...
  • Page 31 Side Mount M8 X 20 M8 X 16 Washer M8 Slot-Nut M8 Bracket (H10) (H9) 31 44...
  • Page 32 Corner Bracket M8 X 20 Washer M8 Slot-Nut M8 The Side Mount can also be fitted on the left side by simply rotating the mounting brackets. 32 44...
  • Page 33 1100MM Profile 80X40 Corner M8 X 16 Washer M8 Slot-Nut M8 Side Table End-Cap Bracket 33 44...
  • Page 34 550MM Profile 80X40 Corner M8 X 16 Washer M8 Slot-Nut M8 End-Cap Bracket 34 44...
  • Page 35 Side Table Side Table M8 X 16 Washer M8 Slot-Nut M8 Bracket LEFT Bracket RIGHT 35 44...
  • Page 36 Corner Bracket M8 X 16 Washer M8 Slot-Nut M8 The Side Table is also available in a ‘Right’ version. Assembly is very much the same as shown. 36 44...
  • Page 37 Side Table M6 X 16 Slot-Nut M6 Lock-Nut M6 The additional bolts and nuts are just ‘vanity parts’ to plug the otherwise empty holes. 37 44...
  • Page 38 Shelf Shelf M6 X 16 Slot-Nut M6 38 44...
  • Page 39 Wheel Deck compatibility Fanatec Thrustmaster Logitech Simagic M10 39 44...
  • Page 40 Accuforce V1 Accuforce V2 MOZA Racing 40 44...

  • Page 41: Hardware Kit

    BOX A - X1-Pro Base Part QTY Note PROFILE KIT Front mount Part QTY Note Front mount side plate 120X40 Length=1350mm Profile 120x40 end-cap AP2 120X40 Length=500mm Profile 80x40 end-cap AP3 40X40 Length=500mm Bolt M8 X 30 DIN 912 HARDWARE KIT Bolt M8 X 20 DIN 912 Bolt M8 X 16 DIN 912 Corner bracket 40x40...
  • Page 42 BOX C - Sim Feet BOX E - Floor HARDWARE KIT HARDWARE KIT Part QTY Note Part QTY Note Foot support plate Floor Foot Threaded ball-joint rod fitted. Floor LEFT Bolt M8 X 25 DIN 912 Floor RIGHT Washer M16 DIN 125-A Floor support LEFT Nut M16 4 pre-fitted.
  • Page 43 BOX G - Wheel Deck BOX I - Side Table (optional purchase) (optional purchase, left or right version) HARDWARE KIT HARDWARE KIT Part QTY Note Part QTY Note Wheel deck Side table Bolt M8 X 20 DIN 912 Side table bracket LEFT Bolt M8 X 16 DIN 912 Extra.
  • Page 44 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
