Sim-Lab PODIUM BRACKET SET Instruction Manual

INSTRUCTION MANUAL

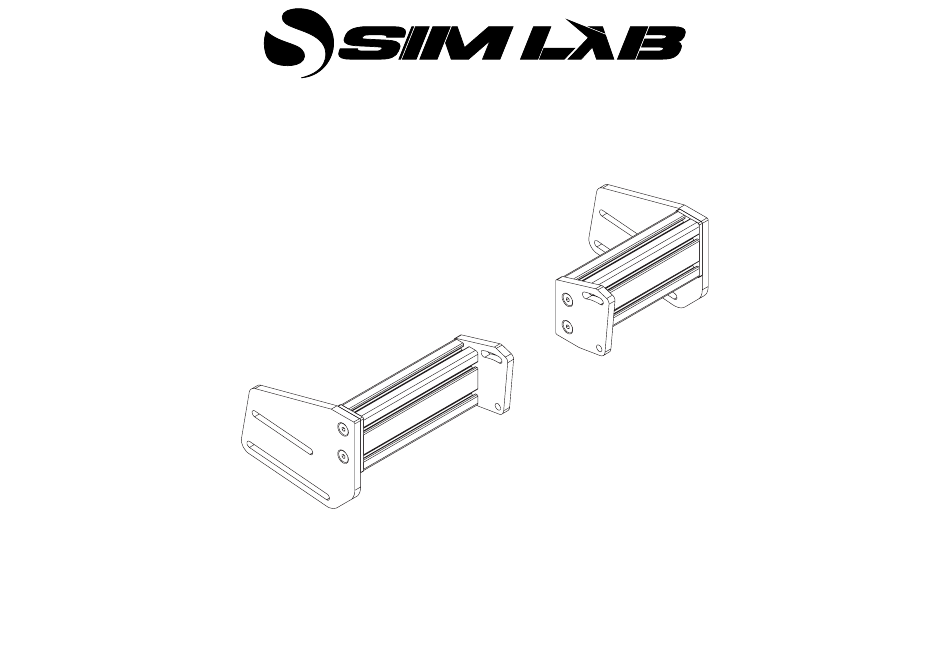

PODIUM BRACKET SET

VERSION 1.0

Last updated: 09-06-2023

Table of Contents

Need help?

Do you have a question about the PODIUM BRACKET SET and is the answer not in the manual?

Page 1 INSTRUCTION MANUAL PODIUM BRACKET SET VERSION 1.0 Last updated: 09-06-2023...
Page 2 Depending on the hardware used, assembly might differ. When used with the CSL-DD/DD-Pro, use the spacers as indicated on page 4. Example installation is shown on a P1-X, however this Podium Bracket Set is also compatible with the GT1-EVO. For a GT1-EVO OLDER than 2020, compatibility has been dropped.
Page 3 Side Mount Side Mount Side Mount Side Mount M8 X 20 Profile Holder Left Profile Holder Right Base Holder Left Base Holder Right (A10) INSTRUCTIONS FOR FANATEC DD1/DD2 CONTINUE ON PAGE 5...
Page 4 Side Mount Side Mount Side Mount Side Mount Side Mount M8 X 25 M8 X 20 Profile Holder Left Profile Holder Right Spacer Base Holder Left Base Holder Right (A9) (A10) INSTRUCTIONS FOR FANATEC CSL-DD/DD-PRO CONTINUE ON PAGE 5...
Page 5 M8 X 20 Washer M8 EXAMPLE ON P1-X (A7) (A12)
Page 6 PODIUM BRACKET SET PROFILE KIT 80X40 Threaded M8 HARDWARE KIT Side mount spacer Use with CSL-DD/DD-PRO. Side mount base holder LEFT Side mount base holder RIGHT Side mount profile holder LEFT Side mount profile holder RIGHT Bolt M8 X 20 DIN 912...
Page 7 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
