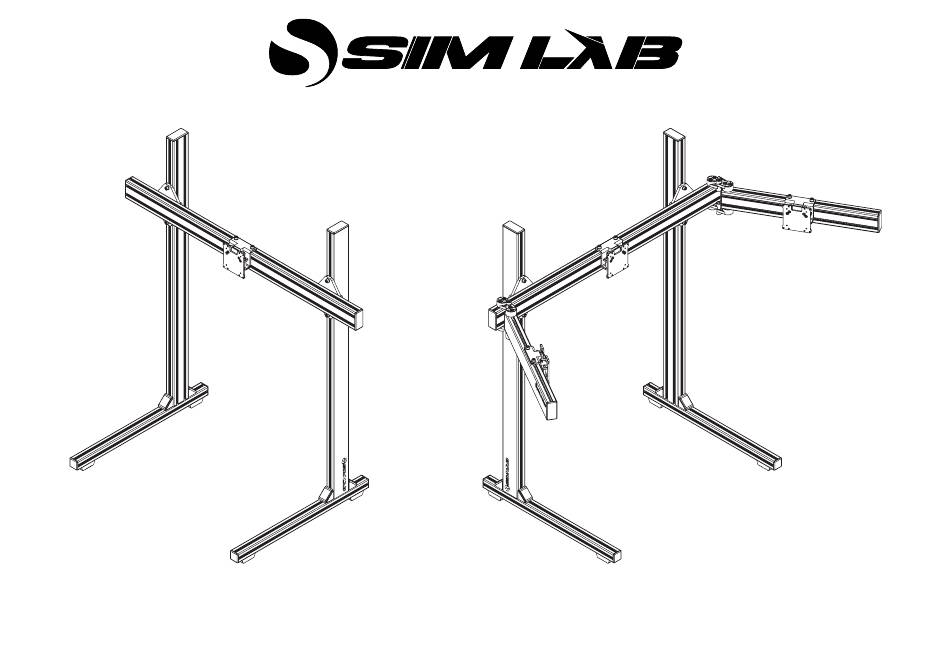

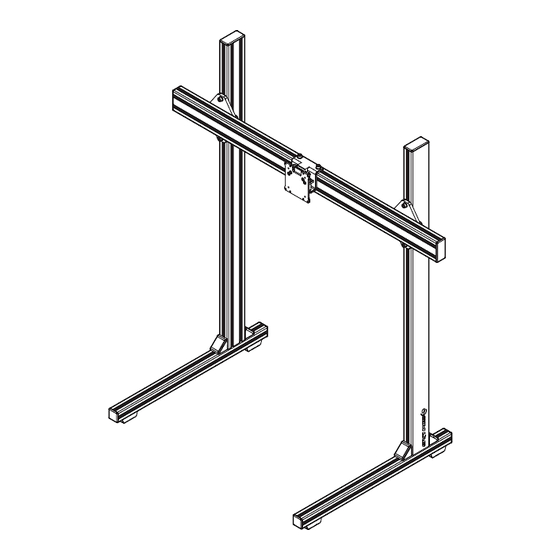

- Page 1 INSTRUCTION MANUAL FREESTANDING VARIO™ MONITOR MOUNT SINGLE/TRIPLE VERSION 2.0 Last updated: 11-09-2023...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 14) and make sure all the parts are delivered. - Page 3 Rubber M8 X 20 Slot-Nut M8 Profile 40X40 End-Cap Foot BUILD 2X 76MM 3” 25MM 1” 3 15...
- Page 4 Corner Washer M8 Profile 80X40 M8 X 16 Slot-Nut M8 End-Cap (LEFT) Bracket BUILD 2X Instructions for the right side (A3) are similar. See page 7 for the orientation of the profile. 4 15...
- Page 5 Washer M8 M8 X 16 BUILD 2X 5 15...
- Page 6 Sandwhich Washer M8 Profile 80X40 M8 X 20 Slot-Nut M8 End-Cap Plate 80 6 15...
- Page 7 Washer M8 M8 X 20 7 15...
- Page 8 Vario VESA M8 X 16 Washer M8 Corner Bracket Slot-Nut M8 Holder If you purchased the ‘Triple Upgrade’, please continue on page 10. 8 15...
- Page 9 Vario VESA Vario VESA Vario VESA M8 X 40 M5 X 20 M5 X 20 Plate Pin Holder (Set Screw) (Set Screw) When parts D9 and D10 are installed like above, monitors are easy to install in a neutral position. Parts D9 can be adjusted to change the tilt and/or height.
- Page 10 Pivot M8 X 25 Slot-Nut M8 Adapter 10 15...
- Page 11 Pivot Profile 80X40 M8 X 25 Slot-Nut M8 End-Cap (LEFT) Adapter BUILD 2X Instructions for the right side (B2) are similar. See the next page for the orientation of the profile. * Mind the orientation of the Slot-Nuts. 11 15...
- Page 12 M8 X 40 Nut M8 120° Adjust arm angles to your preference. We included markings in the pivots. Markings are placed in 10° increments. 12 15...
- Page 13 Vario VESA M8 X 16 Washer M8 Slot-Nut M8 Holder 13 15...
- Page 14 BOX A - VARIO SINGLE MONITOR MOUNT BOX C - Xero-Play triple pivot set PROFILE KIT HARDWARE KIT Part QTY Note Part QTY Note 80X40 Length=1195mm Xero-Play triple pivot adapter 80X40 3N Length=1195mm Left upright, engraved. Bolt M8 X 40 DIN 912 80X40 3N Length=1195mm Right upright, engraved.
- Page 15 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
