INSTRUCTION MANUAL

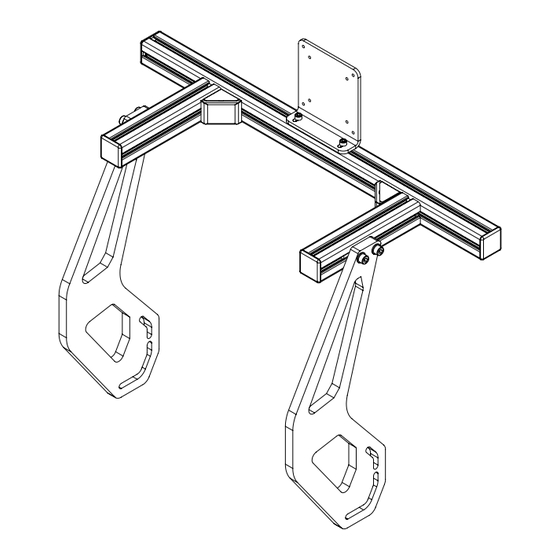

INTEGRATED MONITOR MOUNT VESA 75/100

VERSION 2.0

Last updated: 05-11-2021

Need help?

Do you have a question about the VESA 75/100 and is the answer not in the manual?

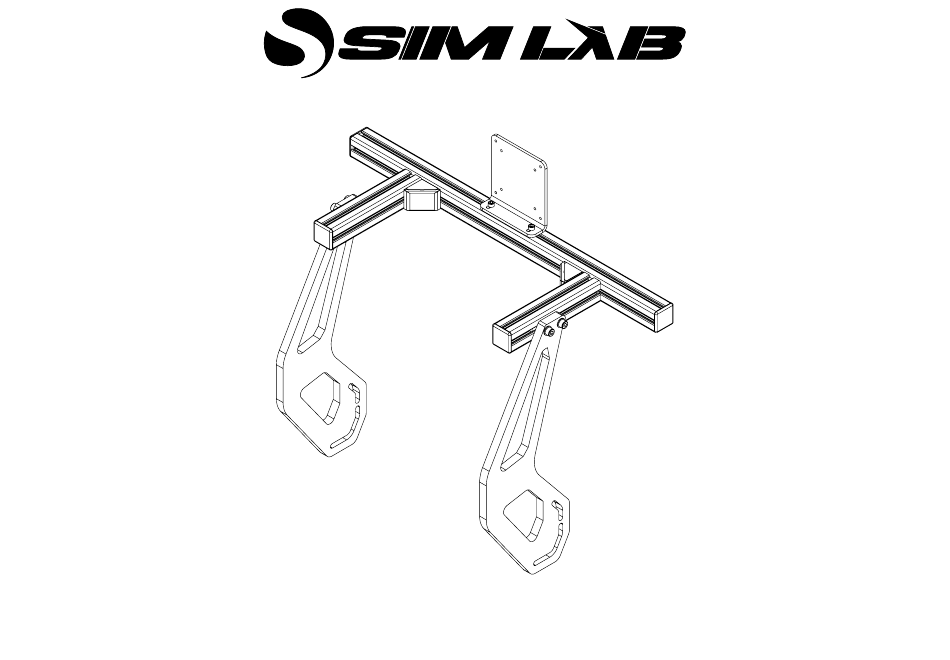

Page 1 INSTRUCTION MANUAL INTEGRATED MONITOR MOUNT VESA 75/100 VERSION 2.0 Last updated: 05-11-2021...
Page 2 BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (page 10) and make sure all the parts are delivered.
Page 3 680MM Slot-Nut M8 Slot-Nut M6 (A15) (A16) 3 10...
Page 4 200MM Slot-Nut M8 4 10...
Page 5 Corner M8 X 16 Washer M8 Bracket 5 10...
Page 6 VESA M6 X 16 Corner Bracket Profile End-Cap 6 10...
Page 7 M8 X 25 Washer M8 Monitor Bracket 7 10...
Page 8: Hardware Kit
PROFILE KIT Part QTY Note 40X40 Length=680mm 40X40 Length=200mm HARDWARE KIT VESA bracket L-shape Integrated monitor bracket Corner bracket 40x40 Corner bracket 40x40 cap Profile 40x40 end-cap Bolt M8 X 25 DIN 912 Bolt M8 X 16 DIN 912 Bolt M6 X 16 DIN 912 Washer M8 DIN 125-A Screw Philips M4 X 16 DIN 7985 Extra...
Page 9 Mounting suggestion: We advise to divide three bolts over two profile slots. 9 10...
Page 10 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) https://discord.gg/Myj4c8dZ...
