TR300 TREADMILL
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR300 and is the answer not in the manual?

Questions and answers

Related Manuals for Xterra TR300

Summary of Contents for Xterra TR300

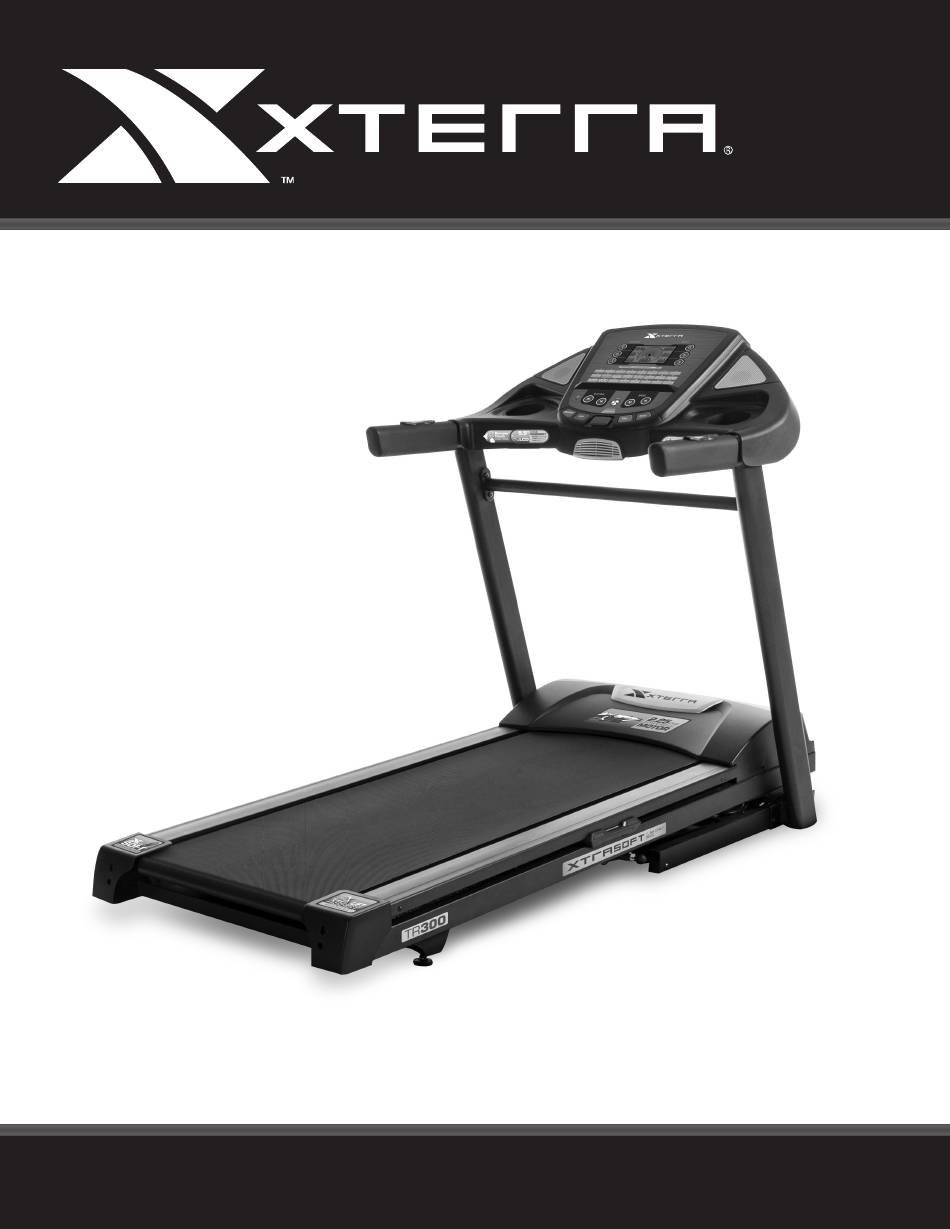

  • Page 1 FITNESS TR300 TREADMILL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...

  • Page 2: Table Of Contents

    Table Of Contents Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions TR300 Assembly Instructions Operation of Your Console Programmable Features Heart Rate General Maintenance Manufacturer’s Limited Warranty ATTENTION THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION.

  • Page 3: Product Registration

    Congratulations On Your New Treadmill and Welcome to the XTERRA Fitness Family! Thank you for your purchase of this quality treadmill from XTERRA Fitness. Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.

  • Page 4: Important Safety Instructions

    • The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general. TR300 Treadmill...

  • Page 5: Important Electrical Instructions

    Whenever the adapter is used, it must be held in place by a metal screw. TR300 Treadmill...

  • Page 6: Important Operation Instructions

    • NEVER mount or dismount the treadmill while the belt is moving. XTERRA Fitness treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.
  • Page 7 TR300 Assembly Pack Checklist Hardware Steps 2 #99. 5/16” x 1/2” #100. Ø5/16” x Ø18 x 1.5T Hex Head Bolt Flat Washer (8 pcs) (8 pcs) Hardware Steps 3 Hardware Steps 4 #125. 5/16” x 3/4” #80.M8 x 1.5T #125. 5/16” x 3/4”...

  • Page 8: Tr300 Assembly Instructions

    TR300 Assembly Instructions Main Base Frame 1. Remove all the parts from the carton and lay the Main Base Frame on a flat level surface. Uprights & Cables Hardware Step 2 #99. 5/16” x 1/2” Hex Head Bolt (8 pcs) #100.
  • Page 9 Assembly (21) into place on the Left and Right Uprights (4) and (5). Secure with four Button Head Socket Bolts (125) and four Split Washers (80) by using the combination M5 Allen Wrench and Phillips Head Screw Driver (102) to tighten. TR300 Treadmill...
  • Page 10 Button Head Socket Bolt (4 pcs) 1. Install Console Mast Support (9) between Left and Right Uprights (4) and (5). Use the combination M5 Allen Wrench and Phillips Head Screw Driver (102) to tighten four Button Head Socket Bolts (125). TR300 Treadmill...
  • Page 11 Follow the procedures listed in the Treadbelt Tracking Adjustment Section near the end of this manual to make the proper adjustments. 3. Please preform the calibration procedure found in the General Maintenance section on page 19. TR300 Treadmill...
  • Page 12 *At the rear roller area to relieve pressure on the locking system. Transportation Instructions The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away. TR300 Treadmill...

  • Page 13: Operation Of Your Console

    Operation of Your Treadmill TR300 Console Audio Input Large LCD Convenient water Jack for with feedback Integrated bottle holder and customized Turbo Fan to and scrolling Speakers for cargo compartment MP3 player listening keep you cool message center for phone or MP3 player...
  • Page 14 Press and hold the Incline 5/6 keys on the left hand side (console or handgrip) to achieve desired level of effort. You may also choose a quicker incline change by using the Incline keys on the left side of the console. • The display will indicate incline position as adjustments are made. TR300 Treadmill...
  • Page 15 (about as much as your television when it is turned off). 2. Remove tether cord. 3. Turn off the main switch on the front of the treadmill, below the motor cover. TR300 Treadmill...
  • Page 16 Preset Program Profiles Key: Speed Incline TR300 Treadmill...

  • Page 17: Programmable Features

    Programmable Features The TR300 Treadmill provides 24 programs (P1,P2,P3……P24). Fourteen of them (P1-P14) have only preset speed program while the last 10 (P15-24) have combinational speed and incline both programmed. Be aware of the last 10 programs which are designed for the ad- vanced users so that children under age of 16 are not recommended.

  • Page 18: Heart Rate

    A definition of the lines’ goal is in the bottom left-hand cor- ner of the chart. Whether your goal is weight loss or cardiovascular fitness, it can be achieved by training between 60% and 80% of your MHR. Consult your physician before participating in any exercise program. TR300 Treadmill...
  • Page 19 RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. TR300 Treadmill...

  • Page 20: General Maintenance

    - located under the motor cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. TR300 Treadmill...
  • Page 21 ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the XTERRA Fitness warranty. Calibration Procedure To start calibration, hold the Enter button, while installing the safety key. Calibration procedures: The message window will ask to adjust the wheel size for calibration.
  • Page 22 Drag the garment the length of the entire belt 1-2 times. Remove the garment. Do not lubricate with anything other than XTERRA Fitness approved lubricant. Your treadmill comes with one tube of “Lube” and extra tubes can be ordered directly from www.xterrafitness.com.
  • Page 23 3. Plug is disconnected. Make sure plug is firmly pushed into 115 VAC wall outlet. 4. Breaker panel circuit breaker may be tripped. 5. Treadmill defect. Contact XTERRA Fitness. Tread-belt does not stay centered The user may be walking while favoring or putting more weight on either the left or right foot.
  • Page 24 E1: Treadmill stops when there is no speed signal received 10 secons after start. E2: Over the rated current. The controller is over the rated current for 3 seconds. E3: Incline Error. E4: Motor voltage surge or motor is disconnected. E5: Communicaiton is disconnected. E6: Power malfunction. TR300 Treadmill...

  • Page 25: Manufacturer's Limited Warranty

    Effective March 13, 2021 - TREADMILL LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent...
  • Page 26 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com ©2021 All Rights Reserved. TR300 Owner’s Manual...
