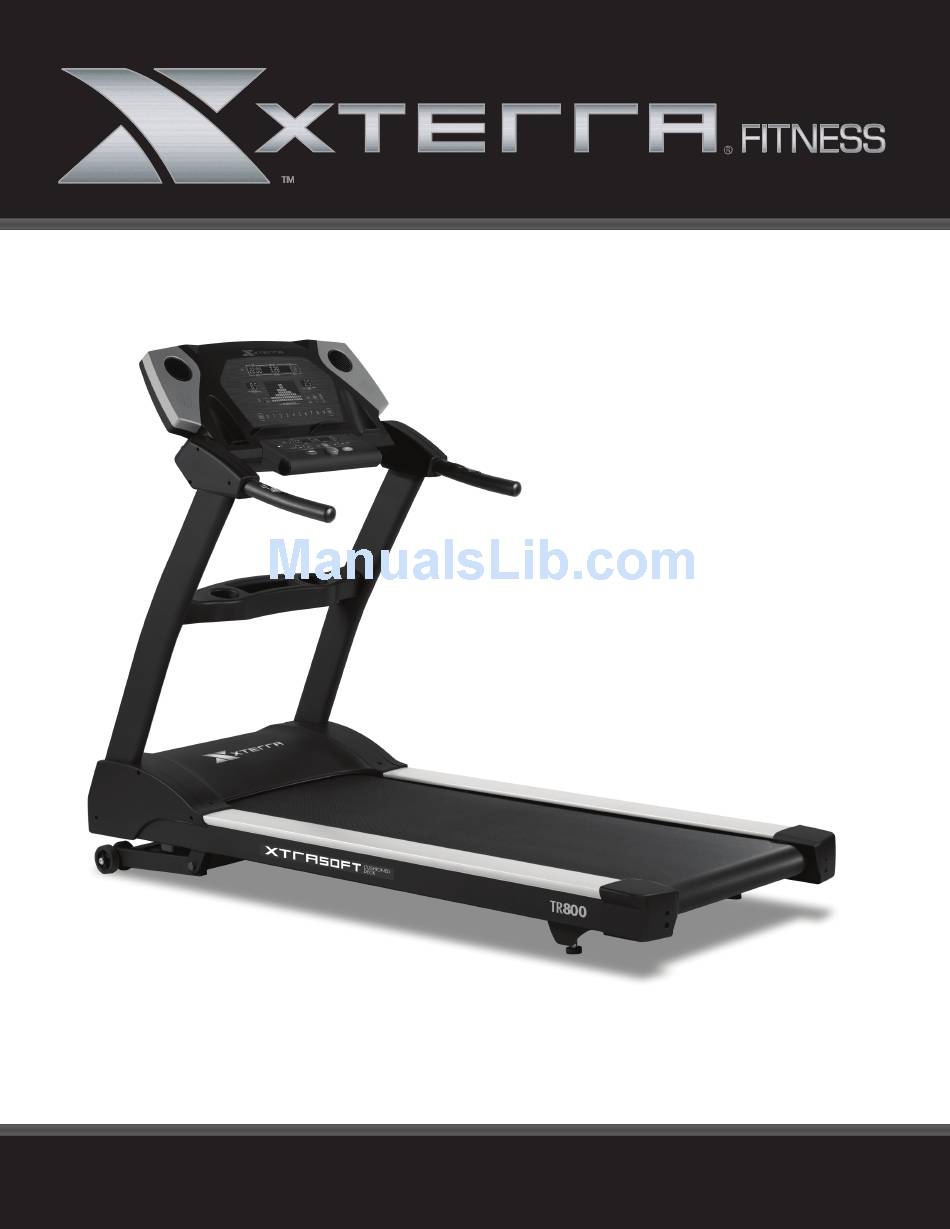

- Page 1 TR800 TREADMILL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...
-
Page 2: Table Of Contents
Table Of Contents Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions TR800 Assembly Instructions Operation of Your Console Programmable Features Heart Rate General Maintenance Manufacturer’s Limited Warranty ATTENTION THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. -
Page 3: Product Registration
Congratulations On Your New Treadmill and Welcome to the XTERRA Fitness Family! Thank you for your purchase of this quality treadmill from XTERRA Fitness. Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. -
Page 4: Important Safety Instructions
Quality athletic shoes are recommended to avoid leg fatigue. Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! TR800 Treadmill... -
Page 5: Important Electrical Information
Whenever the adapter is used, it must be held in place by a metal screw. TR800 Treadmill... -
Page 6: Important Operation Instructions
• NEVER mount or dismount the treadmill while the belt is moving. XTERRA Fitness treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit. -
Page 7: Hardware Step
TR800 Assembly Pack Checklist Hardware Step 1 #102. 5/16” x 15mm #103. 3/8” x 2” #108. Ø10 x 2T Button Head Socket Button Head Socket Bolt Split Washer Bolt (6 pcs) (2 pcs) (2 pcs) #122. Ø10 Star Washer (2 pcs) Hardware Step 2 #101. - Page 8 Bolt (4 pcs) Hardware Step 4 #84. M5 #87. 5 x 16mm #92. 5 x 16mm Speed Nut Clip Tapping Screw Tapping Screw (4 pcs) (2 pcs) (6 pcs) #107. 3.5” x 40mm Sheet Metal Screw (6 pcs) TR800 Treadmill...
-
Page 9: Tr800 Assembly Instructions
TR800 Assembly Instructions Main Base Frame Hardware Step 1 #102. 5/16” x 15mm Button Head Socket Bolt (6 pcs) #103. 3/8” x 2” Button Head Socket Bolt (2 pcs) #108. Ø10 x 2T Split Washer (2 pcs) #122. Ø10 Star Washer (2 pcs) 1. - Page 10 3. Install the Console Support (6) onto the Uprights(L,R)(5,4)with the two Hex Hex Head Bolts (105), two Button Head Socket Bolts (106),four Flat Washers (109), two Star Washers (121) by using the 12m/m Wrench (113) and Combination M5 Allen Wrench & Phillips Head Screw Driver (111). TR800 Treadmill...
- Page 11 2. Install the Beverage Holder (48) onto the Handrail Support (3). 3. Connect the Speed Adjustment Switch W/Cable (38) into the Incline Cable (Upper) (34) and Handpulse Wire (50~1) 4. Connect the Incline Adjustment Switch W/Cable (39) into the Incline Cable (Upper) (35) and Handpulse Wire(50~1). TR800 Treadmill...
- Page 12 (L)(52) into the Right Handgrip Side Cap (L)(54) and Left Handgrip Side Cap (R)(53) with the six Sheet Metal Screws (107) by using the Combination M5 Allen Wrench & Phillips Head Screw Driver (111). 4. Install the Bolt Access Cap (126) into the Handgrip Side Cap. TR800 Treadmill...
-
Page 13: Getting Started
Operation of Your Treadmill TR800 Console Audio Input Jack for Large Amber customized LED Matrix Easy-to-Use listening Window Program Buttons Speakers Cooling Fan Getting Started Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. -
Page 14: Incline Feature
Display button, the Dot matrix will automatically scroll through the two displays show- ing each one for five seconds. The LED associated with each profile will blink while that view is displayed. One more press of the Display button will return you to the Speed profile. TR800 Treadmill... -
Page 15: Pulse Grip Feature
Press the Quick Incline button, then 0, 3 = Incline Level 3 Press the Quick Speed button, then 8, 0 = 8.0 mph or kmph Press the Quick Speed button, then 0, 8 = 0.8 mph or kmph TR800 Treadmill... - Page 16 Preset Program Profiles Hill - Work Hill - Incline Fat Burn - Work Fat Burn - Incline Cardio - Work Cardio - Incline Strength - Work Strength - Incline Interval - Work Interval - Incline TR800 Treadmill...
-
Page 17: Programmable Features
Programmable Features The TR800 offers seven factory preset-programs, two user defined programs and one Manual program. Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The maximum speed that the particular program will achieve will be displayed in the Speed window. -
Page 18: User Programs
Enter to go back one step to reprogram. You are now done programming data and may press Start to begin your workout or Enter to go back one level to change data entered in the programming phase. TR800 Treadmill... - Page 19 ** Remember that you must maintain contact with the sensors or wear the chest strap for the program to work. NOTE: It is recommended that you use the telemetric chest strap to achieve the best results with the heart rate programs. TR800 Treadmill...
-
Page 20: Heart Rate
Whether your goal is weight loss or cardiovascular fitness, it can be achieved by training between 60% and 80% of your MHR. Con- sult your physician before participating in any exercise program. TR800 Treadmill... -
Page 21: Rate Of Perceived Exertion
RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. TR800 Treadmill... - Page 22 5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try wearing the transmitter upside down. Normally the transmitter will be oriented so the XTERRA Fitness logo is right side up.
-
Page 23: General Maintenance
- located under the motor cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. TR800 Treadmill... -
Page 24: Treadbelt Tracking Adjustment
Drag the garment the length of the entire belt 1-2 times. Remove the garment. Do not lubricate with anything other than XTERRA Fitness approved lubricant. Your treadmill comes with one tube of “Lube” and extra tubes can be ordered directly from www.xterrafitness.com. - Page 25 Enter 3. Press the Speed 5 key until “Maintenance” message appears; press Enter 4. To Select “Lube message reset”message appears; Press Enter to reset. 5. Press Stop to exit Engineering mode and resume use of your treadmill. TR800 Treadmill...
- Page 26 If an extension cord is required it should be speed on display as short as possible and heavy duty 16 gauge minimum. Low voltage. Contact an electrician or XTERRA Fitness. A minimum of 110 volt AC current is required. Tread-belt stops quickly/suddenly High belt/deck friction.
-
Page 27: Manufacturer's Limited Warranty
Effective August 1, 2014 - TREADMILL LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent... - Page 28 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com ©2014 All RIghts Reserved. TR800 Owner’s Manual...
