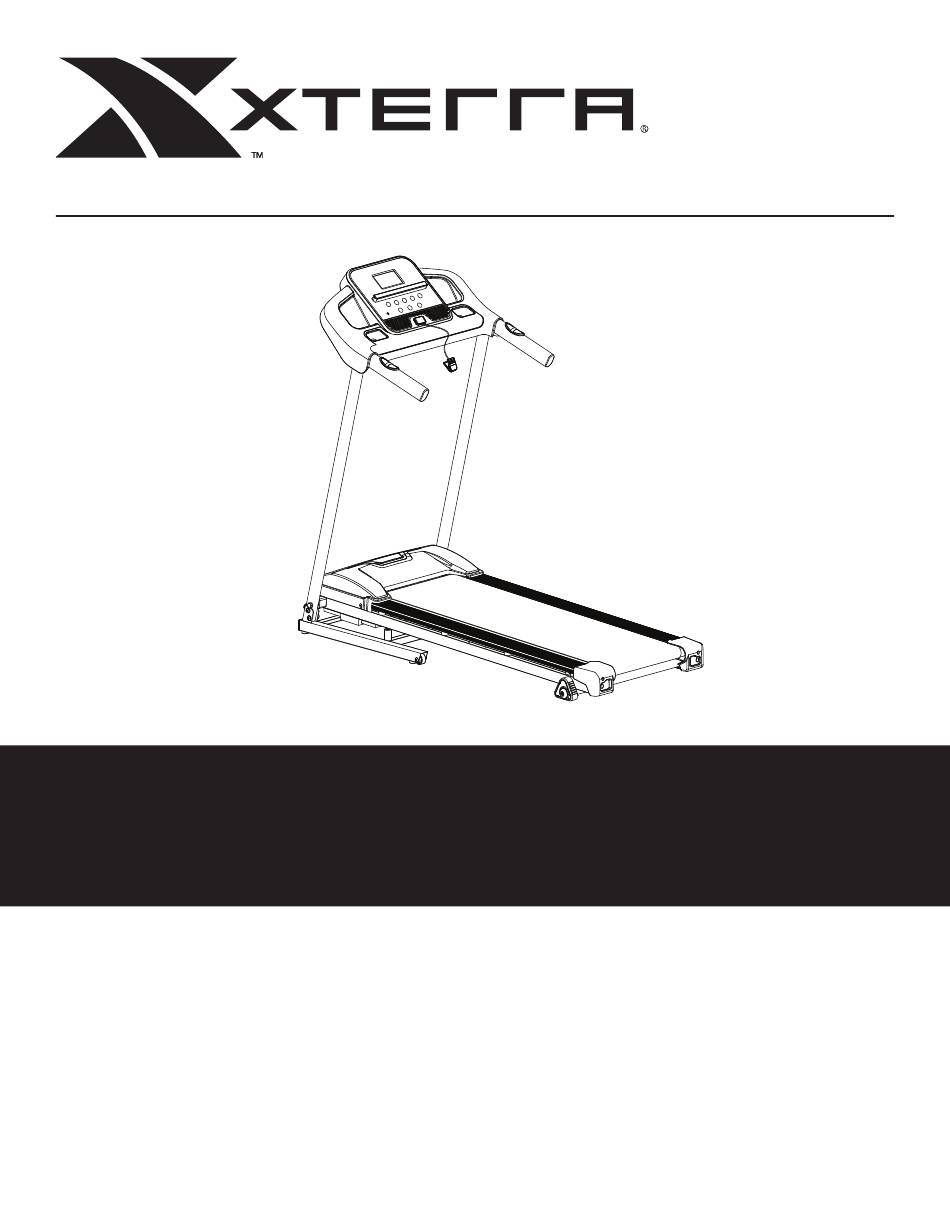

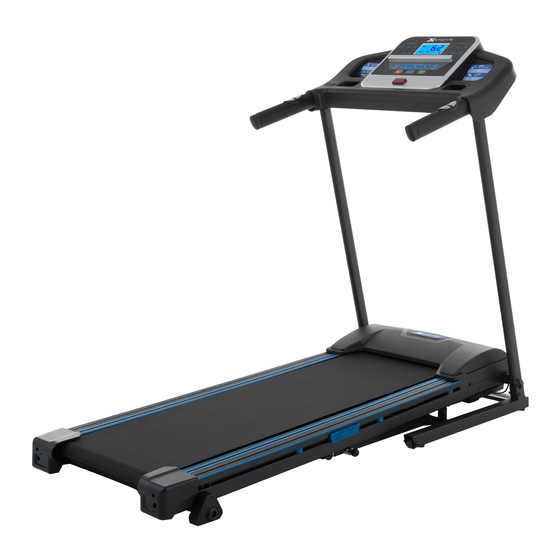

- Page 1 FITNESS GT6C 紙箱線條圖 TR200 TREADMILL Owner’s Manual PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PRODUCT REGISTRATION IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS TR200 ASSEMBLY INSTRUCTIONS OPERATION OF YOUR CONSOLE PROGRAMMABLE FEATURES GENERAL MAINTENANCE TROUBLE SHOOTING MANUFACTURER’S LIMITED WARRANTY ATTENTION THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION. - Page 4 Congratulations On Your New Treadmill and Welcome to the XTERRA Family! Thank you for your purchase of this quality treadmill from XTERRA. Your new treadmill has been man- ufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: •... - Page 6 IMPORTANT ELECTRICAL INFORMATION WARNING NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mecha- nism and transport wheels.
-
Page 7: Important Operation Instructions
• NEVER mount or dismount the treadmill while the belt is moving. XTERRA treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit. - Page 8 TR200 ASSEMBLY PACK CHECKLIST (6pcs) (4pcs)
- Page 9 ASSEMBLY STEP 1 Step 1. HARDWARE No Hardware required for this step 1. Remove the UNIT from the box and put it on a flat and level floor. Step 2. ASSEMBLY STEP 2 HARDWARE No Hardware required for this step NOTE: this step may work better with a second person assisting.
- Page 10 Step 3. ASSEMBLY STEP 3 HARDWARE 98 79 2 Bolt (#96) 2 Split Washer (#98) 2 Flat Washer (#79) 2 Button Head Bolts 94 95 (#94) 2 Curved Washer (#95) 94 95 2 Button Head Bolts (#97) 2 Nyloc Nuts (#68) NOTE: this step may work better with a second person assisting.
- Page 11 ASSEMBLY STEP 4 HARDWARE Step 4. No Hardware required for this step NOTE: this step may work better with a second person assisting. 1. Unfold the CONSOLE to the furthest position.
- Page 12 ASSEMBLY STEP 5 HARDWARE HARDWARE 4 Button Head Bolts (#94) 2 Curved Washers (#95) 2 Flat Washers (#79) 1. Secure the CONSOLE (5) onto the UPRIGHTS (L,R)(4,3) using the COMBINATION WRENCH AND SCREWDRIVER (#104) and 4 BUTTON HEAD BOLTS (#94) and 2 CURVED WASHERS (#95) and 2 FLAT WASHERS (#79).
- Page 13 ASSEMBLY STEP 6 Step 6. HARDWARE 2 Hex Head Bolts (#86) 2 Nyloc Nuts (#68) 1. With the 13/15mm WRENCH (#103) secure 2 HEX HEAD BOLTS (#86) and 2 NYLOC NUTS (#68).
- Page 14 ASSEMBLY STEP 7 Step 7. HARDWARE HARDWARE 2 Phillips Head Screws (#113) 2 Rubber Foot Pads (#114) 1. Lift the deck up until it locks in a fixed position. Using the COMBINATION WRENCH AND SCREWDRIVER tighten 2 SCREWS (#113) and 2 RUBBER FOOT PADS (#114) to the MAIN FRAME (#2) NOTE: Please tighten all screws after assembly is complete.
- Page 15 The treadmill is equipped with two transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away. OPERATION OF YOUR TREADMILL TR200 CONSOLE GETTING STARTED Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood.
- Page 16 QUICK-START OPERATION 1. Attach the Safety key to enable the display (if not already on). 2. Press the Start key to begin belt movement. Adjust to the desired speed using the Speed p and q keys. You may also use the Quick Speed keys 3 through 9 to adjust the speed. 3.
-
Page 17: Programmable Features
Key: Speed PROGRAMMABLE FEATURES The TR200 Treadmill provides 12 programs (P1,P2,P3……P12). Each program has its specific speed variations. To Select and Start a Preset Program 1. Make sure the machine is in the read mode,. Press Program to choose desired program (P1,P2, …..P12), then press and release Start to begin the program with default values. -
Page 18: General Maintenance
GENERAL MAINTENANCE Belt and Deck - Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the area between the frame and 6 - 8” under the belt. This should be done once every other month to extend belt and deck life. - Page 19 Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the XTERRA warranty.
- Page 20 BELT/DECK LUBRICATION PROCEDURE First, you want to clean between the belt and deck to remove any debris that may be trapped. Use a clean, non-fraying rag, t-shirt, or light towel. Halfway between the end of the treadmill and motor cover, shove the garment under the belt until you can grasp it on both sides of the belt.
- Page 21 SERVICE CHECKLIST - DIAGNOSIS GUIDE Before contacting us for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty. Problem Meaning Solution/Cause Console Reminder to check 1.
-
Page 22: Manufacturer's Limited Warranty
Effective August 15, 2016 - TREADMILL LIMITED WARRANTY XTERRA Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales re- ceipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA’s responsibilities include providing new or remanufactured parts, at XTERRA’s option, and technical support to our independent dealers and servicing organizations. -
Page 23: Preventative Maintenance Chart
PREVENTATIVE MAINTENANCE CHART Vacuum Under Motor Cover & Clean & Inspect Deck Lubricate Deck Inspect Belt Tracking Check Wiring for Lubrication (Every 40 hours (Monthly) Adjust if Date (Every Other (Every Other Month) or sooner if dry) necessary Month) - Page 24 TR200 Owner’s Manual FITNESS © 2016 All Rights Reserved. Revision: 10.06.2016...
