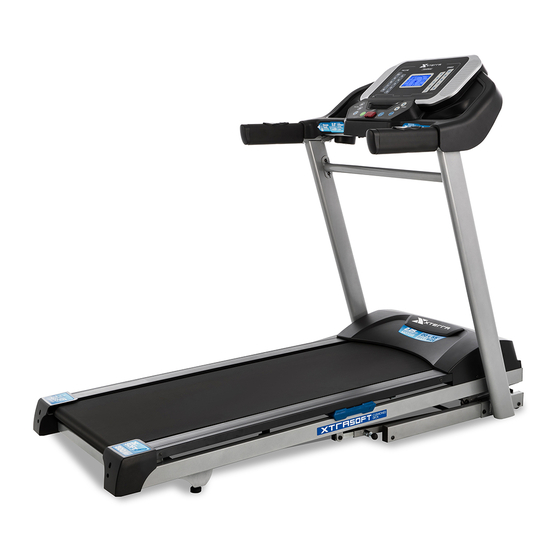

  • Page 1 ’ Owner s Manual Model No. 16004802500 TRX2500 - Assembly - Operation - Adjustments - Parts - Warranty CAUTION: You must read and understand this owner’s manual before operating unit. Keep this manual for future reference. Serial number Write the serial number in the space above for reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Instructions ..............3 Important Electrical Instructions ..............4 Important Operation Instructions .............. 5 Assembly Instructions ................5 Folding/Transport Instructions ..............10 Treadmill Operation ................. 11 General Maintenance ................20 Service Checklist - Diagnosis Guide ............25 Exploded View Diagram ................
  • Page 3 If you have any questions or problems with the parts included with your XTERRA TRX2500 Treadmill, please do not return the product. Contact us FIRST! If a part is missing or defective, call us toll-free at 1-888-707-1880. Our Customer Service Staff are available to assist you from 8:30 A.M.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this equipment. DANGER - To reduce the risk of electric shock, always unplug this treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet.

  • Page 5: Important Electrical Instructions

    IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill, including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power.

  • Page 6: Important Operation Instructions

    IMPORTANT OPERATION INSTRUCTIONS NEVER operate this treadmill without reading and completely understanding the results ● of any operational change you request from the computer. Understand that changes in speed and incline do not occur immediately. Set your desired ● speed on the computer console and release the adjustment key. The computer will obey the command gradually.
  • Page 7 WARNING DECAL REPLACEMENT Serial Number Decal The decals shown have been placed on the treadmill. If a decal is missing or illegible, please call our Customer Service Department, to order a free replacement decal (see ORDERING REPLACEMENT PARTS). Apply the decal in the location shown. Note: The decal shown at the right is 50% of actual size.
  • Page 8 ASSEMBLY PACK CHECKLIST # 100. Ø5/16" × Ø18 × 1.5T # 80. Ø8 × 1.5T # 99. 5/16" ×1/2" Flat Washer (8pcs) Split Washer (4pcs) Hex Head Bolt (8pcs) # 125. 5/16" ×3/4" # 104. Lubricant (1pc) Button Head Socket Bolt (8pcs) # 44.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 1 Take out the treadmill from the carton and lay it aside on the smooth ground. STEP 2 Connect Computer Cable (Middle) (54) with Computer Cable (Lower) (55) then insert Right and Left Uprights (4) and (5) into the Frame Base (2) and use 13m/m Wrench (90) to tighten 8 pcs of 5/16”...
  • Page 10 STEP 3 Connect the Computer Cable (Middle) (54) and Computer Cable (Upper) (53). Connect the Speed Adjustment Switch W/Cable (Upper) (114) and Speed/Hand Pulse Complex (28). Connect the Incline Adjustment Switch W/Cable (Upper) (115) and Incline/Hand Pulse Complex (29). Insert Console Assembly (21) into right and left Uprights (4) and (5) and secure with 4 pcs of 5/16”...

  • Page 11: Folding/Transport Instructions

    FOLDING INSTRUCTIONS UNFOLDING Pull locking knob and hold the running deck and lower down to the floor. (As shown in Figures 1 and 2.) FOLDING Pull the locking knob with the right hand, left hand lift the running deck up to 30cm then two hands lift it until it is locked by the locking knob.

  • Page 12: Treadmill Operation

    TREADMILL OPERATION Your treadmill features a walking belt coated with a lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or walking board. Such substances will deteriorate the walking belt and cause excessive wear. HOW TO PLUG IN THE POWER CORD. GROUNDING INSTRUCTIONS.
  • Page 13 OPERATION OF YOUR TREADMILL GETTING STARTED: CAUTION: Before operating the console, read the following precautions: • Do not stand on the walking belt when turning on the treadmill. • Always wear the safety key. Pulling the safety key will stop tread-belt movement. •...
  • Page 14 POWER UP Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not operate without it. The treadmill will then enter idle mode, which is the starting point for operation.
  • Page 15 1. Remove Safety Key. 2. Turn off the main switch on the front of the treadmill below the motor cover. Note: Do not leave the Safety Key on the treadmill when not in use. Always turn off the treadmill. WINDOW DISPLAY Speed: Displays the current speed from starting at 0.5 mph to 10 mph.
  • Page 16 Program Operation Manual Program In idle mode, you can directly start or press ENTER to set the countdown parameters (time, distance, calories). Press SPEED ▲ , and ▼ in order to adjust the time, distance, calories, confirm and press ENTER key to switch time, distance, calories; the system only accepts the last number of parameters. For example, if the last input is a distance, the previous parameter will be invalid, and only the distance setting will be accepted.
  • Page 17 Preset Program Profiles Customer Service 1-888-707-1880 Dyaco Canada Inc. 2018 Email: customerservice@dyaco.ca...
  • Page 18 Preset Program Profiles Program Profile Detail Chart TIME MODE 1.5 2.5 2.5 1.5 1.5 2.5 2.5 1.5 1.5 2.5 2.5 1.5 1.5 1.5 1.5 1.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3.5 3.5 3.5 2.5 2.5 2.5 3.5...
  • Page 19 HEART RATE PROGRAMS Before we get started, a word about Heart Rate: The old motto, “no pain, no gain,” is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
  • Page 20 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate, and what you ate all contribute to the intensity at which you should workout.

  • Page 21: General Maintenance

    GENERAL MAINTENANCE WARNING: Always unplug your treadmill prior to cleaning in order to avoid electrical hazard or shock. Belt and Deck - Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame.
  • Page 22 Tighten the rear roller only enough to prevent slippage at the front roller. Turn the tread-belt tension adjusting bolt in increments of 1/4 turn and inspect for proper tension. When an adjustment is made to the belt tension, you must also make a tracking adjustment to compensate for the change in belt tension.
  • Page 23 BELT / DECK LUBRICATION: Do not lubricate with other than DYACO CANADA INC approved lubricant. Your treadmill comes with one tube of lubricant, and extra tubes can be ordered directly from DYACO CANADA INC. There are commercially available lube kits, but the only one currently approved by DYACO CANADA INC is Lube-N-Walk.
  • Page 24 RESET SWITCH RESETTING • If your treadmill lost power or will not start, check the reset switch located on the front of the motor cover. • If the white tab of the reset switch is not showing, then the reset switch has not been tripped.
  • Page 25 ERROR MESSAGES Safety Key is not in place. A reminder to put in the safety key. Treadmill calibration did not receive a speed signal for 10 seconds. Over the rated current. The controller is over the rated current for 3 seconds. Incline Error.

  • Page 26: Service Checklist - Diagnosis Guide

    SERVICE CHECKLIST – DIAGNOSIS GUIDE Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty. PROBLEM SOLUTION/CAUSE 1.

  • Page 27: Exploded View Diagram

    EXPLODED VIEW DIAGRAM Customer Service 1-888-707-1880 Dyaco Canada Inc. 2018 Email: customerservice@dyaco.ca...

  • Page 28: Parts Lists

    PARTS LIST KEY NO. PART NO. DESCRIPTION Q'TY 8025001 Main Frame 8025002 Frame Base 8025003 Incline Bracket 8025004 Right Upright 8025005 Left Upright 8025006 Console Support 8025007 Outer Slide 8025008 Inner Slide 8025009 Handrail Support 8025010 Incline Motor 8025011 Drive Belt 8025012 Motor Bracket 8025013...
  • Page 29 KEY NO. PART NO. DESCRIPTION Q'TY 8025053 1200m/m_Computer Cable (Upper) 8025054 1250m/m_Computer Cable (Middle) 8025055 1200m/m_Computer Cable (Lower) 8025056 1000m/m_Sensor W/Cable 8025058 1/2" × 1"_Hex Head Bolt 8025059 3/8" × 3-1/4"_Hex Head Bolt 8025060 Ø5/16" × 19 × 1.5T_Curved Washer 8025061 3/8"...
  • Page 30 KEY NO. PART NO. DESCRIPTION Q'TY 80250103 M6_L Allen Wrench 80250104 Lubricant 80250105 Adjustment Foot Pad □21.8 × 21.8mm_Square End Cap 80250106 □25.4 × 25.4mm_Square End Cap 80250107 80250111 3.5 × 16m/m_Tapping Screw 80250112 Wire Tie Mount 80250113 Top Motor Cover Plate 80250114 1000m/m_Speed Adjustment Switch W/Cable (Upper) 80250115...

  • Page 31: Training Guidelines

    TRAINING GUIDELINES EXERCISE Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are:  Increased capacity for physical work (strength endurance)  Increased cardiovascular (heart and arteries/veins) and respiratory efficiency ...
  • Page 32 SPECIFICITY Different forms of exercise produce different results. The type of exercise that is carried out is specific both to the muscle groups being used and to the energy source involved. There is little transfer of the effects of exercise, i.e. from strength training to cardiovascular fitness. That is why it is important to have an exercise program tailored to your specific needs.
  • Page 33 PULSE COUNT The pulse count (on your wrist or carotid artery in the neck, taken with two index fingers) is done for ten seconds, taken a few seconds after you stop exercising. This is for two reasons: (a) 10 seconds is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are exercising.
  • Page 34 WHAT TO WEAR Wear clothing that will not restrict your movement in any way while exercising. Clothes should be light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you normally would while exercising gives you no advantage. The extra weight you lose is body fluid and will be replaced with the next glass of water you drink.
  • Page 35 STRETCHING Stretching should be included in both your warm-up and cool-down and should be performed after 3-5 minutes of low-intensity aerobic activity or callisthenic type exercise. Movements should be performed slowly and smoothly, with no bouncing or jerking. Move into the stretch until slight tension, but no pain is felt in the muscle and hold for 20-30 seconds.
  • Page 36 INNER THIGH STRETCH TOUCHES Sit with the soles of your feet together with your Slowly bend forward from your waist, letting knees pointing outward. Pull your feet as close your back and shoulders relax as you stretch Into your groin as possible. Gently push your toward your toes.

  • Page 37: Manufacturer's Limited Warranty

    MANUFACTURER’S LIMITED WARRANTY Dyaco Canada Inc. warrants all its treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt. Dyaco Canada Inc.’s responsibilities include providing new or remanufactured parts at Dyaco Canada Inc.’s option and technical support to our independent dealers and servicing organizations.
