OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xterra TR250

Summary of Contents for Xterra TR250

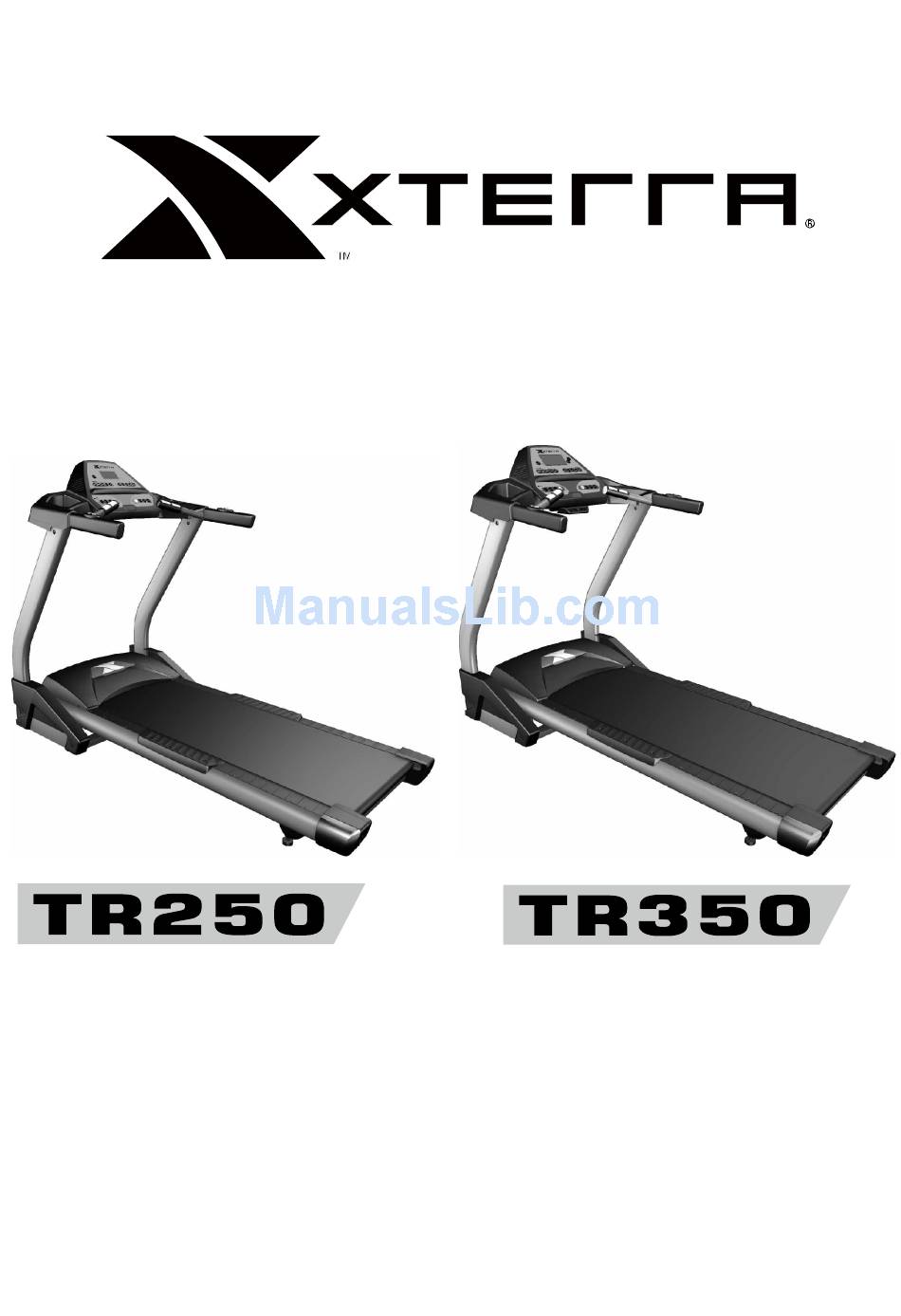

  • Page 1 OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Product Registration Important Safety Instructions .. 3 Important Electrical Information .. 4 Important Operation Instructions Assembly instructions Operation of Your New TR250 Treadmill Operation of Your New TR350 Treadmill General Maintenance. Manufacturer s Limited Warranty TR250_TR350 Treadmill...

  • Page 3: Product Registration

    We appreciate your confidence in Xterra and we will always remember that you are the reason that we are in business. Please complete and mail your registration card today and enjoy your new treadmill.

  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your Xterra treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet.

  • Page 5: Important Electrical Information

    Important Electrical Information WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Large switching currents of the drive motor will trip GFCI type outlets, as any appliance with a large motor will. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.

  • Page 6: Important Operation Instructions

    NEVER mount or dismount the treadmill while the belt is moving. Xterra treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.

  • Page 7: Assembly Instructions

    Assembly Instructions for TR250 and TR350 ASSEMBLY PACK CHECK LIST #111 - M5 x 15mm #95 - 5/16 x 19mm Phillips Head Screw (8pcs) Curved Washer (4pcs) #94 - 5/16 x 15mm #110 - 5/16 x 19mm Button Head Socket Bolt (14pcs)
  • Page 8 STEP 1 Remove all the parts from the carton and lay the main base frame on a flat level surface. STEP 2 Feed the cable from the base frame (38) through the right side upright tube (5) and slide the tube into the base frame tube.
  • Page 9 STEP 3 This step is easier if you have someone else helping to hold the console mounting frame while you connect the wire. Connect the computer cable (38) to the mating connector (36) of the console. STEP 4 Secure the console with six 5/16 bolts (94) and 5/16 flat washers (110). 110 94 TR250_TR350 Treadmill...
  • Page 10 STEP 5 Connect all six connectors to the mating connectors on the back of the console. There are two 3-pin connectors that are color coded, make sure to plug them into the correct place. There are two 2-pin connectors that can be plugged into either mating connector on the console. Secure the console with four M5 X 15mm screws (111).

  • Page 11: Operation Of Your New Tr250 Treadmill

    Operation of the TR250 Treadmill GETTING STARTED: Power the treadmill on by plugging it into a grounded wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not operate without it.
  • Page 12 WINDOW DISPLAYS: After the console powers on the display will show the Time. When you start a program the display will show Speed. Pressing the Display key next to the display will allow you to view other data. SPEED Shows your current walking/running speed in Miles Per Hour. TIME: Accumulates total workout time from 00:00 to 99:59.
  • Page 13 XTERRA TREADMILL PROFILES (TR250) TR250_TR350 Treadmill...

  • Page 14: Operation Of Your New Tr350 Treadmill

    Operation of the TR350 Treadmill GETTING STARTED: Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not operate without it.
  • Page 15 WINDOW DISPLAYS: DISTANCE: Accumulates total workout distance from 0.00 to 99.99 miles (km). TIME: Accumulates total workout time from 00:00 to 99:59. CALORIES: Accumulates the user s calorie consumption during exercise. Max. Value is 999.9 calories. SPEED: Displays the current running speed from 0.5 mph 10 mph.
  • Page 16 PROGRAMS: MANUAL Step 1. Press the Program up/down button to select Manual P0 then press enter. Step 2. The Time window will now be blinking 00:00. You now have a choice to set one of three parameters as a target; either Time, Distance or Calories.
  • Page 17 XTERRA TREADMILL PROFILES (TR350) TR250_TR350 Treadmill...
  • Page 18 USER U1~U2 Step 1. Press program up/down buttons to select User 1 or User 2, then press enter. Step 2. The Time window will be blinking 20:00. You can adjust the Time by pressing the FAST/SLOW buttons, then press enter. Step 3.
  • Page 19 Heart Rate Control Operation How the Heart Rate Control Program Works: Heart Rate Control uses your treadmill s incline system to adjust your heart rate. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed. Additionally, changes in incline keep you in control of the machine s speed instead of the machine controlling you.

  • Page 20: General Maintenance

    General Maintenance Belt and Bed - Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the bed is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge.
  • Page 21 • The large display window will now be showing the Roller size. Roller size is used for the calibration process and should be set to 1.85 for TR250 (2.35 for TR350) • The large display window will also display the setting for M (miles) or K (Kilometers). Press the Enter key to change between M and K.
  • Page 22 BELT / DECK LUBRICATION: Do not lubricate with other than Xterra approved lubricant. Your treadmill comes with one tube of lubricant and extra tubes can be ordered directly from Xterra. There are commercially available lube kits, but the only one currently approved by Xterra is Lube-N-Walk. These kits come with an application wand that makes applying the lubrication easier.

  • Page 23: Error Messages

    If an extension cord is required it should be as short as possible and heavy duty 16 gauge minimum. Low household voltage. Contact an electrician or your Xterra dealer. A minimum of 110 volt AC current is required. Treadmill belt stops quickly/suddenly when High belt/deck friction.

  • Page 24: Manufacturer S Limited Warranty

    Effective July 15, 2009 TREADMILL LIMITED WARRANTY Xterra Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. Xterra s responsibilities include providing new or remanufactured parts, at Xterra s option, and technical support to our independent dealers and servicing organizations.
