INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
POLYPROPYLENE AND KYNAR

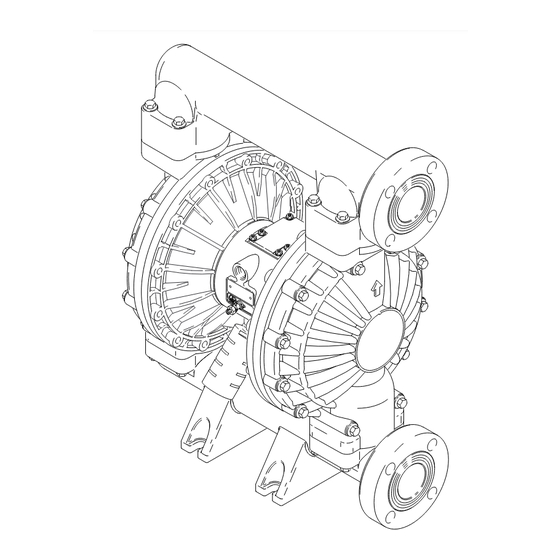

Husky
Diaphragm Pumps
120 psi (0.8 MPa, 8 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8 bar) Maximum Air Input Pressure
*Model No. DF2–
*Model No. DF5–
Model No. 232–504 Private-Label Polypropylene 2150 Pump (See page 24.)
* NOTE: Refer to the Pump Matrix on page 24 to
determine the Model No. of your pump.
US Patent No. 5,368,452.
Other US and Foreign Patents Pending.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
2150 Air-Operated
Polypropylene Pumps
Kynar Pumps
http://www.graco.com
COPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308–550
Supersedes Rev. G
First choice when
quality counts.
Rev. H
