INSTRUCTIONS-PARTS LIST
Parts
INSTRUCTIONS
POLYPROPYLENE AND KYNARR

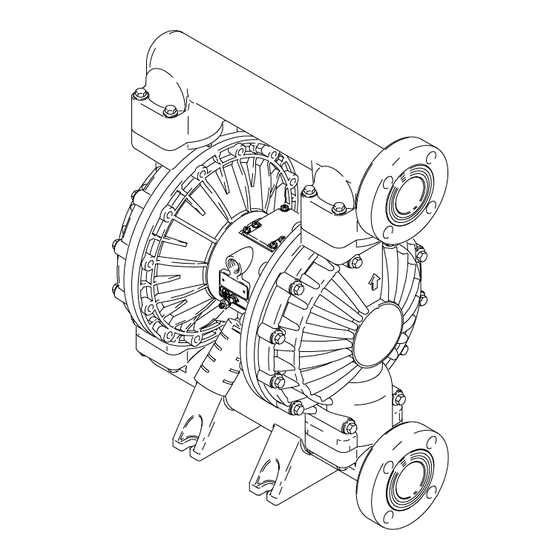

Huskyt 2150 Air-Operated
Diaphragm Pumps
120 psi (0.8 MPa, 8 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8 bar) Maximum Air Input Pressure
*Model No. DF2
*Model No. DF5
Model No. 232504 Private-Label Polypropylene 2150 Pump (See page 24.)
* NOTE: Refer to the Pump Matrix on page 24 to
determine the Model No. of your pump.
US Patent No. 5,368,452.
Other US and Foreign Patents Pending.
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
Polypropylene Pumps
Kynarr Pumps
GRACO INC. P.O. BOX 1441
ECOPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.t
MINNEAPOLIS, MN 55440–1441
308550
Rev. M
04613
