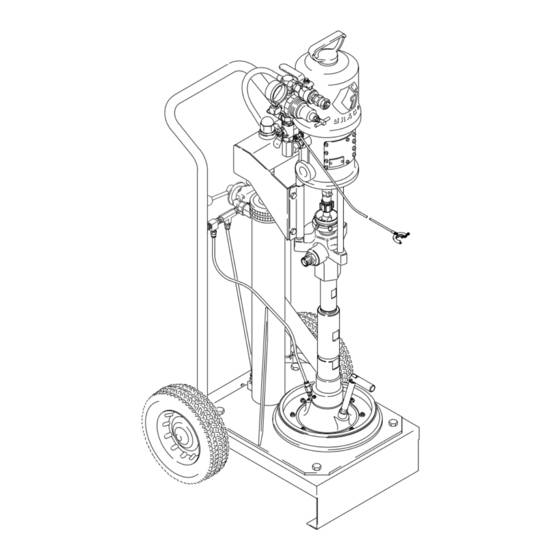

Graco 232-105 Instructions-Parts List Manual

19 liter (5 gallon) size portable ram package
Hide thumbs

Advertisement

Quick Links

Download this manual

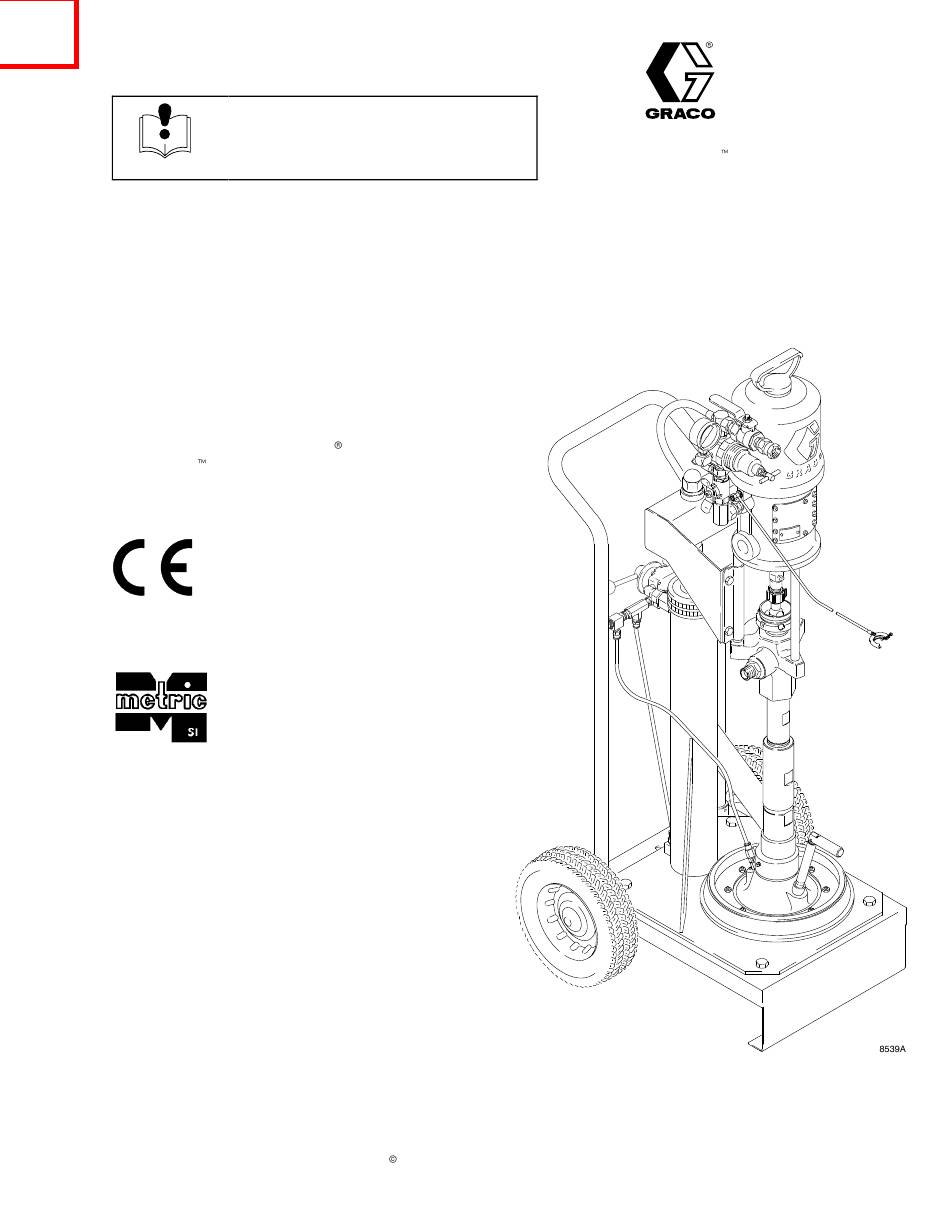

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP IT FOR REFERENCE.
INSTRUCTIONS
19 LITER (5 GALLON) SIZE
Portable Ram Package
32 MPa, 317 bar (4600 psi) Maximum Fluid Working Pressure
0.7 MPa, 7 bar (100 psi) Maximum Pump Air Inlet Pressure
1.0 MPa, 10 bar (150 psi) Maximum Package Air Inlet Pressure
Part No. 232-105 Package, Series A
46:1 Ratio Pump, with President Air Motor and
Check-Mate
200 Carbon Steel Displacement Pump,
19 liter (5 gallon) ram, wiper plate, and cart

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
2
5
8
10
11
11
. . . . . . . . . . . . . . . .
12
. . . . . . . . . . . . . . . . .
12
COPYRIGHT 1998, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308-884
First choice when
quality counts.
Rev. A
