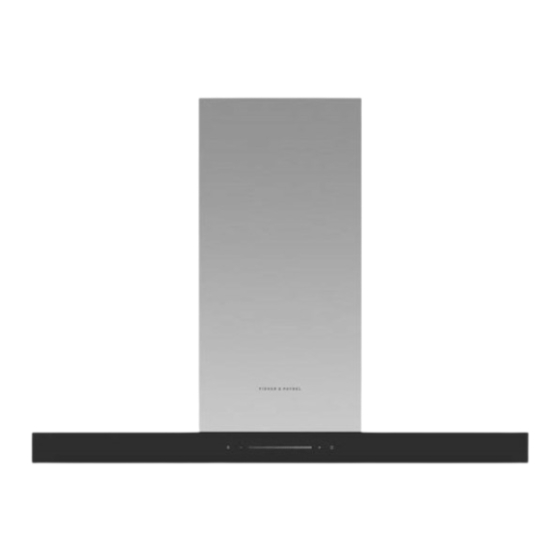

- Page 1 WALL RANGEHOOD, 120CM, BOX CHIMNEY MINIMAL / CONTEMPORARY HC120BCX2 USER GUIDE / INSTALLATION GUIDE CN HK SG 431315A 04.23...
- Page 3 WALL RANGEHOOD, 120CM, BOX CHIMNEY MINIMAL / CONTEMPORARY HC120BCX2 USER GUIDE CN HK SG...
-
Page 5: Table Of Contents
CONTENTS Safety and warnings Using your rangehood Control panel Care and cleaning Troubleshooting Manufacturer’s Warranty Customer care This product complies with mandatory national energy efficiency standard: GB 29539-2013, scan the QR code on the energy label to obtain information on product energy registration. Registration To register your product visit our website: fisherpaykel.com/register... -
Page 6: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs. Failure to do so can result in death, electric shock, fire or injury to persons. - Page 7 SAFETY AND WARNINGS READ AND SAVE THESE INSTRUCTIONS WARNING! When using this appliance always exercise basic safety precautions including the following: Disconnect the power supply when cleaning or inspecting the product. Do not damage or place heavy objects on the power cord. The room must have adequate ventilation when the rangehood is used at the same time as appliances burning gas or other fuels.
-
Page 8: Using Your Rangehood
USING YOUR RANGEHOOD This rangehood should be turned on for a few minutes before cooking in order to establish air currents upward through the rangehood. This will also enable hot air removal from your kitchen and keep the rangehood surface cool. When heat, smoke, moisture, grease and cooking odours are produced, they will be carried outside instead of drifting into other rooms. -
Page 9: Control Panel
CONTROL PANEL 1 Light Press to turn light on/off. 2 Fan speed Press to turn the fan on and to cycle through the fan speeds. (Total 21 speed cycles) Holding enters boost mode. 3 Fan speed adjust Touch and slide to increase or decrease the fan speed. Press to turn the rangehood on/off. -
Page 10: Care And Cleaning
CARE AND CLEANING This rangehood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. Avoid the use of corrosive chemicals especially those made up of an acid base, abrasive cleaning products, hard brushes and steel wool pads. - Page 11 CARE AND CLEANING Oil filter Clean the filter and the filter recess at least once a month. It may need to be cleaned more frequently depending on the cooking methods used and frequency of use. The filter should be removed and left to soak in hot soapy water. After soaking, wipe clean with a rag and rinse with clean water.
- Page 12 CARE AND CLEANING Replacing the oil filter Insert the top edge of the filter into the filter recess. Ensure the tabs are aligned. Push the rest of the filter back into place and tighten the screws to secure. Replace the oil receptacle. Clean the fan regularly.
-
Page 13: Troubleshooting
TROUBLESHOOTING If there is a problem with your rangehood, please check the following points before contacting your local Fisher & Paykel trained and supported service technician or the Customer Care Centre. PROBLEM POSSIBLE CAUSES WHAT TO DO No power. Power supply plug is not plugged Check the power plug is properly in or not properly connected. - Page 14 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Oil filter is difficult to Filter and filter recess have not Clean the filter and filter recess remove. been cleaned. weekly in accordance with the instructions. Rangehood is loud. Main unit is not securely fastened to Check that the main unit is fastened the wall.
-
Page 15: Manufacturer's Warranty
MANUFACTURER’S WARRANTY You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this Rangehood covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. -
Page 16: Customer Care
CUSTOMER CARE Before you call for service or assistance Check the things you can do yourself. Refer to your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Fisher &... - Page 17 CUSTOMER CARE *If you call, write or contact our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance.
- Page 19 WALL RANGEHOOD, 120CM, BOX CHIMNEY MINIMAL / CONTEMPORARY HC120BCX2 INSTALLATION GUIDE CN HK SG...
- Page 21 CONTENTS Safety and warnings Parts supplied Prior to installation Product dimensions Installation height Electricial requirements Attach brackets and mounting screws Hang rangehood Connect ducting Attach accessories About your rangehood Final checklist...
-
Page 22: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs. Failure to do so can result in death, electric shock, fire or injury to persons. - Page 23 SAFETY AND WARNINGS READ AND SAVE THESE INSTRUCTIONS WARNING! When using this appliance always exercise basic safety precautions including the following: Please read the entire set of instructions before installing or using this appliance. Please make this information available to the person installing the appliance – doing so could reduce your installation costs.
-
Page 24: Parts Supplied
PARTS SUPPLIED WALL RANGEHOOD, INCLINE CONTEMPORARY HT90GCX1 USER GUIDE / INSTALLATION GUIDE Rangehood User guide and Wall bracket (1) Installation guide Upper chimney Check valve gasket Safe block bracket bracket (1) Universal ducting Oil receptacle Wind plate hose 180 (1) - Page 25 PARTS SUPPLIED Mounting screw* Expansion plug* Self-tapping 4 x 48 (6) 10 x 48 (6) screw ST4 x 8 (2) * The screws and plugs are to be used in concrete or brick walls only. Different fixings will be required for other types of wall construction.
-
Page 26: Prior To Installation
PRIOR TO INSTALLATION Fisher & Paykel is not liable for any damage caused by not following these instructions. Please read the instructions carefully before installing the rangehood. Unpack the rangehood. Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency of the installation site. -
Page 27: Product Dimensions
PRODUCT DIMENSIONS PLAN PROFILE FRONT BOTTOM VIEW... - Page 28 PRODUCT DIMENSIONS HC120BCX2 PRODUCT DIMENSIONS A Maximum overall height of product 1038 B Minimum overall height of product C Overall width of product 1200 D Overall depth of product* E Height of rangehood control panel F Width of chimney G Depth of chimney*...
-
Page 29: Installation Height
INSTALLATION HEIGHT HEIGHT DIMENSIONS A Ducted installation Minimum height Maximum height B Height top of cooktop to base of product Electric cooktop min 650 – max 750 Gas cooktop min 650 – max 750 This rangehood must be installed no lower than the minimum height indicated in the table above. - Page 30 INSTALLATION HEIGHT Induction cooktop considerations Induction cooktops use energy efficient technology that only heats the contents of a cooking pot. Unlike gas or traditional electric cooktops, the surrounding air does not get heated when using an induction cooktop. As a result, rangehood filters, splashbacks and surrounding cabinetry do not get warmed up, increasing the likelihood of condensation on these cooler surfaces.
-
Page 31: Electricial Requirements
ELECTRICIAL REQUIREMENTS Rating plate location Before connecting the rangehood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location: MODEL FREQUENCY VOLTAGE HC120BCX2 50 Hz 220 V... -
Page 32: Attach Brackets And Mounting Screws
ATTACH BRACKETS AND MOUNTING SCREWS Use the supplied mounting screws and expansion plugs if attaching to concrete or brick walls. Different fixings will be required for other types of wall construction. 280mm Decorative cover mounting holes (If required) Mark the locations for the wall bracket, stopper screw and upper chimney 32mm 73mm... -
Page 33: Hang Rangehood
HANG RANGEHOOD The rangehood is heavy and requires two people to attach to the wall. Attach the rangehood to the wall bracket. Ensure the rangehood and wall bracket are firmly locked together. Insert the stopper screw at the top of the rangehood. Ensure the screw is tightly secured against the ranghood. -
Page 34: Connect Ducting
CONNECT DUCTING Ensure the ducting hose is stretched tight and trimmed to suit the installation space. For best performance, the ducting hose should not exceed 3m and should have minimal bends. Insert the unmarked end of the ducting hose into the check valve. Attach with the supplied valve adaptor. -
Page 35: Attach Accessories
ATTACH ACCESSORIES Extend the upper chimney extension (if using) and attach onto the upper chimney bracket. Fit the oil receptacle onto the rangehood. Position it between the tabs on the oil filter and push into place. Install the oil receptacle and wind plate. -
Page 36: About Your Rangehood
ABOUT YOUR RANGEHOOD TECHNICAL DATA Light bulbs Rated voltage: 220 V Type of power Rated frequency: 50 Hz Motor input power 230 W Rated input power 240 W Maximum air flow Maximum 20, boost 25m³/min Air pressure Maximum: 830 Pa Noise 70 dB (A) Outer diameter: 180 mm... -
Page 37: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER … Rangehood is correctly installed … All connections are secure … Connections have not pierced any electrical or water lines within the wall … Ducting has not been crushed or bent in any areas …... - Page 38 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
