PIXEL DRIVER 4000 V3
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXEL DRIVER 4000 V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Elation PIXEL DRIVER 4000 V3

Summary of Contents for Elation PIXEL DRIVER 4000 V3

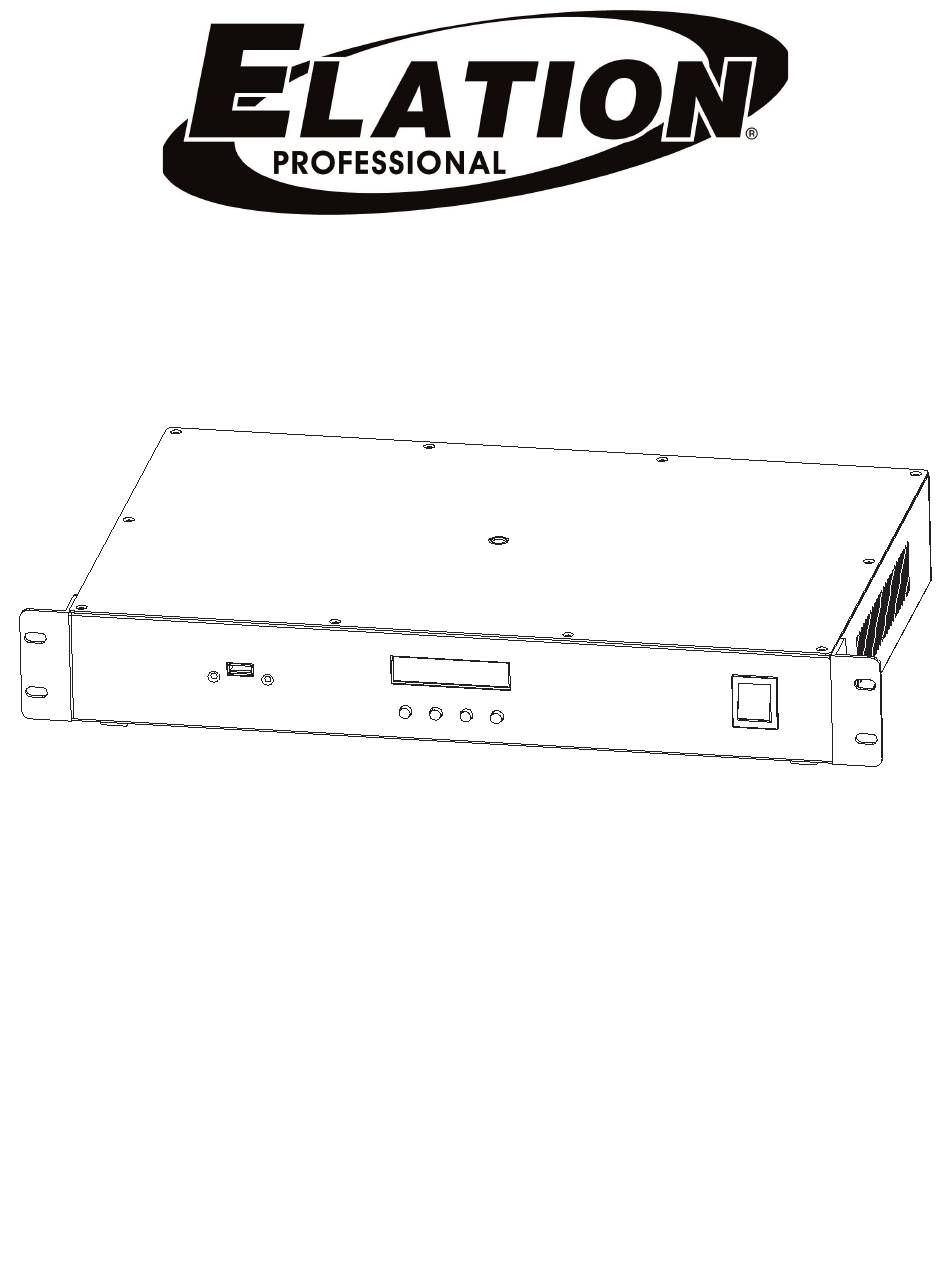

  • Page 1 PIXEL DRIVER 4000 V3 User Manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.

  • Page 3: Table Of Contents

    CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Device Overview Installation Guidelines Connections and Cables System Configuration Remote Device Management (RDM) System Menu Pixel Grouping Pixel Modes Software Updates Technical Specifications Dimensional Drawings FCC Statement...

  • Page 4: General Information

    Please do NOT discard the outer shipping carton in the trash. Please recycle whenever possible. CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 SAFETY GUIDELINES • DO NOT shake device, and avoid brute force when installing and operating. • DO NOT operate device if the power cord has been frayed, crimped, damaged, and/or if any of the power cord connectors are damaged and do not insert easily into the device. •...

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this device. Please refer all other service issues to an autho- rized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Device Overview

    DEVICE OVERVIEW INCLUDED ITEMS • 19” Rack Mount Kit • 1.7m (5.6 ft) Power Cable • 2.8m (9.25ft) 4pin 16AWG Power/Data Cable...

  • Page 10: Installation Guidelines

    INSTALLATION GUIDELINES FLAMMABLE MATERIAL WARNING! Keep drive a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or devices. FOR USE IN INDOOR OR DRY LOCATIONS ONLY! DO NOT EXPOSE TO RAIN OR MOISTURE! DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! Device MUST be installed following all local, national, and country commercial electrical and...
  • Page 11 INSTALLATION GUIDELINES RACK MOUNTING The device can be rack mounted in a standard 19-inch rack space. Attach the included rack ears to both sides of the device using the included screws. Tighten rack ear screws securely but do NOT over tighten. Use careful planning when rack mounting the device to allow ample space for the power/data cables.
  • Page 12 Improper installation can result in bodily injury. INSTALLATION LOCATION PLANNING Use careful planning to select the installation location of the PIXEL DRIVER 4000 V3 unit(s). The maximum distance from the driver to the first pixel bar should not exceed 50 feet (18m).

  • Page 13: Connections And Cables

    The following maximum cable distances apply when using 16AWG cables. • PIXEL DRIVER 4000 V3 to 1st PIXEL BAR IP = Maximum 50 feet (18 meters) • PIXEL BAR IP to PIXEL BAR IP = Maximum 32 feet (10 meters) •...

  • Page 14: System Configuration

    SYSTEM CONFIGURATION LINKING Maximum number pixels/bars each PIXEL DRIVER 4000 V3 supports is listed in charts below. Multiple combinations of PIXEL BAR IP models can be linked (daisy-chained) together to a single driver port, as long as the maximum number of pixels/bars is NOT exceeded.
  • Page 15 SYSTEM CONFIGURATION PIXEL WASH 40IP: 20pcs Max can be driven when HiPower Mode is set to ON and 32pcs Max can be driven when HiPower Mode is set to OFF. When incorporating up to 16 Pixel Amp 200’s (sold separately), 100pcs Max can be driven when HiPower Mode is set to ON and 160pcs Max can be driven when HiPower Mode is set to OFF.
  • Page 16 Protocol). Using a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all connected devices to the switch. Up to 5 PIXEL DRIVER 4000 V3 units can be connected per ethernet switch port and up to 10 total ethernet switch ports can be used in a system.

  • Page 17: Remote Device Management (Rdm)

    REMOTE DEVICE MANAGEMENT (RDM) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the device to be managed, modified, and monitored remotely (hence, remote device management).

  • Page 18: System Menu

    SYSTEM MENU MODE SET UP UP/DOWN DESCRIPTION Manual Control Adjust the intensity of the red Red Dimmer Red: xxx color. Manual Control Adjust the intensity of the green Green Dimmer Green: xxx color. Manual Control Adjust the intensity of the blue Blue Dimmer Blue: xxx color.
  • Page 19 SYSTEM MENU MODE SET UP UP/DOWN DESCRIPTION Select the pixel bar model that Artnet Out x will be connected to each output. Pixel Bar xxx IP • x = output port # • xxx = pixel bar model Select the number of pixel bar units that will be connected to Artnet Out x each output.
  • Page 20 SYSTEM MENU MODE SET UP UP/DOWN DESCRIPTION sACN Out x DMX Universe Set Set DMX universe of each output. u:xxxxx Select the pixel bar model that sACN Out x will be connected to each output. Pixel Bar xxx IP • x = output port # •...
  • Page 21 SYSTEM MENU MODE SET UP UP/DOWN DESCRIPTION Programs Select a built in program Program xx Programs Set program speed Speed xx Program Play Set Programs Set fade time speed Fade xx Programs Set phase time Phase Time xx Select the pixel bar model that Program Out x will be connected to each output.
  • Page 22 SYSTEM MENU MODE SET UP UP/DOWN DESCRIPTION Software Version Port 1 software version Port1 Vx.x Software Version Port 2 software version Port2 Vx.x Software Version SOFTWARE VERSION Display Software Version Port 3 software version Port3 Vx.x Software Version Port 4 software version Port4 Vx.x Passcode = 011, then press Service...

  • Page 23: Pixel Grouping

    PIXEL GROUPING Each pixel requires three channels (red, green, and blue) to operate, and therefore the number of pixels (and consequently, the number of devices) that the driver can control is limited by the total number of control channels available on the driver. However, this driver also gives the user the ability to adjust the pixel grouping configuration.

  • Page 24: Pixel Modes

    PIXEL MODES Pixel Pixel Pixel Group Options Pixel Group Options Count Count 1x33, 3x11, 11x3, 33x1 1x2, 2x1 1x34, 2x17, 17x2, 34x1 1x3, 3x1 1x35, 5x7, 7x5, 35x1 1x36, 2x18, 3x12, 4x9, 6x6, 9x4, 12x3, 1x4, 2x2, 4x1 18x2, 36x1 1x5, 5x1 1x37 1x6, 2x3, 3x2, 6x1...
  • Page 25 PIXEL MODES Pixel Pixel Pixel Group Options Pixel Group Options Count Count 1x62, 2x31, 31x2, 62x1 1x91, 7x13, 13x7, 91x1 1x63, 3x21, 7x9, 9x7, 21x3, 63x1 1x92, 2x46, 4x23, 23x4, 46x2, 92x1 1x64, 2x32, 4x16, 8x8, 16x4, 32x2, 1x93, 3x31, 31x3, 93x1 64x1 1x94, 2x47, 47x2, 94x1 1x65, 5x13, 13x5, 65x1...
  • Page 26 PIXEL MODES Pixel Pixel Pixel Group Options Pixel Group Options Count Count 1x119, 7x17, 17x7, 119x1 1x146, 2x73, 73x2, 146x1 1x120, 2x60, 3x40, 4x30, 5x24, 6x20, 1x147, 3x49, 7x21, 21x7, 49x3, 147x1 8x15, 10x12, 12x10, 15x8, 20x6, 24x5, 1x148, 2x74, 4x37, 37x4, 74x2, 148x1 30x4, 40x3,60x2, 120x1 1x149 1x121, 11x11, 121x1...

  • Page 27: Software Updates

    FIXTURE SOFTWARE CAN NOT BE DOWNGRADED! DOWNLOAD FIXTURE SOFTWARE TO PC ONLY! (NO MAC SUPPORT) PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. To update the fixture software via the UPDATE/SERVICE PORT, follow steps below. 1. Copy fixture software update file from a PC computer to a compatible USB flash drive.

  • Page 28: Technical Specifications

    TECHNICAL SPECIFICATIONS CONTROL / CONNECTIONS Manual RGB Mode Internal Programs Art-NET | sACN | Kling-NET 2 RJ45 Ethernet Ports 4 4pin Power/Data Outputs USB Port for Firmware Updates SIZE / WEIGHT Length: 11.8” (301mm) Width: 18.9” (480mm) Height: 2.9” (74mm) Weight: 10.8 lbs.

  • Page 29: Dimensional Drawings

    DIMENSIONAL DRAWINGS 2.9in. 16.7in. [425mm] [74mm] 18.9in. [480mm] Dimensions may not be drawn to scale.

  • Page 30: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must ac- cept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
  • Page 31 This page intentionally left blank.
