Summary of Contents for Elation SIXPAR 300WMG

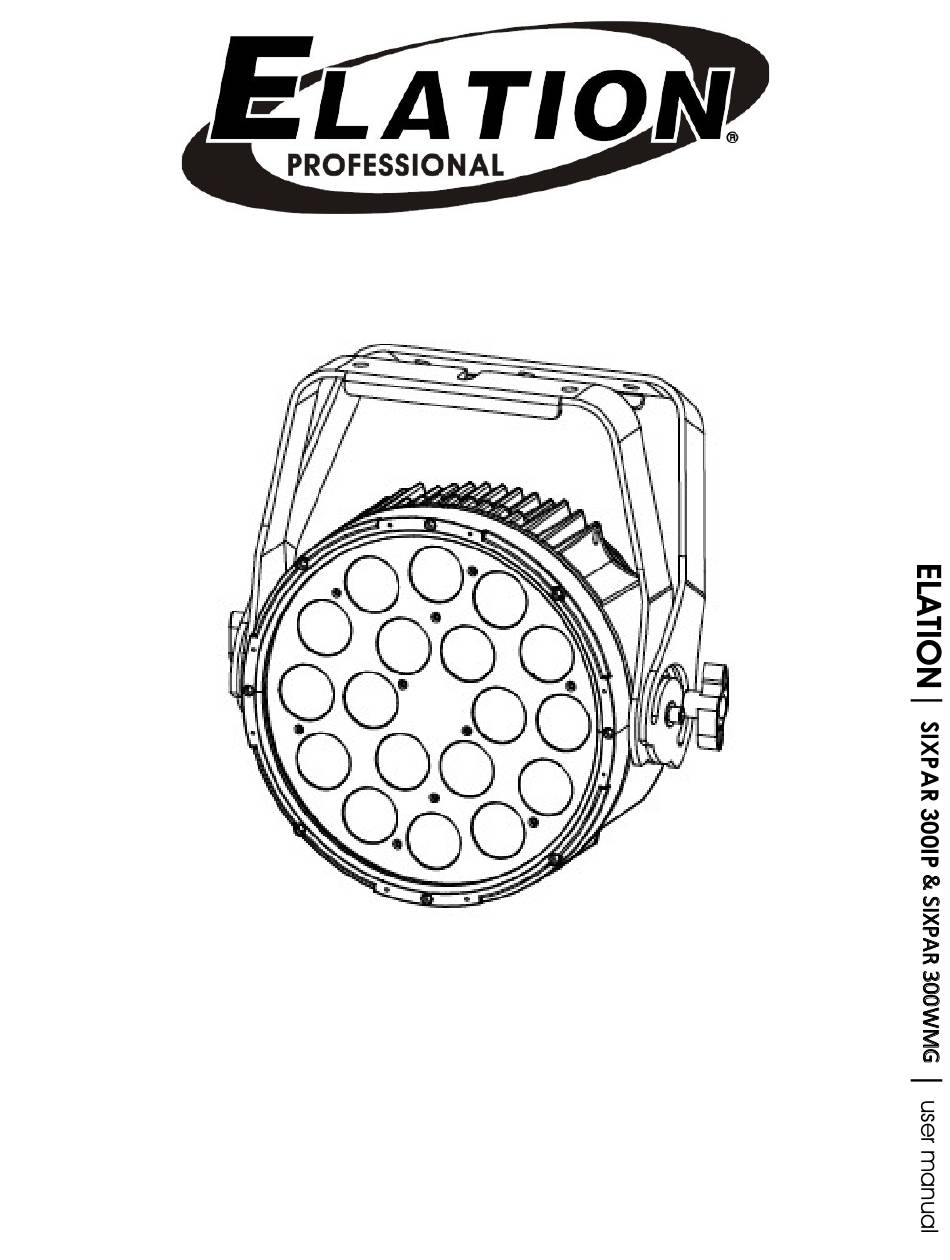

- Page 1 SIXPAR 300IP & SIXPAR 300WMG user manual...
- Page 2 All non-ELATION brands and product names are trademarks or registered trademarks of their respective companies. ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any...
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories SIXPAR 300IP / SIXPAR 300WMG User Manual ver... -
Page 4: General Information
Congratulations, you have just purchased one of the most innovative and reliable ArtNet to DMX converter on the market today! The SIXPAR 300IP / SIXPAR 300WMG have been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 . e l a t i o n l i g h t i n g . c o m UNPACKING Thank you for purchasing the SIXPAR 300IP / SIXPAR 300WMG by Elation Professional®. Every SIXPAR 300IP / SIXPAR 300WMG has been thoroughly tested and has been shipped in perfect operating condition.
- Page 6 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION PROFESSIONAL USA 6122 S.
-
Page 7: Warranty
(730 days), and Elation Professional® p r o d u c t rechargeable b a t t e r i e s to be free of manufacturing d e f e c t s in material and workmanship for a period of six months (180 days), from the original date of purchase. -
Page 8: Safety Instructions
. e l a t i o n l i g h t i n g . c o m S A F E T Y I N S T R U C T I O N S The SIXPAR 300IP / SIXPAR 300WMG is an extremely sophisticated piece of electronic equipment. -
Page 9: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. SIXPAR 300IP / SIXPAR 300WMG User Manual ver... -
Page 10: Fixture Overview
. e l a t i o n l i g h t i n g . c o m F I X T U R E O V E R V I E W MODE Button UP Button DOWN Button ENTER Button Power IN DMX IN DMX Out Power OUT SIXPAR 300IP / SIXPAR 300WMG User Manual ver... -
Page 11: Fixture Installation
Max number of units that can be power linked is 5 units @110V and 10 units @240V. CLAMP MOUNTING The SIXPAR 300IP / SIXPAR 300WMG provides a unique integrated Dual Yoke / Floor Stand. When mounting this fixture to truss be sure to secure an appropriately rated clamp using an M10 screw fitted through the center hole of the Dual Yoke / Floor Stand. - Page 12 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. SIXPAR 300IP / SIXPAR 300WMG User Manual ver...
-
Page 13: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The SIXPAR 300IP / SIXPAR 300WMG can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 14 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the SIXPAR 300IP / SIXPAR 300WMG. The diagram below illustrates a typical DMX-512 connection when the fixture is in the 12 Channel Mode.
- Page 15 That means changing the settings of one channel will only affect the selected fixture. In the case of the SIXPAR 300IP / SIXPAR 300WMG, when in the 12 Channel Mode you should set the starting DMX address of the first unit to 1, the second unit to 13 (1 + 12), the third unit to 25 (13 + 12), and so on.
-
Page 16: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The SIXPAR 300IP / SIXPAR 300WMG comes with an easy to navigate system menu. The following sections will cover how to access each menu function. LCD CONTROL PANEL DISPLAY... - Page 17 Adjust SPEED 01 SLOW - 99 FAST Adjust STROBE SPEED 00 SLOW (0.1Hz) - 99 FAST S00-99 (20Hz) DimCurve Standard, Stage, TV, Architec, Theatre Set Dimming Curve Blackout NO Output NO DMX Hold Hold Last Setting Fade Fade SIXPAR 300IP / SIXPAR 300WMG User Manual ver...
- Page 18 . e l a t i o n l i g h t i n g . c o m DIMMING CURVES The DimCurve menu allows you to select one of the following preset dimming curves: Standard, Stage, TV, Architec, or Theatre. (See diagram below for more details) Dimmer SIXPAR 300IP / SIXPAR 300WMG User Manual ver...
-
Page 19: Dmx Channel Functions And Values
Strobe Effect SLOW to FAST 96-127 LED ON (NO STROBE) 128-159 Strobe Pulse Effect In Sequences SLOW to FAST 160-191 LED ON (NO STROBE) 192-223 Random Strobe Effect SLOW to FAST 224-255 LED ON (NO STROBE) SIXPAR 300IP / SIXPAR 300WMG User Manual ver... - Page 20 GREEN + BLUE + WHITE 132-135 GREEN + BLUE + AMBER 136-139 GREEN + BLUE + UV 140-143 GREEN + WHITE + AMBER 144-147 GREEN + WHITE + UV 148-151 GREEN + AMBER + UV SIXPAR 300IP / SIXPAR 300WMG User Manual ver...
- Page 21 Color Fade Chase 81-255 NO Function COLOR CHASE MACROS SPEED 00-255 Chase Speed of CHANNEL 10 - SLOW to FAST DIMMING MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATER 101-255 NO Function SIXPAR 300IP / SIXPAR 300WMG User Manual ver...
-
Page 22: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 23: Technical Specifications
CE | cETLus | IP65 **Optional Corrosion-Resistant Coating may be available for this fixture. Please consult an Elation sales representative for details. Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. - Page 24 . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. SIXPAR 300IP / SIXPAR 300WMG User Manual ver...
-
Page 25: Optional Accessories
65.6 ft. (20m) IP Power Link Cable SIXPAR/DIAC Data IN IP Adapter Cable SIXPAR/DOAC Data OUT IP Adapter Cable SIXPAR/PIAC Power IN IP Adapter Cable SIXPAR/POAC Power OUT Adapter Cable SIXPAR/TERMINATOR DMX Terminator End Cap SIXPAR 300IP / SIXPAR 300WMG User Manual ver... - Page 26 ...
