Summary of Contents for Elation PIXEL NET 4

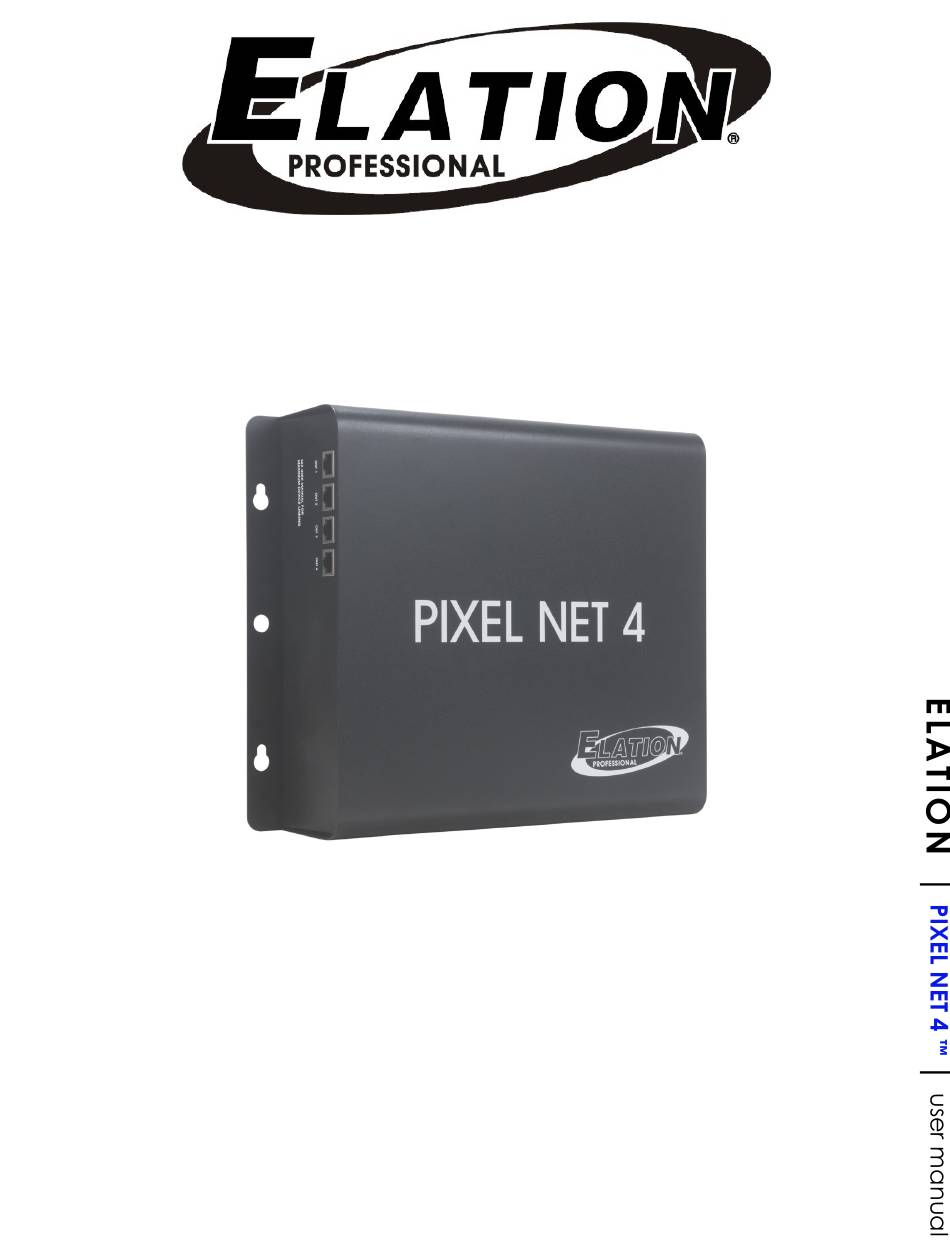

- Page 1 PIXEL NET 4™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions General Guidelines Device Overview Device Installation Device Setup System Configuration Guide Cleaning and Maintenance Technical Specifications Optional Accessories PIXEL NET 4™ User Manual... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) powerCON Cable Manual & Warranty Card PIXEL NET 4™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Any modifications will void the original manufactures warranty and increase the risk of damage and/or personal injury. Always disconnect from main power source before performing any type of service and/or cleaning procedure. PIXEL NET 4™ User Manual... -
Page 8: General Guidelines
Use the original packaging and materials to transport the device in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the device to cool down before replacing or serving. PIXEL NET 4™ User Manual... -

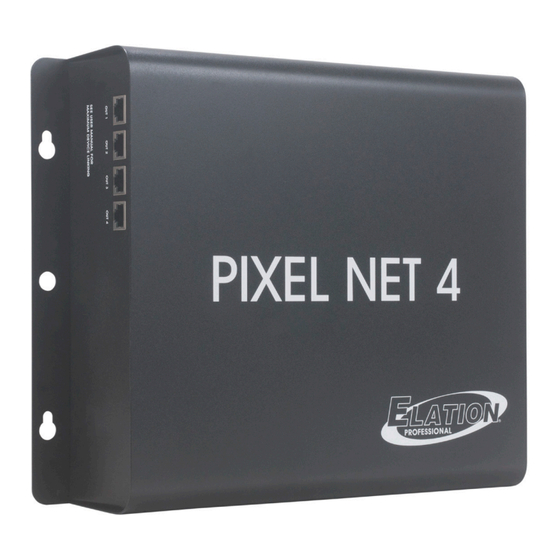

Page 9: Device Overview
. e l a t i o n l i g h t i n g . c o m D E V I C E O V E R V I E W PIXEL NET 4™ User Manual... -
Page 10: Device Installation
S A F E T Y C A B L E ALWAYS USE A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS. PIXEL NET 4™ User Manual... -
Page 11: Device Setup
IP address listed. (For example: 2.0.14.xx) RJ45 ETHERNET CONNECTIONS - DATA OUTPUT FOR PIXEL BARS The device has (4) CAT5e RJ45 OUTPUT ports to supply power/data to the PIXEL BARs. PIXEL NET 4™ User Manual... - Page 12 - Max 32 bars (8 per each output port) ™ - Max 16 bars (4 per each output port) PIXEL BAR40 *CAT5e cable length from PIXEL NET 4 port to last PIXEL BAR unit = 98.4 ft (30m) MAX PIXEL NET 4™ User Manual...
-
Page 13: System Configuration Guide
S Y S T E M C O N F I G U R A T I O N G U I D E *When connecting PIXEL NET 4 devices to a Network Switch that is also controlling multiple other lighting devices, a Gigabit Ethernet Switch that supports IGMP (Internet Group Management Protocol) is strongly suggested. -
Page 14: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 15: Technical Specifications
Length: 12.2” (310mm) Width: 10.0” (255mm) Vertical Height: 3.4” (86.2mm) Weight: 8.0 lbs. (3.6kg) ELECTRICAL / THERMAL AC 90-120V - 60Hz 350W Max Power Consumption 32°F to 104°F (0°C to 40°C) APPROVALS / RATINGS CE | cETLus PIXEL NET 4™ User Manual... - Page 16 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PIXEL NET 4™ User Manual...
-
Page 17: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM PLC3 3 ft (1m) powerCON Link Cable PLC6 6 ft (2m) powerCON Link Cable PLC10 10 ft (3m) powerCON Link Cable PLC15 15 ft (5m) powerCON Link Cable PIXEL NET 4™ User Manual...
