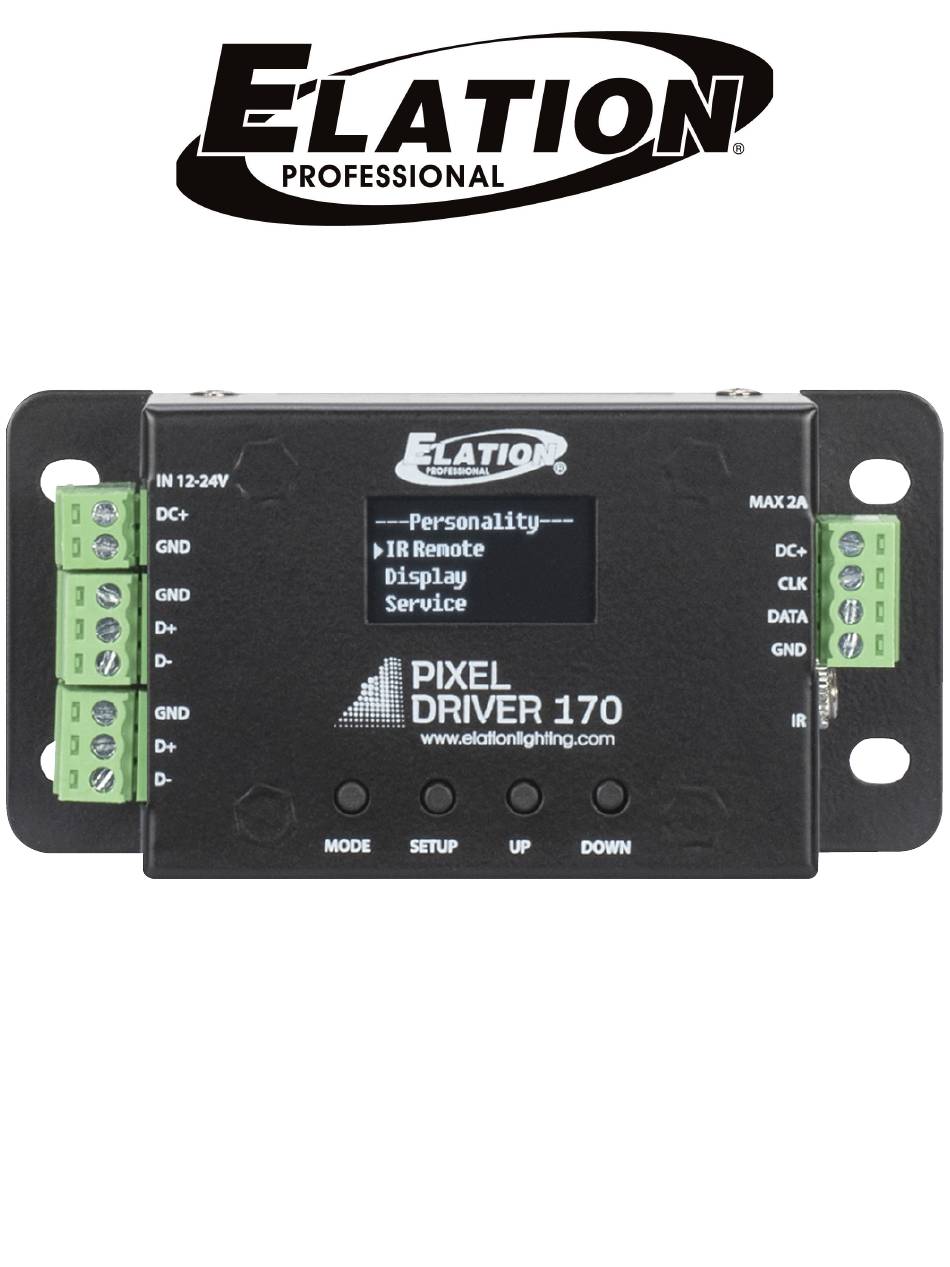

- Page 1 PIXEL DRIVER 170 User Manual...
- Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online.
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation Remote Control Operation Control Panel System Menu DMX Traits Pixel Groups Color Macros Dimensional Drawings Specifications... -
Page 4: General Information
4-pin Cable, 1-meter length (x1) • IR Receiver Cable, 1-meter length (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. -
Page 6: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 SAFETY GUIDELINES For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit! • Be sure to save the packing carton in the unlikely event the device may have to be returned for service.
-
Page 8: Overview
OVERVIEW... -
Page 9: Installation
INSTALLATION FLAMMABLE MATERIAL WARNING! Keep drive a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics. DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! The driver MUST be installed following all local, national, and country commercial electrical and •... - Page 10 INSTALLATION ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. The device connections are as follows. See the diagram below for reference. • Power Input Connections: top 2 slots on left side of unit (nearest to “Mode” button). These should be connected to a power source. •...
-
Page 11: Remote Control Operation
The Elation EL-IR remote is a handheld IR remote control which allows wireless control of the Pixel Driver 170 LED tape driver. One EL-IR is included in the box with every Pixel Driver 170. With the EL-IR, you can wirelessly select from and run the 10 built-in shows, select show 11 to randomly play shows 1-10, control show speed and fade, select from the 11 built in static colors, set a desired intensity via the dimmer controls, and blackout via the Off button. -
Page 12: Control Panel
CONTROL PANEL The Pixel Driver 170 features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the SETUP button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options. -
Page 13: System Menu
SYSTEM MENU 001 - 512 Address Total number of 001 - 170 Pixel Count pixels that the driver shall control Sets the number Default = 1x170; see Pixel Groups Pixel Groups and size of pixel section for full list of options groups DMX CONTROL Displays the num-... -
Page 14: Dmx Traits
DMX TRAITS CHANNEL PIXEL# DMX VALUE FUNCTION Red, 0% - 100% 000 - 255 Green, 0% - 100% 000 - 255 Blue, 0% - 100% 000 - 255 Red, 0% - 100% 000 - 255 Green, 0% - 100% 000 - 255 Blue, 0% - 100% 000 - 255 Red, 0% - 100%... -
Page 15: Pixel Groups
PIXEL GROUPS The number of pixels that this device can control is limited by the available number of DMX control channels. The device has a total of 512 available DMX control channels, and each pixel requires three channels (red, green, and blue) to operate. Therefore, the maximum number of pixels that can be controlled in standard configuration is 170: 170 pixels x 3 channels per pixel = 510 channels, which is the maximum number of 3-channel groups that can be accommodated without exceeding the 512 channel limitation. - Page 16 PIXEL GROUPS Pixel Pixel Pixel Group Options Pixel Group Options Count Count 1x33, 3x11, 11x3, 33x1 1x2, 2x1 1x34, 2x17, 17x2, 34x1 1x3, 3x1 1x35, 5x7, 7x5, 35x1 1x36, 2x18, 3x12, 4x9, 6x6, 9x4, 12x3, 1x4, 2x2, 4x1 18x2, 36x1 1x5, 5x1 1x37 1x6, 2x3, 3x2, 6x1 1x38, 2x19, 19x2, 38x1 1x39, 3x13, 13x3, 39x1 1x8, 2x4, 4x2, 8x1...
- Page 17 PIXEL GROUPS Pixel Pixel Pixel Group Options Pixel Group Options Count Count 1x62, 2x31, 31x2, 62x1 1x91, 7x13, 13x7, 91x1 1x63, 3x21, 7x9, 9x7, 21x3, 63x1 1x92, 2x46, 4x23, 23x4, 46x2, 92x1 1x64, 2x32, 4x16, 8x8, 16x4, 32x2, 64x1 1x93, 3x31, 31x3, 93x1 1x65, 5x13, 13x5, 65x1 1x94, 2x47, 47x2, 94x1 1x66, 2x33, 3x22, 6x11, 11x6, 22x3, 33x2, 1x95, 5x19, 19x5, 95x1...
- Page 18 PIXEL GROUPS Pixel Pixel Pixel Group Options Pixel Group Options Count Count 1x119, 7x17, 17x7, 119x1 1x146, 2x73, 73x2, 146x1 1x120, 2x60, 3x40, 4x30, 5x24, 6x20, 1x147, 3x49, 7x21, 21x7, 49x3, 147x1 8x15, 10x12, 12x10, 15x8, 20x6, 24x5, 1x148, 2x74, 4x37, 37x4, 74x2, 148x1 30x4, 40x3,60x2, 120x1 1x149 1x121, 11x11, 121x1...
-
Page 19: Color Macros
COLOR MACROS Macro Name Green Blue Macro Name Green Blue Values Values 128 - 135 Light Steel Blue 001 - 007 Bastard Amber 136 - 143 Light Sky Blue 008 - 015 Medium Amber 144 - 151 Sky Blue 016 - 023 Pale Amber Gold 152 - 159 Brilliant Blue... -
Page 20: Dimensional Drawings
DIMENSIONAL DRAWINGS Dimensions may not be drawn to scale. -
Page 21: Specifications
SPECIFICATIONS CONTROL / CONNECTIONS 3-Button OLED Display 1 DMX Universe (170 Pixels) EL IR Remote (Included) DMX Input via 3pin Phoenix connector block DMX Output via 3pin Phoenix connector block LED Tape Out via 4pin Phoenix connector block SIZE / WEIGHT Length: 3.98”...
