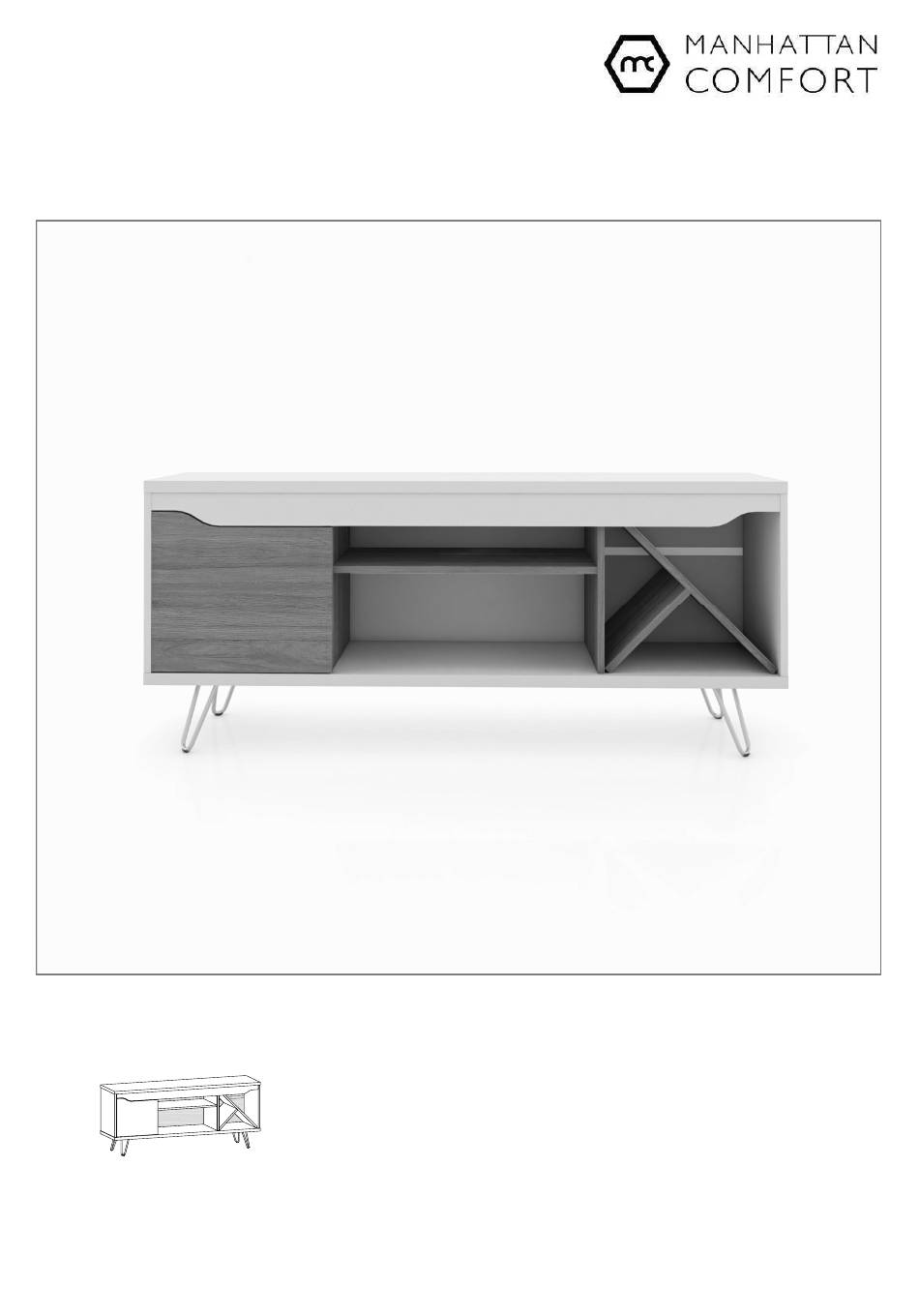

- Page 1 888-230-2225 help@manhattancomfort.com Baxter TV Stand 53.54 Model # 216BMC1, 216BMC12, 216BMC2, 216BMC21, 216BMC6, 216BMC8, 216BMC9, 216BMC94 Ed. 003, 2019/02 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE REAR VIEW FINAL APPEARANCE - FRONT VIEW n.° ID Parts Identification (Description) Quantity Left Partition Right Partition Middle Shelf Top Panel Left Side Panel Right Side Panel Front Frame Base Largest Part of the divider "T" Smaller Part of the divider "T"...
- Page 3 TOOLS NEEDED INCLUDED IN THE PACKAGE...
- Page 4 STEP 1 DETAIL 1 Preparing the door: • Fix the hinges (J) in the Door (13) with bolts (K), as shown in DETAIL 1. STEP 2 • Connect the Shelf (03) into Partitions (01) and (02) with dowels (A) and bolts (B). STEP 3 DETAIL 2 •...
- Page 5 STEP 5 DETAIL 3 BOTTOM VIEW / POSITION OF THE FEET • Fix the metallic feet (14) under the Base (08) with bolts (I). Pay attention to the position of the feet, as shown in DETAIL 3. • Apply the adhesive protective felt to the lower end of the feet (14).
- Page 6 STEP 9 • Connect the Lower Back Panel (11) and the Upper Back Panel (12) with metal plates (G), nails (H) and Plastic Profiles (15), applying them to the positions shown in drawing. REAR VIEW STEP 10 Installing the door (13): •...
