8. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.

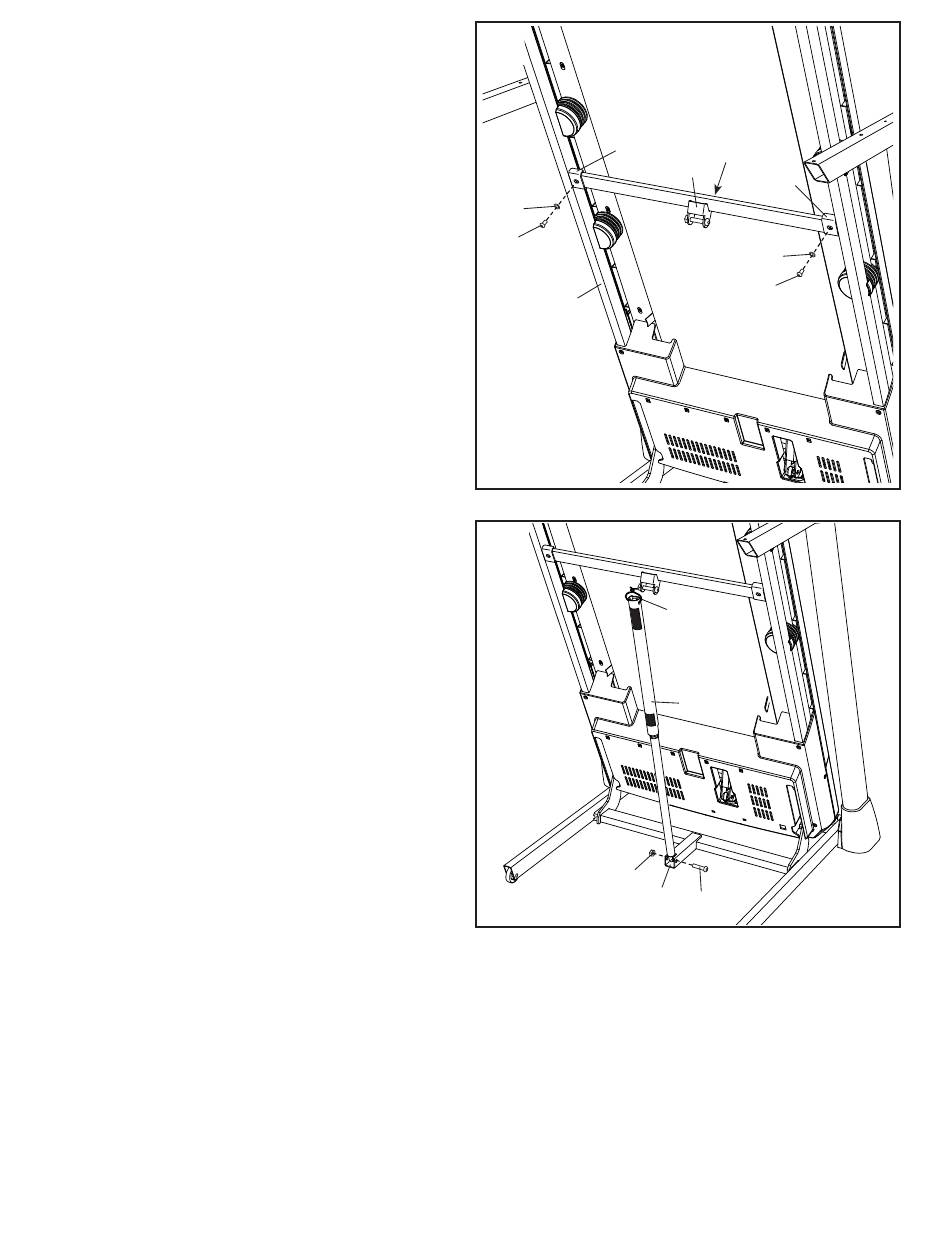

Raise the Frame (56) to the upright position.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 10 is completed.
Orient the Latch Crossbar (38) as shown. Make
sure that the "This side toward belt" sticker
(F) is facing the treadmill. Attach the Latch
Crossbar to the brackets (G) on the Frame (56)
with two 5/16" x 3/4" Screws (25) and two 5/16"
Star Washers (11).
9. Remove the 5/16" Nut (12) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (94).
Next, orient the Storage Latch (53) as shown.
Attach the lower end of the Storage Latch (53)
to the bracket on the Base (94) with the 5/16" x
1 3/4" Bolt (6) and the 5/16" Nut (12).
Then, raise the Storage Latch (53) to a vertical
position, and remove the tie (H).
