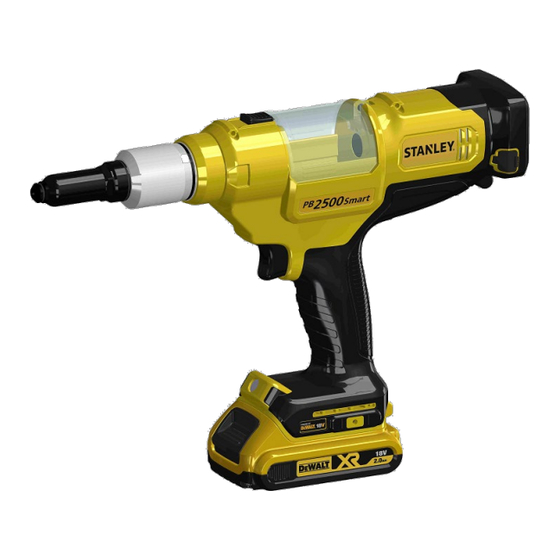

- Page 1 Accessories Manual PB2500 Smart Blind rivet tool Battery Power Tool...
-
Page 2: Original Inst Ruction
The information provided may not be reproduced and/or made public in any way and through any means (electronically or mechanically) without prior explicit and written permission from STANLEY Engineered Fastening. The information provided is based on the data known at the moment of the introduction of this product. - Page 3 personnel. Do not dismantle this tool without prior reference to the maintenance instructions. Do not modify the tool in any way. Any modification to the tool is undertaken by the customer and will be the • customer’s entire responsibility and void any applicable warranties. Disconnect the battery from the tool before performing any maintenance, attempting to adjust, fit or remove a •...
- Page 4 These chargers are not intended for any uses other than charging DEWALT® rechargeable batteries. Any other • uses may result in risk of fire, electric shock or electrocution. Do not expose charger to rain or snow. • Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and •...
- Page 5 CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.
- Page 6 STANLEY Engineered Fastening policy is one of continuous product development and improvement and we reserve the right to change the specification of any product without prior notice.
-
Page 7: Nose Assemblies
STANLEY Engineered Fastening policy is one of continuous product development and improvement and we reserve the right to change the specification of any product without prior notice. Nose Assemblies Nose equipment varies according to the blind rivet type being installed. Each nose assembly represents a unique set of components which can be ordered individually. - Page 8 Placing capacity chart PLACING CAPACITY PB2500 Smart Rivet Type 2.4mm 3.0mm 3.2mm 4.0mm 4.8mm 5.0/6.0/ 4.3mm [3/32”] [1/8”] [5/32”] [3/16”] 7.0mm OPEN END ● ● ● ● ● CLOSED END ● ● ● AVEX®/ ● ● ● ● STAVEX® AVINOX®/ ●...
- Page 9 Material (Body/Mandrel) Size Rivet Type NiCu/St, St/St, SS/St, All Mat'ls Al/Al Al/St, Al/SS NiCu/SS SS/SS Open End TRM00824 Closed End TP124-545* HRrivets® TRM00825 TRM00824 TRM00825 TLrivets® TRM00824 Sealed Tight Rivet™ TRM00416* Avex® TRM00824 Avex® Splined TRM00825 4.0mm [5/32"] Stavex® TRM00825 Avinox®...
- Page 10 Jaw and Jaw pusher chart Jaw Pusher Size Rivet Type Stainless Stainless Mandrel Mandrel 2.4mm [3/32"] Open End PRG540-46B* PRG540-46B* TP124-547* TP124-547* Open End 3.0mm Pull-Thru 71210-15001 PRG540-46B* TP154-502 TP154-502 Avex® Open End TP154-502 TP124-638* Closed End TP154-502 TP124-638* HRrivets® TP154-505 TP124-618* Avex®...
- Page 11 Jaw Pusher Size Rivet Type Stainless Stainless Mandrel Mandrel 4.3mm T-Lok® 71210-15001 PRG540-46B* TP154-500 TP124-620* Open End Closed End HRrivets® TLrivets® UG rivet POP-POLYRIV® T-Rivet Avex® Stavex® 4.8mm [3/16"] 71210-15001 PRL650-01* TP154-500 TP124-620* Avinox® Avibulb LSR / Bulbex® T-Lok® Avdel® Interlock®...
- Page 12 Avdel®, Avex®, Avibulb®, Avinox®, Bulbex®, Hemlok®, Interlock®, Klamp-Tite®, Monobolt®, POP®, ProSet®, Stavex® and T-Lok® are registered trademarks of Stanley Black & Decker, Inc. and its affiliates. The names and logos of other companies mentioned herein may be trademarks of their respective owners.
