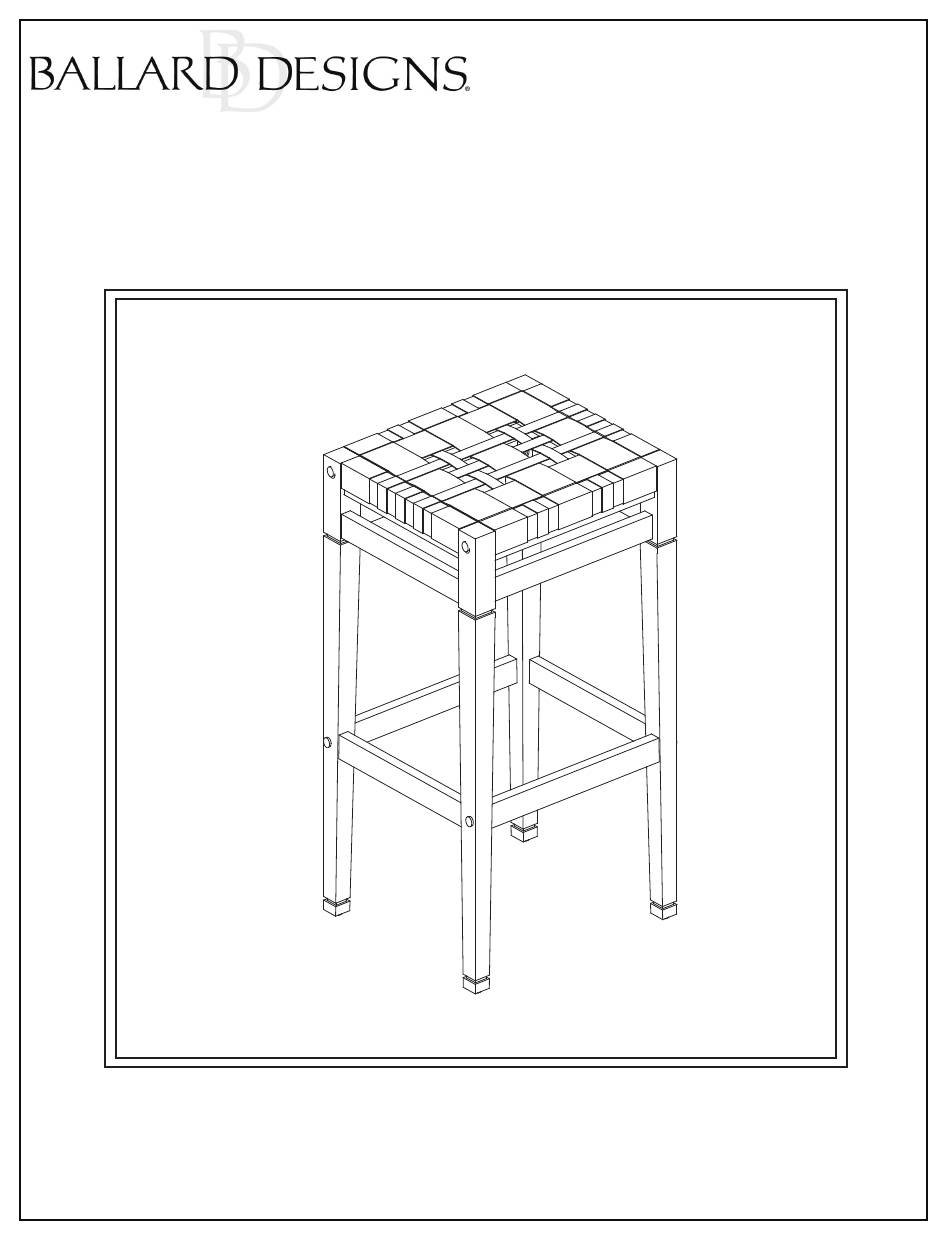

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Delmar Bar Stool ITEM NUMBER: JC336 ASSEMBLED DIMENSIONS : 30”H x 18”W x 16”D PRODUCTS ARE NOT INTENDED MADE IN VIETNAM FOR COMMERCIAL USE. UPDATED: 10-21-2019 Page 1 of 4...
- Page 2 REQUIRED TOOLS: Ltr. Qty. Hardware Included Allen Wrench (Included) -Two person assembly suggested. Large Screw Remove all parts, hardware and protective packaging from carton and carefully arrange on a clean, Small Screw level, padded surface. NOTE: To avoid accidentally Wood Plug discarding small parts or hardware, retain all carton contents until assembly and installation are complete.
- Page 3 STEP 1: Attach Seat (G) and both Lower Cross Bars (H) to Leg (E) using Large Screws (A). Tighten using Allen Wrench (D) STEP 2: Insert dowel on end of each Upper Cross Bar (F) into holes in Leg (E). Fit remaining Leg onto open side as shown.
- Page 4 STEP 3: Secure both Upper Cross Bars (F) to each Leg (E) by inserting Small Screw (B) into open holes and firmly tightening using Allen Wrench (D). STEP 4: Insert a Wood Plug (C) into each open Screw Hole in sides of each Leg (E) Cleaning &...
