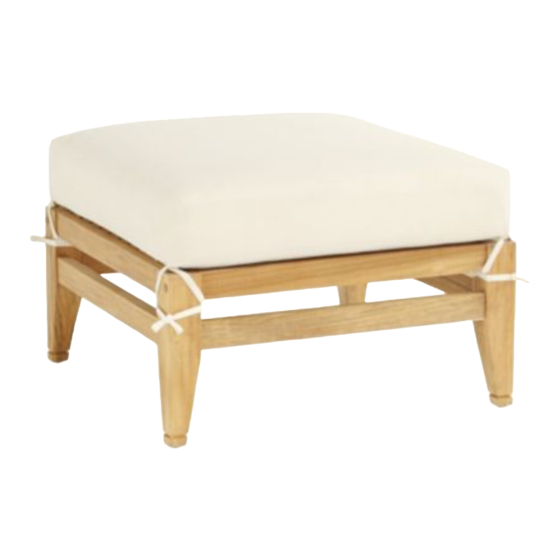

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Del Mar Ottoman ITEM NUMBER: JC307 DIMENSIONS OF ITEM ASSEMBLED: 12” H x 26.5” W x 26.5” D PRODUCTS ARE NOT INTENDED MADE IN VIETNAM FOR COMMERCIAL USE. UPDATED: 11/19/18 Page 1 of 4...
- Page 2 Ltr. Qty. Hardware Included TOOLS NEEDED: -Two person assembly suggested. Large Screws NOTE: When unpacking, lay the parts on a padded surface Small Screws such as the packaging provided. Be sure to locate all hardware before throwing away any packaging. Plugs Allen Wrench Ltr.
- Page 3 STEP 1: Insert the Pegs on the ends of the Seat (F) and Support Bars (G) into the Legs (E). Secure using the Large Screws (A) and the Allen Wrench (D). STEP 2: Secure the Legs (E) into the Support Bars (G) from underneath using the Small Screws (B) and Allen Wrench (D).
- Page 4 STEP 3: Insert the Plugs (C) into all of the Screw Holes on the Legs (E). STEP 4: Place the Cushion (H) on the Seat (F). Customer Service: 800-367-2810 Page 4 of 4 Online: www.ballarddesigns.com...
