Customer Service: 800-367-2810
Online: www.ballarddesigns.com

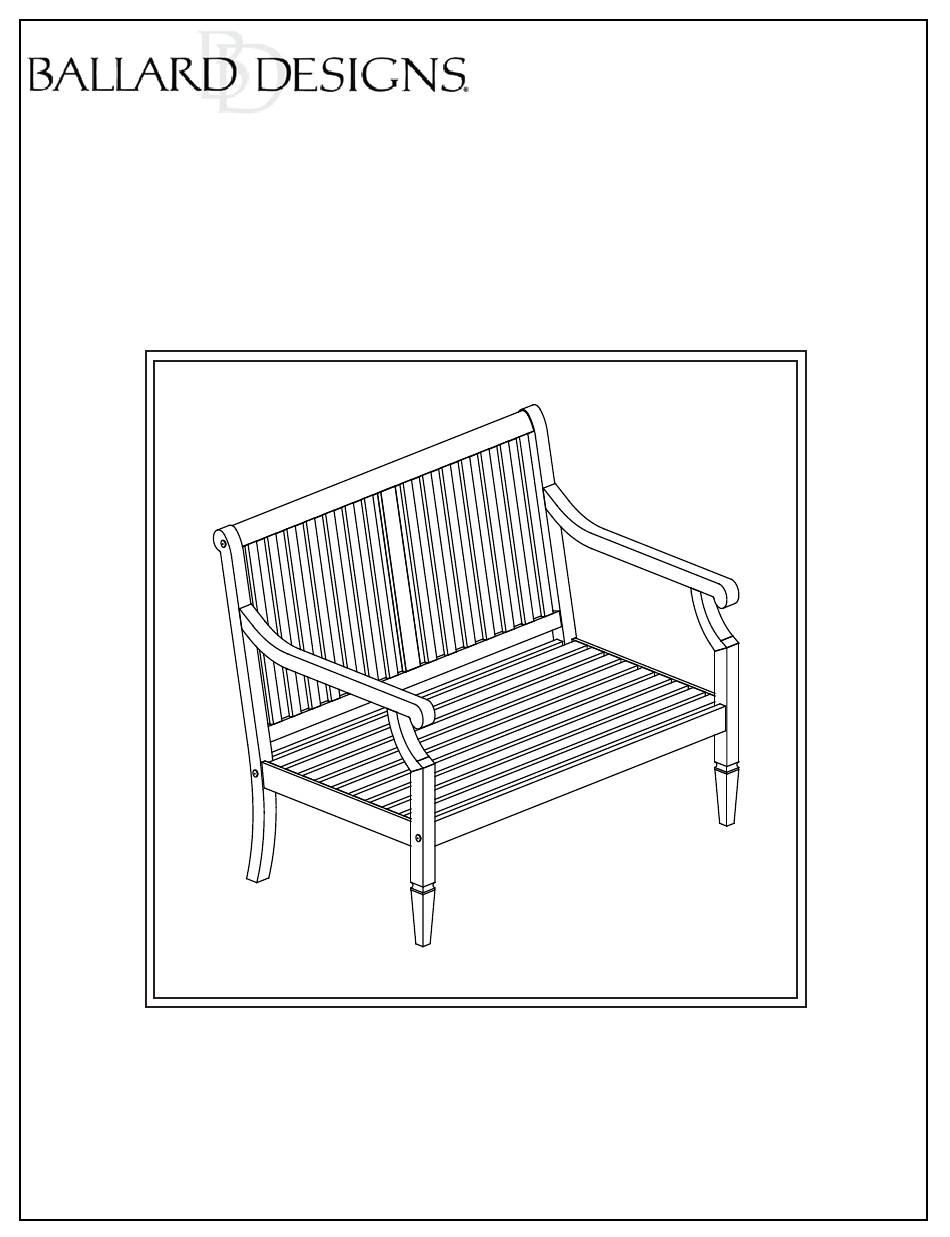

PRODUCT NAME: Madison Loveseat
ITEM NUMBER: JC025
DIMENSIONS OF ITEM ASSEMBLED: 35 1/4"H x 51 3/4"W X 34 1/2"D
PRODUCTS ARE NOT INTENDED
MADE IN VIETNAM
FOR COMMERCIAL USE.
UPDATED: 11/19/2013
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs Madison Loveseat JC025
Summary of Contents for Ballard Designs Madison Loveseat JC025
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Madison Loveseat ITEM NUMBER: JC025 DIMENSIONS OF ITEM ASSEMBLED: 35 1/4”H x 51 3/4”W X 34 1/2”D PRODUCTS ARE NOT INTENDED MADE IN VIETNAM FOR COMMERCIAL USE. UPDATED: 11/19/2013 Page 1 of 4...
- Page 2 Ltr. Qty. Hardware Included 90mm Allen Screws TOOLS NEEDED: Assembly requires 2 people. Screw Plugs Allen Wrench Ltr. Qty. Components Left Arm (D) Right Arm (E) Seat (F) Back (G) Seat Cushions (H) Back Cushions (I) Customer Service: 800-367-2810 Page 2 of 4 Online: www.ballarddesigns.com...
- Page 3 STEP 1: On a smooth, clean surface, assemble the Loveseat on it’s back. Insert the protruding parts on the Back (G) and Seat (F) into the Left Arm (D). Hand tighten the 90mm Allen Screws (A) into the Left Arm (D). DO NOT over tighten the Screws. STEP 2: While the Assembly is still laying on it’s back, slide the Right Arm (E) onto the protruding parts on the Back (G) and Seat (F).
- Page 4 STEP 3: Set the assembled Loveseat upright and insert the Screw Plugs (B) into the Left Arm (D) and Right Arm (E). STEP 4: Place the Seat Cushions (H) and Back Cushions (I) on the Loveseat. Clean & Care Please refer to the care instructions on the hang tag. Customer Service: 800-367-2810 Page 4 of 4 Online: www.ballarddesigns.com...
