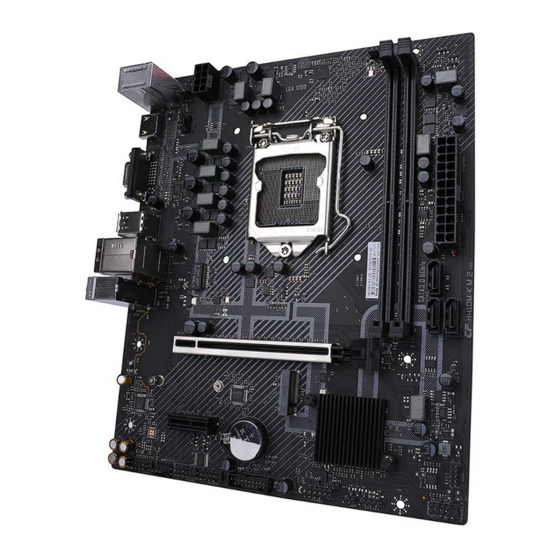

Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality
assurance.
H410M-K M.2 V20 motherboard based on Intel H410 Chipset, support Intel LGA1200 Comet Lake-S series processors, support dual
channel DDR4 2933/2800/2666/2400/2133MHz memory, support PCI-E 3.0 standard.
The motherboard provides 1*HDMI port,1*VGA port,2*DDR4 memory slots,4*SATA3.0 ports,onboard 6-CH audio chipset,onboard
1000M LAN chipset, it's a Cost-effective motherboard !
The motherboard provides 1*M.2 SSD slot, 1*PCI Express3.0 x16 slot,1*PCI Express 3.0 x1 slots,it had good extensibility !
1.1.Packing Contents
1* Colorful H410M-K M.2 V20 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
1.2.MOTHERBOARD SPEC
·Support Intel LGA1200 Comet Lake-S series processors
CPU
·Tips:when using 95W processor, please match the
professional CPU cooling fan!
Chipset
·Intel H410
·Offer 2 DIMM slots
·Support DDR4 2933/2800/2666/2400/2133 MHz
Main
·Support XMP memory and Dual-Channel
Memory
·Tips:the frequency of memory overclocking also depends
on the performance of matching CPU and memory itself!
·1*PCI Express 3.0 x16 slot
Slots
·1*PCI Express 3.0x1 slot
·1*M.2 SSD slots(support PCIE X2&SATA)
Storage
·3*SATA3.0 port
USB
·4*USB3.2 Gen1+6*USB2.0(including the headers)
·All USB ports support charging in shutdown state
·1*PS/2 Mouse or Keyboard port
·1*LAN port
·4*USB 2.0 ports
Rear IO
·2*USB3.2 Gen1 ports
Connector
·3*Audio ports(audio in,audio out, microphone)
·1*VGA port
·1*HDMI port
H410M-K M.2 V20
·1*24-pin ATX Power connector
·1* 8-pin ATX 12V Power connector
·1*Front panel audio connector ( F_AUDIO1)
·1*System panel connector ( FPANEL1)
·1*USB2.0 header ( FUSB1)
·1*USB3.2 Gen1 header ( FUSB3)
·1*PC speaker connector ( SPEAK1)
Other
·1*COM header ( JCOM1)
Connectors
·1*CMOS jumper ( JBAT)
·1*CPU fan header ( CFAN1)
·2*System fan headers ( SFAN1, SFAN2)
·1*DEBUG header ( JDEBUG)
·1*ME header ( JME)
·1*PS2 Mouse/Keyboard boot jumper ( JPS2)
·1*Flash Bios header ( JBIOS1)
High
Definition
·Onboard 6-channel High Definition audio chipset
Audio
·Onboard 1000M LAN
Onboard
LAN
·Provides 10/100/1000Mb Ethernet
