VGA
HDMI
PS/2
+
2*U2.0
2*U2.0
1
LAN
+
2*U3.1G1
AUDIO
F_AUDIO
Product Features
Intel H610 chipset,Supports 13th/12th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors.
There is 1 PCIe 4.0 x16 slot，1 PCIe 3.0 x1 slot and 1 M.2 SSD slot on this
motherboard, easily meet your expansion needs.
There are 6 USB ports at the rear, and 4 USB ports at the front can be expanded,
which can be connected to various devices at the same time.
With Gigabit LAN (1000M) and a 5.1-channel audio which provides excellent
performance and experience.

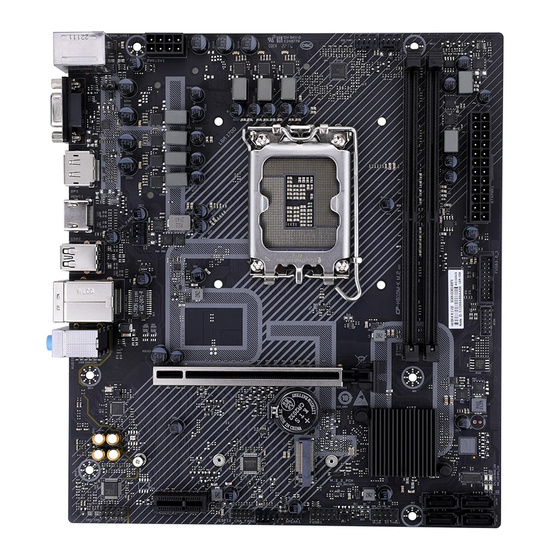

H610M-E M.2 V20
14
JPS2
CPU_8P
2280
BATTERY
PCIe 3.0×1
CHA_FAN2
CHA_FAN1
ESPI_HEADER
JME
6
2
11
13
Motherboard User Manual
AIO_PUMP
LGA 1700
2242
PCIe 4.0×16
Intel
H610
CLR_CMOS
FUSB2.0_1
COM
SATA_3
SATA_2
9
4
10
3
ATX_PWR
R
SPEAK
F_PANEL
SATA_1
7
5
12
8
Advertisement
Table of Contents
Related Manuals for Colorful H610M-E M.2 V20
Summary of Contents for Colorful H610M-E M.2 V20

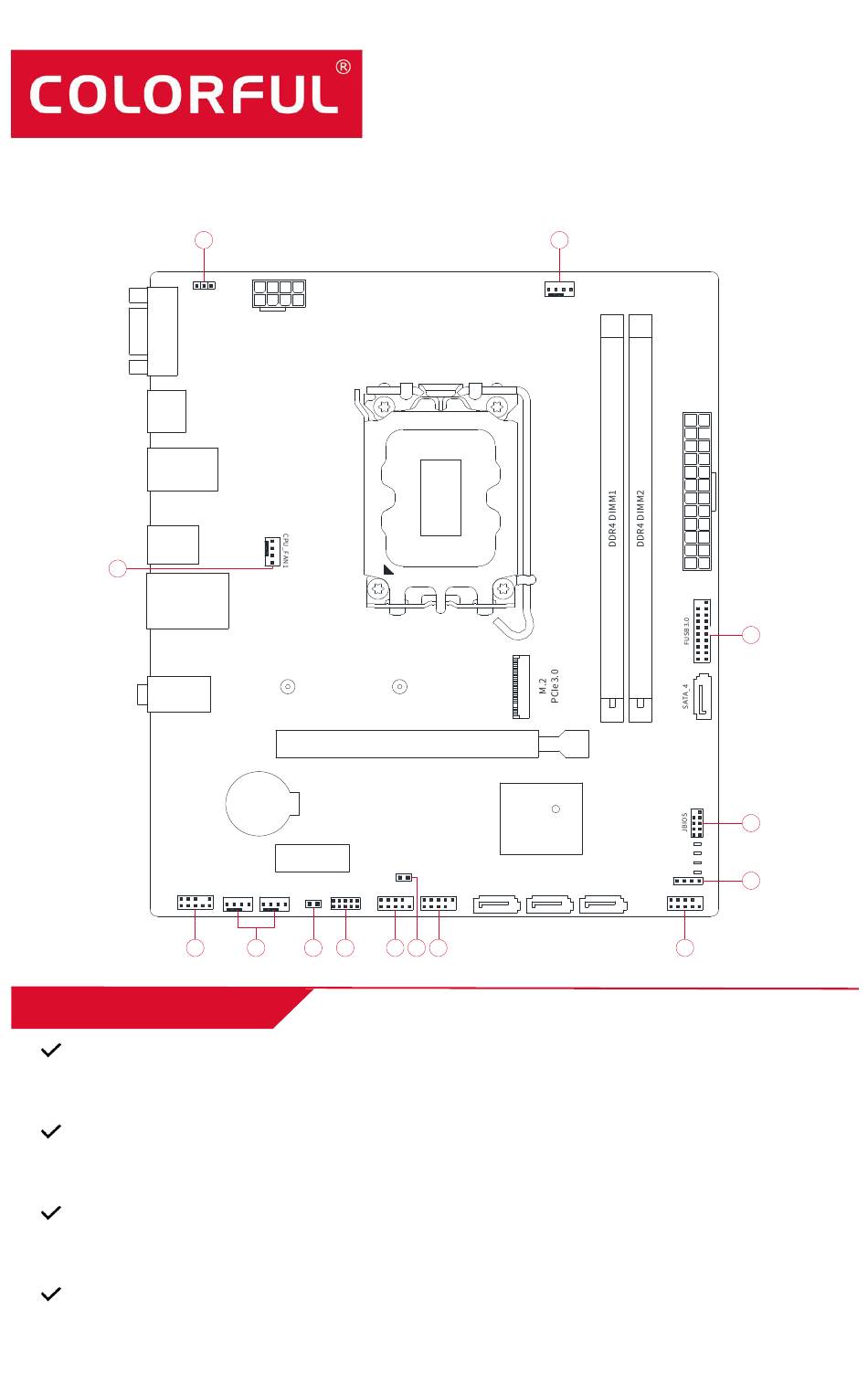

- Page 1 Motherboard User Manual H610M-E M.2 V20 JPS2 AIO_PUMP CPU_8P ATX_PWR HDMI LGA 1700 PS/2 2*U2.0 2*U2.0 2*U3.1G1 AUDIO 2280 2242 PCIe 4.0×16 BATTERY Intel H610 PCIe 3.0×1 CLR_CMOS SPEAK F_AUDIO FUSB2.0_1 F_PANEL CHA_FAN2 CHA_FAN1 ESPI_HEADER SATA_3 SATA_2 SATA_1 Product Features Intel H610 chipset,Supports 13th/12th Gen Intel®...
- Page 2 (*Note: The blue in the audio interface is the audio input, the green is the audio output, and the pink is the microphone interface) Hardware Installation You can scan the QR code on the right to obtain the official quick operation guide for hardware installation provided by Colorful to install it onto your PC quickly.
- Page 3 Supports 13th Gen and 12th Gen Intel Core™, Pentium® and Celeron® processors that fit the LGA 1700 slot of the motherboard *Please visit the official website of Colorful (www.colorful.cn) for the latest supported processor list 2 DDR4 memory slots, supporting up to 64 GB of memory (a single slot can support a capacity of up to 32 GB) ●Support DDR4-3200/2933/2666/2400MHz memory...
- Page 4 Front 1×USB 2.0 pin, support additional 2 USB 2.0 Type-A interfaces (FUSB2.0) USB expansion 1×USB 3.1 Gen 1 pin, support additional 2 USB 3.1 Gen 1 Type-A interfaces interfaces (FUSB3.0) Dimension of M-ATX Form Factor motherboard 225mm x 194mm Pins and Jumpers CPU fan pin (CPU_FAN) There is one 4-pin CPU fan pin on the motherboard.
- Page 5 Front USB 3.1 Gen 1 pin (F_USB3.0) There is one front USB 3.1 Gen 1 expansion pin on the motherboard, which can be expanded to two USB 3.1 Gen 1 Type-A and it's compatible with USB 2.0 devices. Front audio pin (F_AUDIO) The audio interface on the front panel of the case can be connected to the front audio pin through the audio cable in the case, allowing audio input/output and other functions through the audio interface on the front...
- Page 6 ME write protection jumper (JME) The ME write protection jumper is used to control whether the BIOS firmware can be written. When the ME jumper is short-circuited, the BIOS write protection function is disabled. At this time, the BIOS can be updated. BIOS burner pin (JBIOS) BIOS burner pins can be used to upgrade the motherboard BIOS by connecting to the BIOS burner.
- Page 7 You can open the driver installation program in the CD-ROM to quickly install the onboard network adapter, sound card, and chipset drivers. You can also visit the official website of Colorful (http://www.colorful.cn), search for the product model, and find the corresponding driver in the technical support list to download. The onboard LAN Driver can also be downloaded by scanning the QR code below.
- Page 8 Road, Meidu Community, Meilin Street, Futian District, Shenzhen Copyright and Notice: The copyright of this motherboard manual belongs to Colorful. Colorful does not guarantee the complete accuracy of the content of this manual. In case of any ambiguity caused by typographical or language errors, Colorful reserves the right to final interpretation and modification.
