Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality
assurance.

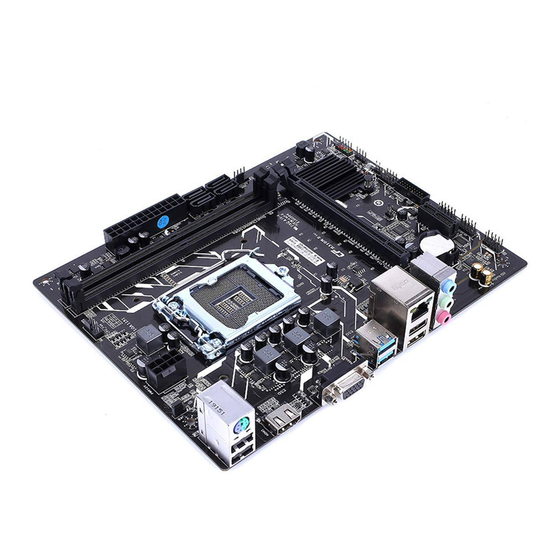

H310M-E V21 motherboard based on Intel H310 Chipset, support Intel LGA1151 Coffee Lake-S processors, support dual channel
DDR4 2133/2400/2666MHz memory, support PCI-E 3.0 standard.
The motherboard provides 1*HDMI port,1*VGA port,2*DDR4 memory slots,4*SATA3.0 ports,6*USB2.0&4*USB3.0 ports(including
the headers),onboard 6-CH audio chipset,onboard 1000M LAN chipset, it's a Cost-effective motherboard ！
The motherboard provides 1*PCI Express3.0 x16 slot,1*PCI Express x1 slot,it had good extensibility ！
1.1.Packing Contents
1* Colorful H310M-E V21 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
1.2.MOTHERBOARD SPEC
CPU
·support Intel LGA1151 Coffee Lake-S processors
Chipset
·Intel H310
Main
·Dual-Channel DDR4 2133/2400/2666MHz support
Memory
·Offer 2 DIMM slots
·1*PCI Express 3.0 x16 slot
Slots
·1*PCI Express x1 slo
Storage
·4*SATA3.0 port
·4*USB3.0+6*USB2.0(including the headers)
USB
·1*PS/2 Mouse and Keyboard port
·1*LAN(RJ45) port
·4*USB 2.0 ports
Rear IO
·2*USB 3.0 ports
Connector
·6-Channel Audio I/O
·1*VGA port
·1*HDMI port
H310M-E V21
·1*24-pin ATX Power connector
·1* 8-pin ATX 12V Power connector
·1*Front panel audio connector （ F_AUDIO）
·1*System panel connector （ F_PANEL）
·1*USB2.0 header （ FUSB1）
·1*USB3.0 header （ F_SUSB1）
Other
·1*PC speaker connector （ SPEAK）
Connectors
·1*COM header （ JCOM）
·1*CMOS jumper （ CLR_CMOS）
·2*FANs headers （ CPU_FAN， SYS_FAN）
·1*DEBUG header （ DEBUG）
·1*ME header （ ME）
·1*PS2 Mouse/Keyboard boot jumper （ JKB）
High
·Onboard 6-channel High Definition audio chipset
Definition
·Support 3D surround sound
Audio
·Onboard 1000M LAN
Onboard
LAN
·Provides 10/100/1000Mb Ethernet
Advertisement
Related Manuals for Colorful H310M-E V21
Summary of Contents for Colorful H310M-E V21
- Page 1 Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality assurance. H310M-E V21 motherboard based on Intel H310 Chipset, support Intel LGA1151 Coffee Lake-S processors, support dual channel DDR4 2133/2400/2666MHz memory, support PCI-E 3.0 standard.
-
Page 2: Hardware Installation
1.3.Motherboard Layout 1、 PS/2 and USB2.0 ports 2、 Connect to HDMI monitor 3、 Connect to VGA monitor 4、 Connect to USB3.0 devices 5、 Connect to USB2.0 devices and LAN 6、 Audio devices 7、 PS2 Mouse/Keyboard boot jumper 8、 8-pin Power connector 9、... - Page 3 2.1.Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions. Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equip- ment from/to the computer chassis. 2.2.Preparing the Motherboard The motherboard shipped in the box does not contain a CPU or memory.
- Page 4 The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! 2.3.Installing Memory DIMMs Your new motherboard has 2 slots for DDR4 memory. They support dual channel DDR4 memory technology. There must be at least one memory bank populated to ensure normal operation.
- Page 5 2.5.Installing the I/O Shield The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects internal compo- nents from dust and foreign objects, and promotes correct airflow within the chassis. Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and make sure it fits securely.
- Page 6 2.7.2.Serial ATA 3.0 6Gb/s connectors (7-pin) These connectors connect to Serial ATA 3.0 6Gb/s hard disk drives and optical drives via Serial ATA 3.0 6Gb/s signal cables. 2.7.3.USB 3.0 connectors This connector is for USB 3.0 devices. 2.7.4.USB2.0 connectors These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis.
- Page 7 2.7.5.System panel connector This connector supports several chassis-mounted functions. System power LED (2-pin PLED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. Hard disk drive activity LED (2-pin IDE_LED) This 2-pin connector is for the HDD Activity LED.
- Page 8 2.7.7.CPU, Chassis, and Power fan connectors 2.7.8.SPEAK header:SPEAK Connect the fan cables to the fan connectors on the This SPEAK header is for Speaker serial devices motherboard, making sure that the black wire of each cable matches the ground pin of the connector. 2.7.9.Front panel audio connector This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97 audio standard.
- Page 9 1or2 normal 1-2 clear CMOS Clear CMOS settings 2.7.11.COM header：JCOM This COM header is for COM serial devices 2.7.12.Debug header:DEBUG This Debug header is for Debug serial devices.
- Page 10 Turn of PS/2 Mouse/ Keyboard boot settings 2.7.14.Back Panel IO Connector <Backboard of H310M-E V21> Parts PS/2 Mouse or Keyboard Connector This connector is for a PS/2 mouse or Keyboard. The standard RJ-45 jack is for connection to single Local Area Network (LAN).
-
Page 11: Bios Setup
3.BIOS setup Entering BIOS Setup Power on the computer and the system will start the Power On Self Test (POST)process. When the message below appears on the screen, press <DEL> key to enter BIOS: Press F1 to Run Setup Press F2 to Load default values and continue Boot Option Priorities（how to install operating system）... -
Page 12: Copyright Notice
4.Copyright Notice Copyright This motherboard manual belongs to Colorful Technology and Development CO, LTD. No one is permitted to copy, change, or translate without our written permission. Disclaimer The products name we mentioned in this manual is only for identifying, all of the brands belong to other company.
