Colorful Technology Website:
http://www.colorful.cn
Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality
assurance.

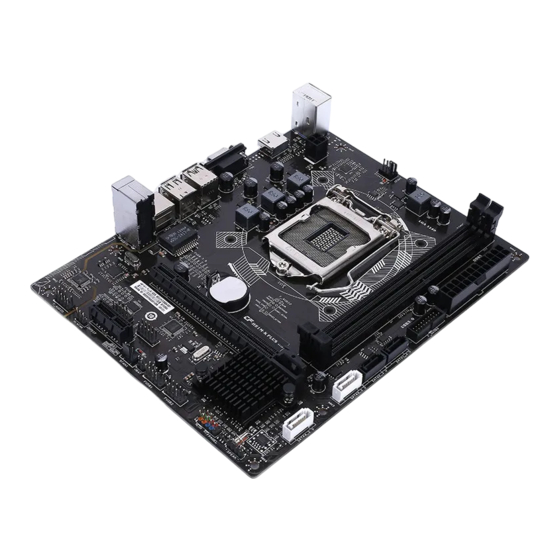

H81M-K PLUS V23B motherboard based on Intel H81 Chipset, support Intel LGA1150 Haswell processors, support dual channel
DDR3 1600/1333 /1066MHz memory, support PCI-E 2.0 standard.
The motherboard provides 1*HDMI port,1*VGA port,2*DDR3 memory slots,2*SATA2.0 and 2*SATA3.0 ports,8*USB2.0 and 2*USB3.0
ports(including the headers),onboard 6-CH audio chipset,onboard 1000M LAN chipset, it's a Cost-effective motherboard ！
The motherboard provides 1*PCI Express2.0 x16 slot,1*PCI Express x1 slot,it had good extensibility ！
1.1.Packing Contents
1* Colorful H81M-K PLUS V23B motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
1.2.MOTHERBOARD SPEC
CPU
·support Intel LGA1150 Haswell processors
Chipset
·Intel H81
Main
·Dual-Channel DDR3 1600/1333 /1066MHz support
Memory
·Offer 2 DIMM slots
·1*PCI Express 2.0 x16 slot
Slots
·1*PCI Express x1 slot
Storage
·2*SATA2.0 and 2*SATA3.0 ports
·8*USB2.0+2*USB3.0 (including the headers)
USB
·1*PS/2 Mouse and Keyboard port
·1*LAN(RJ45) port
·4*USB 2.0 ports
Rear IO
·6-Channel Audio I/O
Connector
·1*VGA port
·1*HDMI port
H81M-K PLUS V23B
·1*24-pin ATX Power connector
·1* 4-pin ATX 12V Power connector
·1*Front panel audio connector （ F_AUDIO）
·1*System panel connector （ FPANEL）
·2*USB2.0 header （ FUSB1,FUSB2）
·1*USB3.0 header （ F_SUSB3）
Other
·1*PC speaker connector （ SPEAK）
Connectors
·1*COM header （ JCOM）
·1*CMOS jumper （ JBAT）
·2*FANs headers （ CFAN1， SFAN1）
·1*DEBUG header （ JLPC）
·1*SPDIF header （ JSPDIF）
High
·Onboard 6-channel High Definition audio chipset
Definition
·Support 3D surround sound
Audio
·Onboard 1000M LAN
Onboard
LAN
·Provides 10/100/1000Mb Ethernet
Advertisement
Related Manuals for Colorful H81M-K PLUS V23B
Summary of Contents for Colorful H81M-K PLUS V23B
- Page 1 Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality assurance. H81M-K PLUS V23B motherboard based on Intel H81 Chipset, support Intel LGA1150 Haswell processors, support dual channel DDR3 1600/1333 /1066MHz memory, support PCI-E 2.0 standard.
-
Page 2: Hardware Installation
1.3.Motherboard Layout 1、 PS/2 mouse and keyboard ports 2、 Connect to HDMI monitor 3、 Connect to VGA monitor 4、 Connect to USB2.0 devices 5、 Connect to LAN 6、 Connect to Audio devices 7、 4-pin Power connector 8、 Fan connector （ CFAN1， SFAN1） 9、... - Page 3 2.1.Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions. Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equip- ment from/to the computer chassis. 2.2.Preparing the Motherboard The motherboard shipped in the box does not contain a CPU or memory.
- Page 4 The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! 2.3.Installing Memory DIMMs Your new motherboard has 2 slots for DDR3 memory. They support dual channel DDR3 memory technology. There must be at least one memory bank populated to ensure normal operation.
- Page 5 2.5.Installing the I/O Shield The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects internal compo- nents from dust and foreign objects, and promotes correct airflow within the chassis. Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and make sure it fits securely.
- Page 6 2.7.2.Serial ATA 2.0 3Gb/s and 3.0 6Gb/s connectors (7-pin) These connectors connect to Serial ATA (2.0 3Gb/s and 3.0 6Gb/s) hard disk drives and optical drives via Serial ATA (2.0 3Gb/s and 3.0 6Gb/s) signal cables. 2.7.3.Debug header:JLPC This Debug header is for Debug serial devices. 2.7.4.USB2.0 connectors These connectors are for USB 2.0 ports.
- Page 7 2.7.5.System panel connector This connector supports several chassis-mounted functions. System power LED (2-pin PLED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode. Hard disk drive activity LED (2-pin IDE_LED) This 2-pin connector is for the HDD Activity LED.
- Page 8 2.7.7.CPU, Chassis, and Power fan connectors 2.7.8.SPEAK header:SPEAK Connect the fan cables to the fan connectors on the moth- This SPEAK header is for Speaker serial devices erboard, making sure that the black wire of each cable matches the ground pin of the connector. 2.7.9.Front panel audio connector This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97 audio standard.
- Page 9 1or2 normal 1-2 clear CMOS Clear CMOS settings 2.7.11.COM header：JCOM This COM header is for COM serial devices 2.7.12.SPDIF header:JSPDIF This SPDIF header connect to SPDIF Digital audio module.it can be connected to the digital audio output terminal of the audio device, using the digital audio output instead of the conventional analog audio output.
- Page 10 2.7.13.USB3.0 connectors This connector is for USB 3.0 devices. 2.7.14.Back Panel IO Connector <Backboard of H81M-K PLUS V23B> Parts PS/2 Mouse or Keyboard Connector This connector is for a PS/2 mouse and Keyboard. The standard RJ-45 jack is for connection to single Local Area Network (LAN).
-
Page 11: Bios Setup
3.BIOS setup Entering BIOS Setup Power on the computer and the system will start the Power On Self Test (POST)process. When the message below appears on the screen, press <DEL> key to enter BIOS: Press F1 to Run Setup Press F2 to Load default values and continue Boot Option Priorities（how to install operating system）... -
Page 12: Technical Support
4.Copyright Notice Copyright This motherboard manual belongs to Colorful Technology and Development CO, LTD. No one is permitted to copy, change, or translate without our written permission. Disclaimer The products name we mentioned in this manual is only for identifying, all of the brands belong to other company.
