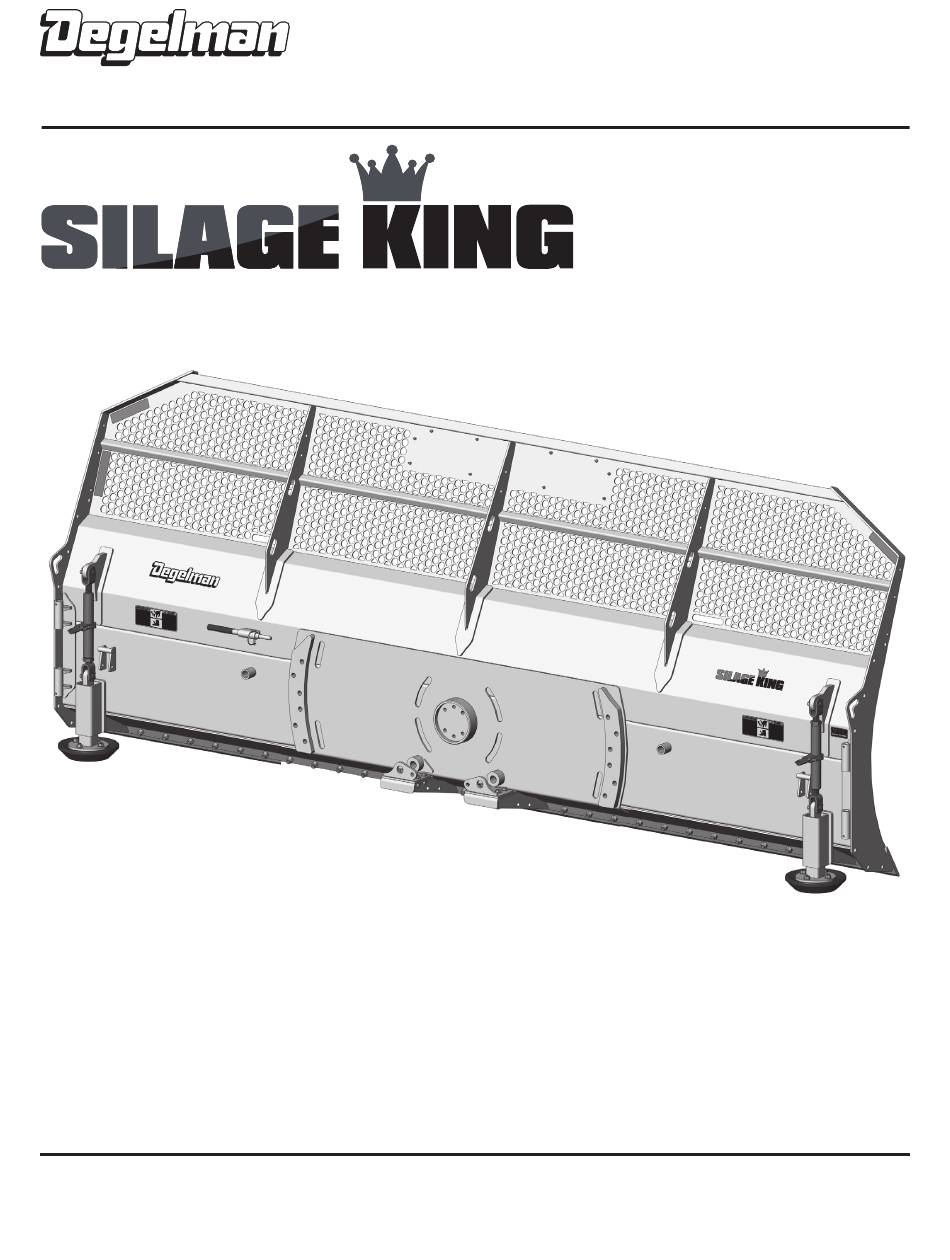

Degelman SILAGE KING Operator's & Parts Manual

Hide thumbs Also See for SILAGE KING:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR & PARTS
MANUAL
143415 v1.2
SILAGE KING SERIES
D E G E L M A N
I N D U S T R I E S
L P
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
D R I V E ,
BLADE
R E G I N A ,
S K ,
C A N A D A ,
S 4 P
3 B 1
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
for NANT/NAHT & HANT/HAHT Silage King Models
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILAGE KING and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Degelman SILAGE KING

Summary of Contents for Degelman SILAGE KING

  • Page 1 F A X 3 0 6 . 5 4 3 . 2 1 4 0 P H 3 0 6 . 5 4 3 . 4 4 4 7 for NANT/NAHT & HANT/HAHT Silage King Models 1 . 8 0 0 . 6 6 7 . 3 5 4 5...
  • Page 3 QUICK GUIDE INDEX Introduction Safety Operation Transport & Storage Blade Components Blade Attachments & Options Tilt Bell Assembly Blade Tilt Options Blade Hydraulic Options Fold-Back Overview for Hinge Kit Maintenance Optional Blade Attach/Detach (NANT & NAHT) Troubleshooting Warranty REFERENCE INFORMATION NANT (No-Angle with No-Tilt Model) NAHT...

  • Page 5: Proof Of Ownership

    D-lock or HQT (Hydraulic Quick-Tach) will travel while in use (unless otherwise stated). mounting system and hydraulic hook-up. The Silage King Dozer Blade is designed with three possible ranges of motion – Lift, Angle (optional) & Left Right Tilt (optional).

  • Page 6: Signal Words

    YOU are responsible for the SAFE operation and SAFETY ALERT SYMBOL maintenance of your Degelman implement. YOU must ensure that you and anyone else who is going to operate, maintain, or work around the machine be familiar with the operating and maintenance procedures, and related SAFETY information contained in this manual.

  • Page 7: General Safety

    • Turn engine off when hooking up hydraulics. department near your phone. TRANSPORTING Doctor • Lift blade up then hold with safety chain. Ambulance • Make sure SMV sign & reflectors are clean. Hospital • Use your hazard lights. Fire Department 143415 - Silage King Blade (01-June-2022)

  • Page 8: Operation

    Operation TO THE NEW OPERATOR OR OWNER TRACTOR PREPARATION The Degelman Silage King Dozer Blade is a push 1. Wheel Spacing type tractor attachment designed primarily for working with silage. Important: To avoid possible damage from over stressing tractor axles, use no tire combination...
  • Page 9 (This valve will bypass the hydraulic • Condition of cutting edge fluid and diminish the degrees that the blade was • Depth/skid shoe wear initially angled.) • Hydraulics: - Tractor’s oil reservoir - Condition of hoses, lines & fittings 143415 - Silage King Blade (01-June-2022)

  • Page 10: Transport And Storage

    Fluorescent Reflector, 2" x 9" • Do not permit children to play near the stored unit. Product Decals 143198 Degelman Logo, 36” lg 142009 Degelman Logo, 16-1/4” lg 143065 Silage King Decal, 16” lg 143415 - Silage King Blade (01-June-2022)
  • Page 11 SILAGE KING BLADE ASSEMBLY 118483 - Lock Nut, 1/4 - Unitorque (10) 118541 - Flat Washer, 1/4 (10) 117271 - Bolt, Carriage - 1/4 x 1 GR8 (10) 795093 - “Silage King” Nameplate (1) (16’ Blade Shown) Important: Install Jack with adjustment nut on top (RH side) and on bottom (LH side).
  • Page 12 118027 - Bolt, 5/8 x 2 GR8 (6) 795165 - Pin, Hinge (1) 795160 - Hinge Bracket (1) 143066 - Decal, 118086 - Bolt, 3/8 x 2-1/2 (2) Folded Back (1) 118417 - Lock Nut, 3/8 (2) 143415 - Silage King Blade (09-September-2022)
  • Page 13 Start with the “A” clamps, and shim until the blade holes line up adding up to 4 washers per bolt. If you run out of washers, 795131 - Center Skid Assembly (1) switch to “B” clamps and repeat. 143415 - Silage King Blade (01-June-2022)
  • Page 14 117270 - Bolt, 1 x 2-1/4 GR8 (12) 795095 - Shim, 20 Ga. (2) IMPORTANT: Add Blue Loctite to threads (Use shims as necessary during assembly) 131020 - Flat Washer, 1 F436 (12) 795116 - Tilt Bell Clamp Plate (4) 143415 - Silage King Blade (01-June-2022) -10-...
  • Page 15 249950 - Pin Head (4) IMPORTANT: Torque the support 118775 - Flat washer, 3/4 - F436 (8) arm bolts to 320 lb.ft (435 N.m). 118743 - Bolt, 3/4 x 2-1/4 (4) 143415 - Silage King Blade (01-June-2022) -11-...
  • Page 16 118538 - Flat Washer, 5/16 (2) 141697 - Relief Valve, 2500 PSI (1) 118105 - Bolt, 795229 - Relief 5/16 x 2-1/2 (2) Valve Bracket (1) (Mounts with existing Angle Pivot Pin hardware) 143415 - Silage King Blade (01-June-2022) -12-...
  • Page 17 LH Configuration - Reference Photo 141697 - Relief Valve, 2500 PSI (1) RH Configuration - Routing NOTE: Install Dust Refer to Tractor Caps when Tilt hoses Specific Fit-up are disconnected. Manual RH Configuration - Reference Photo 143415 - Silage King Blade (01-June-2022) -13-...
  • Page 18 141515 - Adaptor, 3/4 JIC-m x ORB (2) TSF TSF Refer to Tractor 141527 - Tee, 3/4 JIC-m x JIC-m x ORB (2) Specific Fit-up Manual 141697 - Relief Valve, 2500 PSI (1) Angle Connection Reference 143415 - Silage King Blade (01-June-2022) -14-...
  • Page 19 Fold-Back Overview for Hinge Kit FOLD-BACK OVERVIEW The following is a quick overview of the fold-back function of the one foot extension on the Silage King blade for customers who also purchased the optional hinge kit: SETTING ADJUSTABLE BRACKET POSITION...

  • Page 20: Maintenance Safety

    EVERY 8 HRS. Also, depending on your particular tractor CUTTING EDGE WEAR fit-up, grease/lubricate the following (if applicable): This Cutting Edge for the Silage King is reversible with - Lift Cylinder Pins (if applicable) 1-5/8” of wearable edge per side.

  • Page 21: Hydraulic Safety

    1600 (2175) 2290 (3110) Hardware - Hex, GR5 UNC (imperial) or P8.8 (metric) HYDRAULIC FITTING TORQUE Hoses - 3/8, ends come with 3/4 JIC female swivel. Size lb.ft (N.m) 75 (100) 90 (122) 143415 - Silage King Blade (01-June-2022) -17-...
  • Page 22 7. Remove plastic removal ring from the cylinder internal tube groove tube. is fully exposed. This will also move the internal wire ring into its removal position. Inner Ring Outer Wire Ring Internal Groove (Removed) v1.0 143415 - Silage King Blade (01-June-2022) -18-...
  • Page 23 Note: Make sure the cam of the band clamp is c) Install External not overtop of the gap in the ring. Wire Ring Inner Ring External Ring 18. Before using the cylinder, ensure that you double check your work. 143415 - Silage King Blade (01-June-2022) -19-...
  • Page 24 6. Torque cylinder end cap to 440 lb.ft (600 N.m). IMPORTANT: DO NOT use oil or grease on pins or 7. Tighten Set Screw on end cap to 6 lb.ft (8 N.m). bushing surfaces when re-installing. 143415 - Silage King Blade (01-June-2022) -20-...
  • Page 25 8. When hooks are clear from the top pins, slowly drive backward to remove blade from pivot. 9. Re-install tilt bell pins and safety pins on blade. Blade Assembly Main Frame Pivot Frame Hydraulics 143415 - Silage King Blade (01-June-2022) -21-...

  • Page 26: General Troubleshooting

    Remove/insert Tilt Bell pins with blade slightly off the ground. dropping off or picking up They should be easily removed/inserted when the blade is a few blade assembly. inches off the ground. 143415 - Silage King Blade (01-June-2022) -22-...
  • Page 27 2. To any goods that have sustained damage or deterioration attributable to a lack of routine maintenance (eg. Re- torque of mounting hardware.) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.
