Degelman STRAWMASTER PRO Series Quick Start Manual

STRAWMASTER PRO QUICK-START GUIDE
* Refer to operators manual for complete safety and operation info.
A

Connect Hydraulics

B

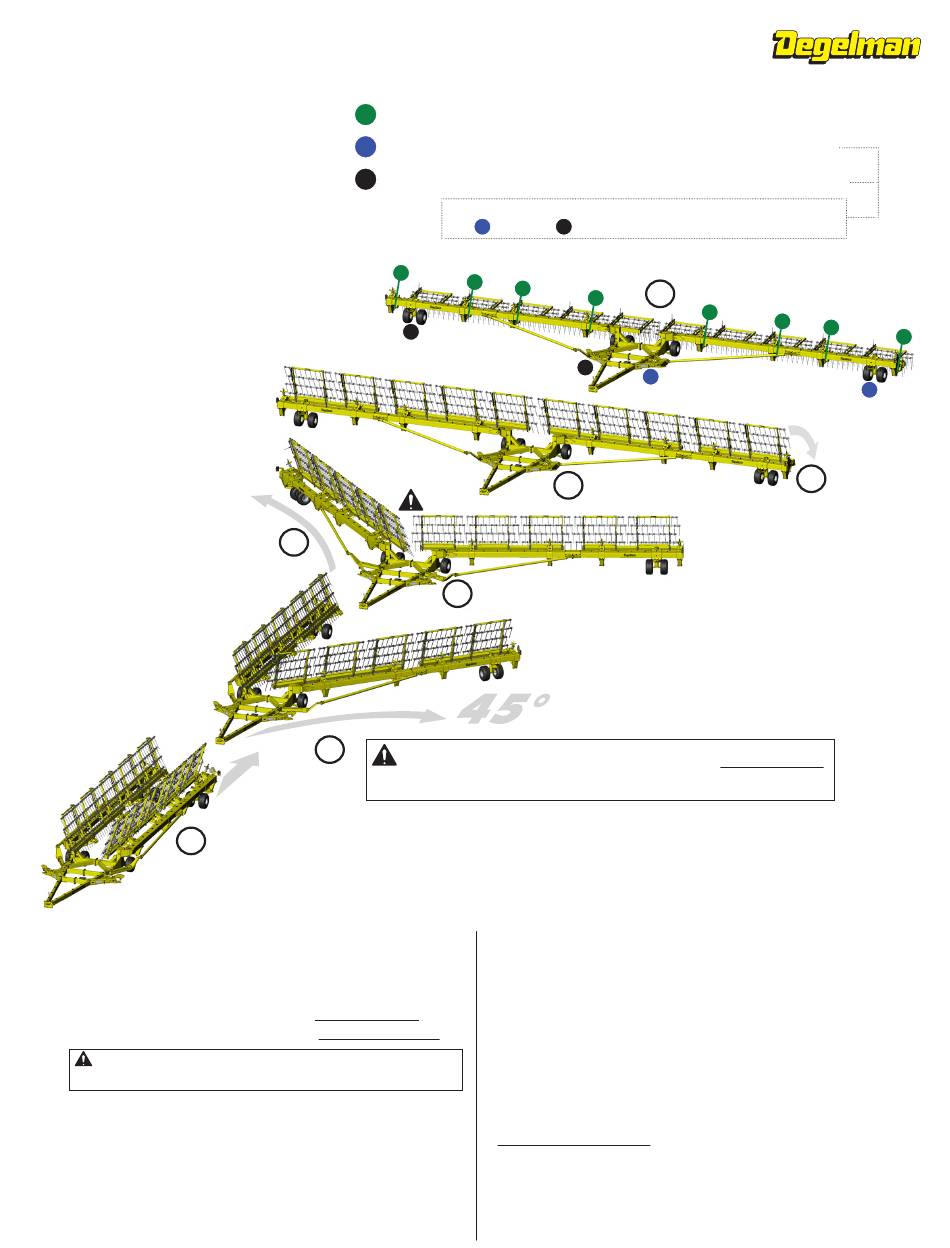

Backing Into Field Position

Note: Ensure there is plenty of room behind
and to the sides of the Strawmaster
before backing into field position.
1
1) Remove Transport Locks from the 8 Wing Beam
connections and 2 Endwheel locations.
2) Slowly Back-up Strawmaster Assembly while extending
the Endwheel steering cylinder on only one wing to
spread the wing partially open to a minimum of 45°.
IMPORTANT: To avoid contact of harrow sections
between the wings while unfolding.
3) When the first wing has been unfolded 45° or more, you
can start extending the Endwheel steering cylinder on
the second wing.
4) When the autofold swing arms are close to closing you
can activate the endwheel cylinder circuit again to
open the latch clamp.
HARROW LIFT CIRCUIT...
1
LEFT WING CIRCUIT........
2
RIGHT WING CIRCUIT......
3
Caution: Before working in field, lock the function for both the
Left
1
3
3
4
2
Important: To avoid contact or damage, open only one wing
a minimum of
*
2 and Right 3 Wing Circuits to avoid accidental operation.
1
1
1
3
2
5
45°
before starting to open the second wing.
5) When the swing arms are in position, this circuit can be
activated again (fully extended) to close the clamps.
Note: If Latches have been left in the down position, the
Swing Arms can also be engaged by allowing the Swing
Arms to ride into the Latches and "click" into engagement.
Caution: Lock hydraulic functions for both wing circuits before
working in field to avoid accidental operation while in use.
6) Lower the Harrow Sections down fully into field position.

Adjustment Settings

7) Adjust settings for light or aggressive harrowing.
8) Adjust Tine Angle as needed.
9) Adjust Parallel Angle as needed.
Harrow Lift Cylinders
Endwheel & Left Latch
Endwheel & Right Latch
7
1
1
1
6
143359 v1.0
