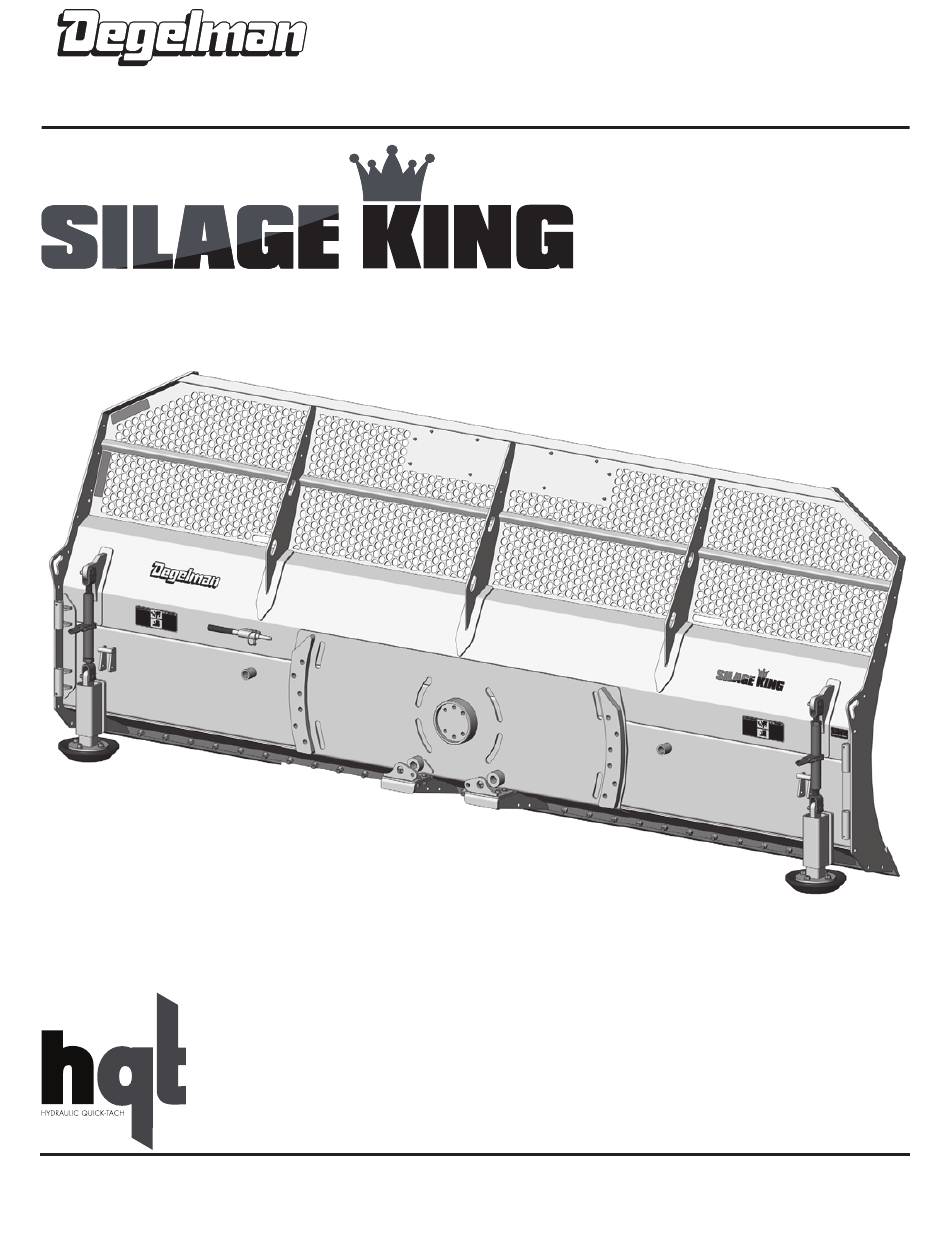

FIT-UP & PARTS
MANUAL
143444 v1.1
JOHN DEERE - 9R SERIES
D E G E L M A N
I N D U S T R I E S
L P
B O X
8 3 0 - 2 7 2
I N D U S T R I A L
D R I V E ,
(MY2022+) 9R 390, 440, 490, 540, 590, 640
R E G I N A ,
S K ,
C A N A D A ,
S 4 P
3 B 1
(FT4 2014-2021) 9370R, 9420R, 9470R, 9520R, 9570R, 9620R
F A X 3 0 6 . 5 4 3 . 2 1 4 0
P H 3 0 6 . 5 4 3 . 4 4 4 7
for NANT/NAHT & HANT/HAHT Silage King Models
1 . 8 0 0 . 6 6 7 . 3 5 4 5
D E G E L M A N . C O M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Degelman SILAGE KING
Summary of Contents for Degelman SILAGE KING
- Page 1 F A X 3 0 6 . 5 4 3 . 2 1 4 0 P H 3 0 6 . 5 4 3 . 4 4 4 7 for NANT/NAHT & HANT/HAHT Silage King Models 1 . 8 0 0 . 6 6 7 . 3 5 4 5...
-
Page 3: Reference Information
QUICK GUIDE INDEX Introduction Pivot & Main Frame (No-Angle Models) Pivot & Main Frame (Models with Hydraulic Angle) Mounting Brackets - Undercarriage (MY2022+) Mounting Brackets - Undercarriage (FT4 2014-2021) Mounting Brackets - Installation Mounting Brackets - Optional Mounts Hydraulic Routing Hose Bundle/Routing Overview Mounting Procedure Warranty... -
Page 4: Manual Overview
SAE-5 SAE-8 Size Grade 5 Grade 8 Overview of Silage King Blade Manual (143415) lb.ft lb.ft • Safety 1/4” 7 (10) 10 (14) • Operation 5/16”... - Page 5 Pivot & Main Frame - Silage King Blade Models with No-Angle PIVOT & MAIN FRAME OVERVIEW 795326 - Parking Station Bracket (1) 118503 - Lock Washer, 3/8 (2) 118003 - Bolt, 3/8 x 3/4 (2) Included with Hydraulic Coupler Assembly...
- Page 6 Pivot & Main Frame - Silage King Blade Models with Hydraulic Angle HANT (Models with No-Tilt) PIVOT & MAIN FRAME OVERVIEW 795326 - Parking Station Bracket (1) 118503 - Lock Washer, 3/8 (2) 118003 - Bolt, 3/8 x 3/4 (2)
- Page 7 Models with : Models without : HydraCushion Suspension HydraCushion Suspension ™ ™ Longer rear Axle Spacer bolt bracket Shims Required bolts. Rear bolt brackets Rear bolt brackets mount in upper mount in lower hole locations. hole locations. 143444 - Silage King (21-April-2023)
- Page 8 Axle Spacer Axle Spacer bolt bracket Shims Required Shims Required bolts. Rear bolt brackets Rear bolt brackets Rear bolt brackets mount in upper mount in lower mount in upper hole locations. hole locations. hole locations. 143444 - Silage King (21-April-2023)
-
Page 9: Mounting Brackets - Installation
795890 - Articulation Joint Plate (1) 118417 - Lock Nut, 3/8 (3) 795891 - Articulation Joint Clamp (1) 118511 - Flat Washer, 3/8 (5) Articulation Joint 117479 - Bolt, Wear Plate 3/8 x 2-1/4 (3) 143444 - Silage King (21-April-2023) - Page 10 Tow Cable Bracket. IMPORTANT - If using tow cable with dozer fitup installed, ensure tow cable is routed below the dozer and all dozer frames before use. Keep dozer raised while pulling on tow cable. 143444 - Silage King (21-April-2023)
-
Page 11: Mounting Brackets
117598 - Flat Washer, M8 (4) mounting hardware... 791345 - Euro Light Bar Bracket Assembly (1) Toolbox (if applicable) can also be 117597 - Lock Nut, M8 - CL8 (2) relocated by re-using existing toolbox mounting hardware (See above)..143444 - Silage King (21-April-2023) - Page 12 141689 - Grip, Black - Replacement Part Tank 141680 - Grip, Grey + Drain 141681 - Grip, Grey - 141800 - Quick Coupler Unit (1) 141151 - Nipple, 1/2 SAE 141818 - Handle 141150 - Coupler, 1/2 SAE 143444 - Silage King (21-April-2023)
-
Page 13: Hydraulic Routing
Replacement Wiper Seal: 133135 - (4) ANGLE CYLINDER ROUTING (HANT & HAHT) Refer to Silage King Blade Manual (For Hydraulic Angle Models) 126571 - Hose, 1/2 x 156 (2) 123227 - Cylinder, Monarch - 4-1/2 x 16 x 2-1/2 (2) - Page 14 Hydraulic Routing TILT CYLINDER ROUTING (NAHT) Refer to Silage King Blade Manual (For No-Angle Models with Hydraulic Tilt) 126641 - Hose, 1/2 x 118 (2) NOTE: Refer to Silage Blade 141616 - 45° Elbow, 3/4 JIC-m x ORB (2) Manual (143415) for Blade Tilt Circuit components.
- Page 15 Replacement Part NANT OPTION - 4 Plugs to be *Hose wrap is supplied installed for unused tilt circuit. for High Wear areas. 248385 - Plug, 1/2 ORB M (4) 141820 - Quick Coupler Unit (1) -12- 143444 - Silage King (21-April-2023)
- Page 16 LIFT HOSES (2) lifting or retracting hoses. 312 312 HQT CYLINDER HOSES (2) 142999 - Decal, Hyd Color Ref (1) (Install at rear of 17 20 tractor for reference) Connect direct to rear hydraulic connections. -13- 143444 - Silage King (21-April-2023)
- Page 17 (Use the same colored tape & the one/two strip system on the front hoses. Ensure they match the proper rear on the front hoses. Ensure they match the proper rear hoses when connecting to quick-coupler connectors. hoses when connecting to quick-coupler connectors. 143444 - Silage King (21-April-2023) -14-...
- Page 18 LH Undercarriage Bracket. 11. Install, and lightly tighten hose clamp (795892 or 795893) to secure hoses to the Multi-coupler bracket. 143444 - Silage King (21-April-2023) -15-...
- Page 19 14. Once hoses fully installed, be sure to fully articulate the tractor each way to ensure the hoses have the right amount of slack as they run through the articulation joint. 143444 - Silage King (21-April-2023) -16-...
- Page 20 (3/8”-1/2”) Side Bracket points are disconnected and clear to back out. between the inside of the Hook to the front 6. Back tractor out. (Re-attach tow cable - if applicable) of the Roller Pin. 143444 - Silage King (21-April-2023) -17-...
- Page 21 2. To any goods that have sustained damage or deterioration attributable to a lack of routine maintenance (eg. Re- torque of mounting hardware.) 3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement of Degelman such use affects its performance, safety, stability or reliability.
