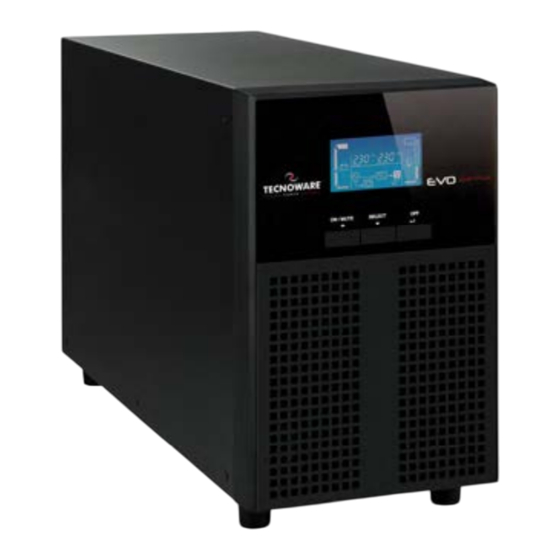

- Page 1 Uninterruptible Power Supply EVO DSP PLUS MM 1.0 - pf 0,9 EVO DSP PLUS MM 2.0 - pf 0,9 EVO DSP PLUS MM 3.0 - pf 0,9 User’s manual Manuale utente...
-
Page 2: Table Of Contents
© Copyright 2018 TECNOWARE s.r.l. All rights reserved. All trademarks are property of their respective owners. TECNOWARE s.r.l. Via Montetrini, 2E – Molino del Piano – Florence – Italy www.tecnoware.com This manual has been printed and edited by TECNOWARE s.r.l. - November 2018 Edition – Version 1.0... - Page 3 Indice Manuale Utente – Italiano ..............24 Avvisi di Sicurezza ................24 1 Introduzione ................25 2 Caratteristiche Generali ..............26 3 Ricevimento e Collocazione ............. 26 4 Modi di Funzionamento ..............27 Modo NORMALE ............... 28 Modo BATTERIA ..............28 Modo BYPASS .................
-
Page 4: User's Manual - English
User’s Manual - English Safety Warnings Read this manual carefully and completely before installing and using the TECNOWARE EVO DSP PLUS MM Uninterruptible Power Supply, which, from here after, will also be referred to as UPS. The UPS must be used only by properly trained personnel. To ensure correct and safe operations, it is necessary that operators and maintenance personnel observe the general safety Standards as well as the specific instructions included in this manual. -
Page 5: Introduction
ENGLISH 1 Introduction The UPS EVO DSP PLUS MM (UPS means Uninterruptible Power Supply) is the result of constant technological research aimed at obtaining the best performance at the lowest cost. EVO DSP PLUS MM is an advanced ON-LINE UPS built specifically to protect your computer from any irregularities in the AC line (for example blackouts, brownouts, over voltages, micro-interruptions), which often cause damage to hardware and software. -
Page 6: General Characteristics
ENGLISH 2 General Characteristics EVO DSP PLUS MM has all the advanced features which guarantee maximum reliability and safety: Double-Conversion ON-LINE Transformerless technology • Sinusoidal wave generated by an IGBT Inverter • Output Voltage regulation ±2% • Protection from overload and short circuits •... -
Page 7: Operating Modes
ENGLISH In all circumstances, see the “Technical Characteristics” chapter for environmental specifications and • check that the selected area meets these criteria. During normal operation the UPS discharges a minimal amount of heat. So it is necessary to leave at least •... -
Page 8: Normal Mode
ENGLISH 4.1 NORMAL Mode The UPS typically works in Normal mode: Input mains power is available and its amplitude is within specifications. Please refer to figure 1. After the filter has eliminated any high Frequency interference present on the mains, the AC Input line is rectified and conditioned in the Rectifier block (AC/DC conversion);... -
Page 9: Stand-By Mode
ENGLISH The Bypass mode is identified by: The graphic LCD panel shows the path of energy flow • during Bypass mode. An acoustic signal every 10 seconds. • During Bypass mode, loads are fed directly from AC Input line. Therefore some protections against AC Input line disturbances or interruptions is present. -
Page 10: External Description
ENGLISH 5 EXTERNAL DESCRIPTION 5.1 Front Panel The front panel informs the user about operating status, alarm conditions and measurements. It also provides access to controls and configuration parameters. Front panel shown below consists of two parts: Graphic LCD panel provides complete information about the energy flow path and existing alarms, Load and Battery level, Input, Output and Battery measurements. -
Page 11: Graphic Lcd Panel
ENGLISH 5.1.1 Graphic LCD Panel Please refer to figure 3. Backup Time Output Input & Battery Fault Info Buzzer Info Info Voltage Info Voltage Info Battery Load Info Info Mode Operation Programmable Info Output Info Figure 3 – Graphic LCD Panel User’s manual UPS EVO DSP PLUS MM... - Page 12 ENGLISH Graphic LCD Panel Function Backup time information Indicates how much time has passed in Battery mode. H: hours, M: minutes, S: seconds Fault information Indicates the warning that a fault has occurred. Indicates the Fault codes, and the codes are listed in the “Fault Table” of chapter Mute operation Indicates that the UPS alarm is disabled (muted).
-
Page 13: Buttons
ENGLISH Graphic LCD Panel Function Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the Battery is faulty or defective. Indicates Low Battery level and Low Battery Voltage. Input and Battery Voltage information Indicates the Input Voltage or Frequency or Battery Voltage. Vac: Input Voltage, Vdc: Battery Voltage, Hz: Input Frequency 5.1.2 Buttons Functions of the buttons are given below:... -
Page 14: Acoustic Alarm
ENGLISH 5.1.3 Acoustic Alarm UPS status Acoustic Alarm Battery Mode Beeping once every 4 seconds Low Battery Beeping once every second Overload Beeping twice every second Fault Mode Beeping continuously Bypass Mode Beeping once every 10 seconds Note: OFF = YES : means that the buzzer can be muted or stopped, by pressing ON/MUTE button. : means that the buzzer can NOT be muted or stopped OFF = NO 5.2 Rear Side... -
Page 15: Electrical Installation
For the Input/Output connections use ONLY the included power cables or cables with the same power ratings. TECNOWARE declines any responsibility if this warning is disregarded. The EVO DSP PLUS MM models are made of a single unit design that contains the electronic parts and batteries. -
Page 16: First Start Up
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. -
Page 17: Functioning
ENGLISH 8 Functioning 8.1 Turning ON and OFF Let’s see carefully the consequences of the pressure of ON/MUTE and OFF buttons. The UPS is in Stand-by mode (the Inverter is OFF); if the ON/MUTE button is pressed, after few seconds the Inverter starts and the UPS switches in Normal mode. -
Page 18: Load Testing
ENGLISH 8.3 Load Testing The UPS indicates the Output Load level by graphic LCD (on the right side as described in the chapter 5). When the Output load is higher than nominal value the UPS warns of Overload condition by graphic LCD and by acoustic alarm as described in the “Warning Table”... -
Page 19: Battery Test
ENGLISH 8.5 Battery Test It is possible to check the Battery Status when the UPS is running in Normal mode, by performing a Battery Test. To perform the Battery Test, press the ON/MUTE button continuously for at least 5 seconds. The Battery Test starts immediately and it finishes after some seconds. -
Page 20: Operation In Fault Mode
The RS-232 and USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software, compatible with the most popular Operative Systems. -
Page 21: Technical Characteristics
ENGLISH 10 Technical Characteristics UPS EVO DSP PLUS MM Model Power 1000 VA 2000 VA 3000 VA Nominal Active Power 900 W 1800 W 2700 W Power Factor Technology On-Line Double Conversion Transformerless Dimension (W x H x D) 14,5 x 22 x 28,2 cm 14,5 x 22 x 39,7 cm 19 x 31,8 x 42,1 cm Net Weight... - Page 22 ENGLISH ENVIRONMENTAL CONDITIONS Storage Temperature Range -25°C to +55°C (15°C to 40°C recommended for longer Battery life) Operating Temperature Range 0°C to +40°C (20°C to 25°C recommended for longer Battery life) Relative Humidity Range 0% - 95% (non condensing) Max. Altitude without Derating 3000 m Protection level IP 20...
-
Page 23: Maintenance
ENGLISH 11 Maintenance 11.1 UPS Cleaning Before starting any cleaning operation, be sure that: 1. The AC Input Voltage for the UPS has been removed. 2. The UPS is completely OFF (the graphic LCD panel is OFF). Use only a cloth dampened with water to clean the unit. If UPS works in an environmental unusually dusty or dirty, remove the dirty from the ventilation holes. -
Page 24: Troubleshooting
There are no internal parts in the UPS which are user serviceable. Any repair or maintenance work must be performed exclusively by qualified technical personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. SYMPTOM POSSIBLE CAUSE... - Page 25 Technical Service. flash on LCD display and alarm beeps every second. If the described anomalies should continue despite the advised troubleshooting, or should they manifest in any other form, please contact: TECNOWARE SERVICE www.tecnoware.com User’s manual UPS EVO DSP PLUS MM...
-
Page 26: Conformity To The European Directives
ENGLISH Conformity to the European Directives TECNOWARE S.r.l. confirms that EVO DSP PLUS MM models comply with the requirements set out in: the Low Voltage (Safety) Directive 2014/35/EU and following amendments, the EMC (Electro-Magnetic Compatibility) Directive 2014/30/EU and following amendments.
