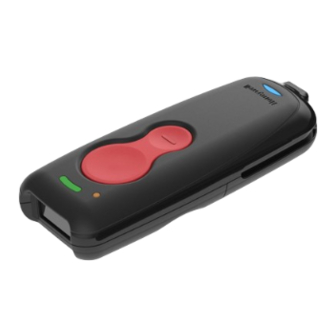

Page 1 Manual Leitor Honeywell Voyager 1602g O Leitor Honeywell Voyager 1602g oferece a praticidade, mobilidade e produtividade que você precisa. Seu alto desempenho faz com que seja um dos melhores leitores bluetooth disponível. www.bztech.com.b r...
Page 2 Voyager 1602g Wireless Area-Imaging Pocket Scanner User Guide...
Page 3 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. HII makes no representation or warranties regarding the information provided in this publication.
Page 4: Table Of Contents
Menu Barcode Security Settings ..................... 6 Setting Custom Defaults......................7 Resetting the Custom Defaults ....................8 Chapter 2 - Programming the Interface............9 Introduction............................9 Keyboard Country Layout ......................9 Keyboard Countries......................9 Keyboard Style..........................16 Voyager 1602g User Guide...
Page 5 CTS/RTS Emulation.......................25 ACK/NAK Mode .......................25 Secondary Interface for USB....................25 ® Gilbarco Terminal Default Settings..................26 Honeywell Bioptic Aux Port Configuration................26 © Datalogic™ Magellan Bioptic Aux Port Configuration ..........26 NCR Bioptic Aux Port Configuration..................27 Wincor Nixdorf Terminal Default Settings.................27 Wincor Nixdorf Beetle™ Terminal Default Settings............28 Wincor Nixdorf RS232 Mode A....................28...
Page 6 Scanner Is Moved Back Into Range................42 Out of Range and Back into Range with Batch Mode On........42 About the Battery .........................43 Charging Information ......................43 Battery Recommendations....................43 Beeper and LED Sequences and Meaning ................44 Scan LED Sequences and Meaning................45 Low Battery Indicator......................45 Voyager 1602g User Guide...
Page 7 Replacing a Linked Scanner .....................56 Access Point LED Sequences and Meaning ..............56 Access Point Address .........................57 Paging ..............................57 Page Mode ..........................57 Paging Pitch ..........................57 Batch Mode ............................58 Batch Mode Beep ........................59 Batch Mode Storage ......................59 Batch Mode Quantity......................60 Voyager 1602g User Guide...
Page 8 LED – Good Read........................73 Number of Beeps – Good Read..................73 Number of Beeps – Error ....................73 Good Read Delay........................74 User-Specified Good Read Delay ..................74 Manual Trigger Modes .......................74 Serial Trigger Mode ........................75 Read Time-Out........................75 Poor Quality Codes........................76 Voyager 1602g User Guide...
Page 9 To Add an Output Sequence .....................85 Other Programming Selections..................86 Output Sequence Example ..................86 Output Sequence Editor.....................87 Partial Sequence ........................87 Require Output Sequence ....................88 Multiple Symbols .........................88 No Read ............................89 Video Reverse ..........................89 Working Orientation ........................90 viii Voyager 1602g User Guide...
Page 10 Intermessage Delay ......................98 Chapter 6 - Data Format ................99 Data Format Editor Introduction ...................99 Show Data Format ........................100 Add a Data Format........................100 Other Programming Selections ..................101 Terminal ID Table ........................102 Data Format Editor Commands ..................102 Send Commands ........................102 Voyager 1602g User Guide...
Page 11 Replace characters ..................... 112 Stop replacing characters ..................113 Compare characters ....................113 Compare string......................113 Check for a number..................... 113 Check for non-numeric character................. 114 Insert a delay ......................... 115 Discard Data ........................115 Data Formatter........................... 115 Voyager 1602g User Guide...
Page 12 ISBT 128 Concatenation....................134 GS1-128 ............................136 Telepen ............................137 UPC-A ............................138 UPC-A/EAN-13 with Extended Coupon Code ..............140 Coupon GS1 DataBar Output....................141 UPC-E0 ............................141 UPC-E1 ............................143 EAN/JAN-13..........................144 ISBN Translate ........................146 EAN/JAN-8 ..........................146 MSI ..............................148 GS1 DataBar Omnidirectional .....................150 GS1 DataBar Limited.......................150 Voyager 1602g User Guide...
Page 13 Korea Post........................170 Korea Post Message Length ................... 170 Korea Post Check Digit ....................170 Chapter 8 - Utilities..................171 To Add a Test Code I.D. Prefix to All Symbologies ............171 Show Decoder Revision ......................171 Voyager 1602g User Guide...
Page 14 Concatenation of Multiple Commands...............179 Responses........................179 Trigger Commands........................180 Reset the Custom Defaults ....................181 Menu Commands ........................182 Chapter 10 - Product Specifications............205 Voyager 1602g Product Specifications................205 Required Safety Labels......................207 Standard Connector Pinout ....................208 Micro-B USB.........................208 Chapter 11 - Maintenance .................209 Repairs............................209 Maintenance ..........................209...
Page 15 Symbology Charts ........................213 Linear Symbologies......................213 2D Symbologies........................215 Postal Symbologies ......................215 ASCII Conversion Chart (Code Page 1252)..............216 Lower ASCII Reference Table ....................217 ISO 2022/ISO 646 Character Replacements..............220 Keyboard Key References ...................... 222 Voyager 1602g User Guide...
Page 16: Customer Support
Technical Support portal. For our latest contact information, see honeywell.com/PSSlocations. Product Service and Repair Honeywell International Inc. provides service for all of its products through service centers throughout the world. Go to sps.honeywell.com and select Support to find a service center near you or to get a Return Material Authorization number (RMA #) before returning a product.
Page 17 Voyager 1602g User Guide...
Page 18: Chapter 1 - Getting Started
1602g scanners. Product specifications, dimensions, warranty, and customer support information are also included. Note: The selections in this User Guide are dependent on the Voyager 1602g model you have purchased. PDF and 2 dimensional barcodes can only be read by model 1602g2D and cannot be read by model 1602g1D.
Page 19: Charging With A Power Supply
USB connector to the computer, as shown below. Note: The mini-USB connector is only used for charging the scanner. If using a scanner in corded mode, it can also be used to configure the device via EZConfig (see page for further information). Voyager 1602g User Guide...
Page 20: Battery Charge Indicator
(page 45) and Low Battery Indicator (page 45) for the complete list of LED indications. To use your scanner with a Honeywell Access Point (AP01-XXXBT), refer to Host Timeout, page 66 or Linking the Scanner to an Access Point, page 55.
Page 21 PIN is displayed. This PIN must be scanned within 60 seconds. You must quickly scan Bluetooth PIN Code below, then scan the numeric barcode(s) for the PIN code from the chart below, then scan the Save barcode. Bluetooth PIN Code Voyager 1602g User Guide...
Page 22: Pairing The Scanner With An Apple Device Using Spp
Pair with Apple Device Using SPP Once the Apple device is connected to the Voyager 1602g using SPP, you must select the app that will be used to send commands to and receive responses from the scanner. To disconnect the association between the scanner and the app, use Bluetooth HID Keyboard Disconnect on page 37.
Page 23: Menu Barcode Security Settings
15° to 18° to prevent unwanted reflection. Menu Barcode Security Settings Honeywell scanners are programmed by scanning menu barcodes or by sending serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Barcode Security settings.
Page 24: Setting Custom Defaults
High, just scan the Set Custom Defaults barcode, then scan the Beeper Volume High menu code, and then Save Custom Defaults. The rest of the custom defaults will remain, but the beeper volume set- ting will be updated. Voyager 1602g User Guide...
Page 25: Resetting The Custom Defaults
You must relink (pair) the scanner to the host. See Wireless System Operation beginning on page 37 for additional information. Voyager 1602g User Guide...
Page 26: Chapter 2 - Programming The Interface
By default, national character replacements are used for the following characters: #$@[\]^‘{|}~ ISO 2022/ISO 646 Character Replacements on page 220 to view the character replacements for each country. Keyboard Countries * United States Albania Azeri (Cyrillic) Voyager 1602g User Guide...
Page 27 Keyboard Countries (Continued) Azeri (Latin) Belarus Belgium Bosnia Brazil Brazil (MS) Bulgaria (Cyrillic) Bulgaria (Latin) Canada (French legacy) Canada (French) Canada (Multilingual) Croatia Voyager 1602g User Guide...
Page 28 Keyboard Countries (Continued) Czech Czech (Programmers) Czech (QWERTY) Czech (QWERTZ) Denmark Dutch (Netherlands) Estonia Faroese Finland France Gaelic Germany Voyager 1602g User Guide...
Page 29 Keyboard Countries (Continued) Greek Greek (220 Latin) Greek (220) Greek (319 Latin) Greek (319) Greek (Latin) Greek (MS) Greek (Polytonic) Hebrew Hungarian (101 key) Hungary Iceland Voyager 1602g User Guide...
Page 30 Keyboard Countries (Continued) Irish Italian (142) Italy Japan ASCII Kazakh Kyrgyz (Cyrillic) Latin America Latvia Latvia (QWERTY) Lithuania Lithuania (IBM) Macedonia Voyager 1602g User Guide...
Page 31 Keyboard Countries (Continued) Malta Mongolian (Cyrillic) Norway Poland Polish (214) Polish (Programmers) Portugal Romania Russia Russian (MS) Russian (Typewriter) Voyager 1602g User Guide...
Page 32 Keyboard Countries (Continued) Serbia (Cyrillic) Serbia (Latin) Slovakia Slovakia (QWERTY) Slovakia (QWERTZ) Slovenia Spain Spanish variation Sweden Switzerland (French) Switzerland (German) Tatar Voyager 1602g User Guide...
Page 33: Keyboard Style
United States (International) Uzbek (Cyrillic) Keyboard Style This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used Keyboard Conversion settings, they will override any of the following Keyboard Style settings. Default = Regular. Voyager 1602g User Guide...
Page 34 Emulate External Keyboard should be scanned if you do not have an external keyboard (IBM AT or equivalent). Emulate External Keyboard Note: After scanning the Emulate External Keyboard barcode, you must power cycle your host system. Voyager 1602g User Guide...
Page 35: Keyboard Conversion
216. Only codes 00 through 1F are converted (the first column of the chart). Default = Off. Note: Control + ASCII Mode overrides this mode. Control Character Output On * Control Character Output Off Voyager 1602g User Guide...
Page 36: Keyboard Modifiers
DOS Mode Control + X Mode On Windows Mode Prefix/Suffix Off The scanner sends characters to a terminal faster. If the terminal drops Turbo Mode: characters, do not use Turbo Mode. Default = Off. Turbo Mode On * Turbo Mode Off Voyager 1602g User Guide...
Page 37 This selection can be used if you have an IBM AT style Automatic Direct Connect Mode: terminal and the system is dropping characters. Default = Off. Automatic Direct Connect Mode On * Automatic Direct Connect Mode Off Voyager 1602g User Guide...
Page 38: Programming An Interface For An Access Point
Programming an Interface for an Access Point If you are using a Honeywell Access Point (AP01-XXXBT) to communicate with the VG1602, you can use the following barcodes to program the Access Point interface. These barcodes set the Access Point for commonly used interfaces.
Page 39: Rs485
00 2F 0B * Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B HHBCR-1, and IBM 4683 Port 17 Interfaces **Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface Voyager 1602g User Guide...
Page 40: Rs485 Packet Mode
This interface is only appropriate for an Access Point. Note: After scanning one of these codes, you must power cycle the cash register. USB IBM SurePos (USB Handheld Scanner) Interface USB IBM SurePos (USB Tabletop Scanner) Interface Voyager 1602g User Guide...
Page 41: Usb Pc Or Macintosh Keyboard
Scan the following code to program the scanner to emulate a regular RS232-based COM Port, then power cycle the host. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (sps.honeywell.com). The driver will use the next available COM Port number.
Page 42: Cts/Rts Emulation
On barcode to communicate with the scanner management software. To disable this capability, scan Secondary Interface Off. This interface is only appropriate for an Access Point. Default = Secondary Interface On. Secondary Interface Off * Secondary Interface On Voyager 1602g User Guide...
Page 43: Gilbarco ® Terminal Default Settings
Gilbarco Settings Honeywell Bioptic Aux Port Configuration Scan the following Plug and Play code to program the scanner for a Honeywell bioptic scanner auxiliary port configuration, then power cycle the host. This barcode sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.
Page 44: Ncr Bioptic Aux Port Configuration
This barcode sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit. This interface is only appropriate for an Access Point. Wincor Nixdorf Terminal Settings Voyager 1602g User Guide...
Page 45: Wincor Nixdorf Beetle™ Terminal Default Settings
Symbology Prefix Symbology Prefix Code 128 EAN-13 Code 93 GS1-128 Codabar Interleaved 2 of 5 UPC-A Plessey UPC-E Straight 2 of 5 IATA EAN-8 GS1 DataBar All other barcodes Wincor Nixdorf RS232 Mode A Settings Voyager 1602g User Guide...
Page 46: Rs232 Modifiers
Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the same baud rate as the scanner. Default = 115200. 1200 2400 4800 9600 19200 38400 57,600 Voyager 1602g User Guide...
Page 47: Rs232 Word Length: Data Bits, Stop Bits, And Parity
7 Data, 1 Stop, Parity Odd 7 Data, 2 Stop, Parity Even 7 Data, 2 Stop Parity None 7 Data, 2 Stop, Parity Odd 8 Data, 1 Stop, Parity Even * 8 Data, 1 Stop, Parity None Voyager 1602g User Guide...
Page 48: Rs232 Receiver Time-Out
32) for CTS to be asserted by the host. If the delay time expires and CTS is not asserted, the device transmit buffer is cleared and scanning may resume. Default = RTS/CTS Off. Flow Control, No Timeout Two-Direction Flow Control Voyager 1602g User Guide...
Page 49: Rs232 Timeout
After transmitting data, the scanner waits for an ACK character (hex 06) or a NAK character (hex 15) response from the host. If ACK is received, the communications cycle is completed and the scanner looks for more barcodes. If NAK is received, the Voyager 1602g User Guide...
Page 50: Scanner To Bioptic Communication
Scanner to Bioptic Communication The following settings should only be used when connecting through an Access Point. They are used to set up communication between Honeywell scanners and bioptic scanners. Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout must be set to 3000 in order to communicate with a bioptic scanner.
Page 51: Scanner-Bioptic Ack/Nak Mode
This allows you to set the length (in milliseconds) for a timeout for a bioptic scanner’s ACK/NAK response. Scan the barcode below, then set the timeout (from 1-30,000 milliseconds) by scanning digits from the Programming Chart, then scanning Save. Default = 5100. ACK/NAK Timeout Voyager 1602g User Guide...
Page 52: Programming The Vg1602 Corded Interface
PC or Macintosh, then power cycle the host. Corded USB Keyboard (Mac) Corded USB HID POS Scan the following code to program the corded scanner for USB HID POS interface, then power cycle the host. Corded USB HID POS Interface Voyager 1602g User Guide...
Page 53: Corded Usb Serial
Scan the following code to program the corded scanner to emulate a regular RS232-based COM Port, then power cycle the host. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use the next available COM Port number.
Page 54: Chapter 3 - Wireless System Operation
CHAPTER WIRELESS SYSTEM OPERATION The VG1602g scanner can be used with Bluetooth devices such as personal com- puters, laptops, PDAs, and Honeywell mobility systems devices. Bluetooth Settings ® Refer to Pairing the Scanner with Bluetooth Devices, beginning on page 3, to link your scanner to a host via Bluetooth.
Page 55: Pdas/Mobility Systems Devices
PDAs/Mobility Systems Devices You may also use the scanner with a PDA or a Honeywell Mobility Systems device. Scan the barcode below and follow the instructions supplied with your Bluetooth device to locate the scanner, and connect with it. BT Connection - PDA/Mobility Systems Device Change the Scanner’s Bluetooth PIN Code...
Page 56: Auto Reconnect Mode
ISM band, the number of attempts to connect is limited by this setting. After the maxi- mum number of attempts is reached, the scanner will not attempt to reconnect to Voyager 1602g User Guide...
Page 57: Relink Time-Out
Each attempt consists of approximately 5 seconds of active time fol- lowed by 3 seconds of idle time. After one hour, the scanner powers off and batch mode data is lost. Maximum Link Attempts set to 15 Other values at default setting Voyager 1602g User Guide...
Page 58: Communication Between The Scanner And The Host
When using the scanner and host together as a system, menu parameters and configuration settings are stored in the host. If the scanner is not linked to a host, configuration settings are stored in the scanner. Voyager 1602g User Guide...
Page 59: Rf (Radio Frequency) Module Operation
58, for further information. The scanner may store a number of symbols (approximately 500 U.P.C. symbols; others may vary) when it is out of range and then send them to the host when back in range. Voyager 1602g User Guide...
Page 60: About The Battery
Replace it after the battery is unable to hold an adequate charge. • If you are not sure if the battery or charger is working properly, send it to Honeywell International Inc. or an authorized service center for inspection. Refer to Customer Support for additional information.
Page 61: Beeper And Led Sequences And Meaning
Caution: Use only Honeywell Li-ion battery packs, model number 3H21- 00000112 or 163480-0001, rated 3.7 Vdc, 2.77Whr in this device. Use of any non-Honeywell battery may result in damage not covered by the warranty. Safety Precautions for Lithium Batteries •...
Page 62: Scan Led Sequences And Meaning
If your battery is low, the battery LED double flashes orange and Battery the scanner double chirps. The programmable button can also be set to display the battery charge level. See Battery Charge Status on page 68. Voyager 1602g User Guide...
Page 63: Reset Scanner
Locked Link Mode - Single Scanner When you scan the barcode below, only the linked scanner can connect to the host and other scanners are blocked from being linked to that host. Locked Link Mode (Single Scanner) Voyager 1602g User Guide...
Page 64: Open Link Mode - Single Scanner
Override Locked Scanner (Single Scanner) Out-of-Range Alarm Note: This feature is only supported by a Honeywell Access Point (AP). See Access Point Operations, beginning on page 55 for further information.
Page 65: Alarm Sound Type
3 long beeps, high pitch 4 short beeps, medium pitch 4 short beeps, high pitch single chirps, medium pitch 2 chirps, then 1 chirp, medium pitch single chirps, high pitch 2 chirps, then 1 chirp, high pitch Scanner Alarm Type Voyager 1602g User Guide...
Page 66: Scanner Idle Alarm
If there are no scan button presses during the timer interval, the scanner goes into power down mode. Whenever the scan button is pressed, the timer is reset. The scanner will not go into power down mode when the battery is charging. Default = 3600 seconds. Voyager 1602g User Guide...
Page 67: Flexible Power Management
This reduces the range between the scanner and a host as shown in the following illustration: 802.11 Scanner Scan one of the barcodes below to set the scanner’s power output to Full Power (100%), Medium Power (35%), Medium Low Power (5%), or Low Power (1%). Default = Full Power. Voyager 1602g User Guide...
Page 68: Multiple Scanner Operation
NewName is the new name for the scanner. If you wish to change the names of additional scanners, link them one at a time and repeat the :ScannerName:BT_NAMNewName. command for each scanner. Voyager 1602g User Guide...
Page 69: Application Work Groups
Save. Scan the Reset bar- code and wait for the scanner to relink to the host. Scanner Name Application Work Groups Note: Application Work Groups can only be used with an Access Point. Voyager 1602g User Guide...
Page 70: Application Work Group Selection
You may then program the settings (e.g., beeper vol- ume, prefix/suffix, data formatter) that your application requires. Default = Group 0. * Group 0 Group 1 Group 2 Group 3 Group 4 Voyager 1602g User Guide...
Page 71: Resetting The Factory Defaults: All Application Work Groups
Settings, page 37 for additional information. If your scanner is in multiple scanner mode, you will hear up to 30 seconds of beeping while all scanners are relinked to the host and the settings are changed. Voyager 1602g User Guide...
Page 72: Access Point Operations
Access Point Operations The Voyager 1602g can pair with a Honeywell Access Point (AP01-010BT or AP01- 100BT), which provides 2-way communication between the scanner and host. Linking the Scanner to an Access Point Turn on the host computer (laptop/desktop). Plug the inter-...
Page 73: Disconnect From Host And Connect To An Access Point
Blue LED - Host Communication Blue LED Communication Condition USB suspend On continuously Power on, system idle Short blinks in multiple pulses. Occurs while Receiving data transferring data to/from the RF module or the Host port. Voyager 1602g User Guide...
Page 74: Access Point Address
When you press the Page button on the Access Point, the scanners associated with that Access Point will begin beeping. You can set the pitch of the paging beep for each scanner by scanning one of the following barcodes. Default = Low. * Low (1000 Hz) Medium (3250 Hz) Voyager 1602g User Guide...
Page 75: Batch Mode
In order to clear the scanner’s buffer, you must scan Clear All Codes (see page 63). Default = Batch Mode Off. * Batch Mode Off Automatic Batch Mode Voyager 1602g User Guide...
Page 76: Batch Mode Beep
Access Point, even if it reaches a power down time- out. However, if the scanner runs out of battery power, it will power down and the data will be lost. Default = Flash Storage. * Flash Storage RAM Storage Voyager 1602g User Guide...
Page 77: Batch Mode Quantity
5. Scan the quantity 0 barcode. Example: Change a quantity of 103 to 10. To correct an incorrect quantity, scan the quantity 0 barcode to replace the incor- rect digits, then scan the correct quantity barcodes. Voyager 1602g User Guide...
Page 78 2. Scan the quantity 0 barcode to change the quantity to 0300. 3. Scan the quantity 1 barcode to change the quantity to 3001. 4. Scan the quantity 0 barcode to change the quantity to 0010. Default = 1. Quantity Codes Voyager 1602g User Guide...
Page 79: Batch Mode Output Order
Batch Mode Output Order When batch data is transmitted, select whether you want that data sent as FIFO (first-in first-out), or LIFO (last-in first-out). Default = Batch Mode FIFO. * Batch Mode FIFO Batch Mode LIFO Voyager 1602g User Guide...
Page 80: Total Records
Default = Off. Note: In most cases, a short (250 ms (milliseconds)) delay is ideal, however, longer delays may be programmed. Contact Customer Support for additional information. Voyager 1602g User Guide...
Page 81: Host Acknowledgment
Note: System performance degrades when using Host ACK at rates lower than 9600 baud. The following criteria must be met for the Host ACK to work correctly: • The scanner must be paired with a Honeywell Access Point (AP01-010BT or AP01-100BT). •...
Page 82 A timeout is indicated by an error tone. If a timeout occurs, the operator should check the host system to understand why a response to the scan- ner was not received. Host ACK On/Off Host ACK On Voyager 1602g User Guide...
Page 83: Host Ack Timeout
[ESC] 6, Emits a beep at a high pitch. [ESC] 7, Beeps to indicate a successful decode and communication to host. [ESC] 8,[ESC] 8, Razz or error tone to indicate a decode/communication to host was unsuccessful. Voyager 1602g User Guide...
Page 84: Chapter 4 - Input/Output Settings
Note: This feature is only supported with Apple devices. Virtual Keyboard On - Short Press Voyager 1602g User Guide...
Page 85: Battery Charge Status
Battery is charging Orange, blink once Battery is 25-49% Orange, blink twice Battery is 50-74% Orange, blink three times Battery is 75-99% Green, on Battery is fully charged Red, on Low battery, 0-24% Red blink Charging error Voyager 1602g User Guide...
Page 86: Flashlight Mode
- Long Press The Bluetooth LED flashes in the following pattern after a short or long press of the programmable button: Bluetooth LED Indicator Beeper Indicator Bluetooth Status Blue, off None Bluetooth connection has not been established Voyager 1602g User Guide...
Page 87: Disable Programmable Button
Beep on BEL On barcode below, the scanner will beep every time a BEL character is received from the host. Default = Beep on BEL Off. *Beep on BEL Off Beep on BEL On Voyager 1602g User Guide...
Page 88: Trigger Click
Beeper - Good Read Off * Beeper - Good Read On Beeper Volume – Good Read The beeper volume codes modify the volume of the beep the scanner emits on a good read. Default = High. Medium Voyager 1602g User Guide...
Page 89: Beeper Pitch - Good Read
Beeper Pitch – Error The beeper pitch codes modify the pitch (frequency) of the sound the scanner emits when there is a bad read or error. Default = Razz. * Razz (250 Hz) Medium (3250 Hz) High (4200 Hz) Voyager 1602g User Guide...
Page 90: Beeper Duration - Good Read
The number of beeps and LED flashes emitted by the scanner for a bad read or error can be programmed from 1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response Voyager 1602g User Guide...
Page 91: Good Read Delay
Two modes are available, Normal and Enhanced. Normal mode offers good scan speed and the longest working ranges (depth of field). Enhanced mode will give you the highest possible scan speed but slightly less Voyager 1602g User Guide...
Page 92: Serial Trigger Mode
After scanning the Read Time-Out barcode, set the time-out duration (from 0-300,000 milliseconds) by scanning digits on the Programming Chart inside the back cover, then scanning Save. Default = 30,000 ms. Read Time-Out Voyager 1602g User Guide...
Page 93: Poor Quality Codes
It is useful when a com- plete barcode cannot be seen in one image. This setting does not affect 1D bar- code reading. Default = Poor Quality PDF Reading Off. Poor Quality PDF Reading On * Poor Quality PDF Reading Voyager 1602g User Guide...
Page 94: Codegate
Character), or a barcode is transmitted. Scan the following On barcode to use character activation, then use Activation Character (following) to select the character you will send from the host to start scanning. Default = Off. * Off Voyager 1602g User Guide...
Page 95: Activation Character
Mode. Set the length (in milli- seconds) for a timeout by scanning the following barcode, then setting the timeout (from 1-300000 milliseconds) by scanning digits from the Programming Chart, then scanning Save. Default = 30000 ms. Voyager 1602g User Guide...
Page 96: Character Deactivation Mode
However, if you want to turn just the lights off, scan the Lights Off barcode. Default = Lights On. Note: This setting does not affect the aimer light. The aiming light can be set using Aimer Mode. Voyager 1602g User Guide...
Page 97: Aimer Delay
If you want to set your own length for the duration of the delay, scan the barcode below, then set the time-out by scanning digits (0 - 4,000 ms) from the Programming Chart inside the back cover of this manual, then scan Save. Delay Duration Voyager 1602g User Guide...
Page 98: Aimer Mode
If centering is turned on by scanning Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of Centering Window, Bottom of Centering Window, Left, and Right of Cen- tering Window barcodes. Voyager 1602g User Guide...
Page 99 Programming Chart. Scan Save. Default Centering = 40% for Top and Left, 60% for Bottom and Right. Centering On * Centering Off Top of Centering Window Bottom of Centering Window Voyager 1602g User Guide...
Page 100: Preferred Symbology
Note: A low priority symbol must be centered on the aiming pattern to be read. Scan a barcode below to enable or disable Preferred Symbology. Default = Preferred Symbology Off. Preferred Symbology On * Preferred Symbology Off Voyager 1602g User Guide...
Page 101: High Priority Symbology
Scan the barcode below, then set the delay (from 1-3,000 millisec- onds) by scanning digits from the inside back cover, then scanning Save. Default = 500 ms. Preferred Symbology Time-out Voyager 1602g User Guide...
Page 102: Preferred Symbology Default
1252), page 216, find the Hex value that represents the character(s) you want to match. Use the Programming Chart to read the alphanumeric combination that represents the ASCII characters. (99 is the Universal number, indicating all characters.) Voyager 1602g User Guide...
Page 103: Other Programming Selections
Code 128, 9999 = all lengths start character match for Code 128, 42h = “B” termination string for second code code identifier for Code 93 9999 code length that must match for Code 93, 9999 = all lengths Voyager 1602g User Guide...
Page 104: Output Sequence Editor
Output Sequence Editor Enter Sequence Default Sequence Partial Sequence If an output sequence operation is terminated before all your output sequence cri- teria are met, the barcode data acquired to that point is a “partial sequence.” Voyager 1602g User Guide...
Page 105: Require Output Sequence
When this programming selection is turned On, it allows you to read multiple sym- bols with a single press of the scanner’s button. If you press and hold the button, aiming the scanner at a series of symbols, it reads unique symbols once, beeping Voyager 1602g User Guide...
Page 106: No Read
Note: After scanning Video Reverse Only, menu barcodes cannot be read. You must scan Video Reverse Off or Video Reverse and Standard Barcodes in order to read menu barcodes. Note: Images downloaded from the unit are not reversed. This is a setting for decoding only. Voyager 1602g User Guide...
Page 107: Working Orientation
Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner. Default = Upright. Upright: Vertical, Top to Bottom: (Rotate CW 90°) Upside Down: Vertical, Bottom to Top: (Rotate CCW 90°) * Upright Voyager 1602g User Guide...
Page 108 Vertical, Bottom to Top Upside Down Vertical, Top to Bottom Voyager 1602g User Guide...
Page 109 Voyager 1602g User Guide...
Page 110: Chapter 5 - Data Editing
216, plus Code I.D. and AIM I.D. • You can string together several entries for several symbologies at one time. • Enter prefixes and suffixes in the order in which you want them to appear on the output. Voyager 1602g User Guide...
Page 111: Example: Add A Tab Suffix To All Symbologies
Scan the Clear One Prefix or Clear One Suffix symbol. Step 2. Determine the 2 digit hex value from the Symbology Chart (included in Symbology Charts, beginning on page 213) for the symbology from which you want to clear the prefix or suffix. Voyager 1602g User Guide...
Page 112: Add A Carriage Return Suffix To All Symbologies
This action first clears all current suffixes, then programs a carriage return suffix for all symbologies. Add CR Suffix All Symbologies Prefix Selections Add Prefix Clear One Prefix Clear All Prefixes Suffix Selections Add Suffix Clear One Suffix Clear All Suffixes Voyager 1602g User Guide...
Page 113: Function Code Transmit
To remove this delay, scan the Intercharacter Delay barcode, then set the number of delays to 0. Scan the Save barcode from the Programming Chart, beginning on page 225. Note: Intercharacter delays are not supported in USB serial emulation. Voyager 1602g User Guide...
Page 114: User Specified Intercharacter Delay
2 3 4 5 Interfunction Delays Interfunction Delay To remove this delay, scan the Interfunction Delay barcode, then set the number of delays to 0. Scan the Save barcode from the Programming Chart, beginning on page 225. Voyager 1602g User Guide...
Page 115: Intermessage Delay
2nd Scan Transmission Intermessage Delay Intermessage Delay To remove this delay, scan the Intermessage Delay barcode, then set the number of delays to 0. Scan the Save barcode from the Programming Chart, beginning on page 225. Voyager 1602g User Guide...
Page 116: Chapter 6 - Data Format
If a barcode is read that fails the first data format, the next data format, if there is one, will be used on the barcode data. If there is no other data format, the raw data is output. Voyager 1602g User Guide...
Page 117: Show Data Format
If you are creating a data format for Batch Mode Quantity, use 35 for the Code I.D. Note: 99 indicates all symbologies. Step 5. Length Specify what length (up to 9999 characters) of data will be acceptable for this symbology. Scan the four digit data length from the Programming Voyager 1602g User Guide...
Page 118: Other Programming Selections
• Clear all Data Formats This clears all data formats. • Save Exit and save your data format changes. • Discard Exit without saving any data format changes. Clear One Data Format Clear All Data Formats Voyager 1602g User Guide...
Page 119: Terminal Id Table
Syntax = F1xx where xx stands for the insert character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 216 for decimal, hex and character codes. Voyager 1602g User Guide...
Page 120: Send A Number Of Characters
10 is the number of characters to send for the first line 0D is the hex value for a CR F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: 1234567890 ABCDEFGHIJ <CR> Voyager 1602g User Guide...
Page 121: Send All Characters Up To A Particular Character
Using the barcode above, send all characters up to but not including “AB.” Command string: B900024142 B9 is the “Send all characters up to a string” command 0002 is the length of the string (2 characters) 41 is the hex value for A Voyager 1602g User Guide...
Page 122: Send All But The Last Characters
The string is made up of hex values for the characters in the string. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 216 for decimal, hex and character codes. Voyager 1602g User Guide...
Page 123: Insert Symbology Name
1234567890**ABCDEFGHIJ <CR> Insert symbology name B3 Insert the name of the barcode symbology in the output message, without moving the cursor. Only symbologies with a Honeywell ID are included (see Symbology Charts on page 213). Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 216 for decimal, hex and character codes.
Page 124: Insert Key Strokes
B5xxssnnssnnssnn. An example that would insert "abc" is as follows: B503001F00320030F833. Note: Key modifiers can be added together when needed. The sum is converted to hexadecimals. Example: Control Left+Shift Left = 17, converted to hexadecimal = 11. Voyager 1602g User Guide...
Page 125: Move Commands
6 characters followed by a carriage return. Using the barcode above: Command string: FE31F7F2060D FE is the “Compare characters” command 31 is the hex value for 1 Voyager 1602g User Guide...
Page 126: Move The Cursor To The End
F8 is the “Search forward for a character” command 44 is the hex value for “D” F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: DEFGHIJ <CR> Voyager 1602g User Guide...
Page 127: Search Backward For A Character
47 is the hex value for “G” 48 is the hex value for “H” F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: FGHIJ <CR> Voyager 1602g User Guide...
Page 128: Search Backward For A String
Syntax = E7xx where xx stands for the search character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 216 for decimal, hex and character codes. Voyager 1602g User Guide...
Page 129: Miscellaneous Commands
(characters to be replaced plus replacement characters); xx defines characters to be replaced and xx defines replacement characters, continuing through zz and zz E4 Example: Replace zeros with CRs in barcode data Voyager 1602g User Guide...
Page 130: Stop Replacing Characters
216 for decimal, hex and character codes. Check for a number EC Check to make sure there is an ASCII number at the current cursor position. The format is aborted if the character is not numeric. Voyager 1602g User Guide...
Page 131: Check For Non-Numeric Character
If there is no other format, the format fails and the raw data is output as 1234AB. If this barcode is read: the data is output as: AB1234 <CR> Voyager 1602g User Guide...
Page 132: Insert A Delay
• Data Format Required, Keep Prefix/Suffix Scanned data is modified according to your data format, and prefixes and suffixes are transmitted. Any data that does not match your data format Voyager 1602g User Guide...
Page 133: Data Format Non-Match Error Tone
If you wish to hear the error tone when a non-matching barcode is found, scan the Data Format Non-Match Error Tone On barcode. Default = Data Format Non-Match Error Tone On. * Data Format Non-Match Error Tone On Voyager 1602g User Guide...
Page 134: Primary/Alternate Data Formats
Format 3. You can switch to Data Format 1 for a single trigger pull by scanning the Single Scan-Data Format 1 barcode below. The next barcode that is scanned uses Data Format 1, then reverts back to Data Format 3. Single Scan-Primary Data Format Voyager 1602g User Guide...
Page 135 Single Scan-Data Format 1 Single Scan-Data Format 2 Single Scan-Data Format 3 Voyager 1602g User Guide...
Page 136: Chapter 7 - Symbologies
• GS1-128 • UPC-E1 Note: The selections in this User Guide are dependent on the Voyager 1602g model you have purchased. PDF and 2 dimensional barcodes can only be read by model 1602g2D and cannot be read by model 1602g1D.
Page 137: All Symbologies
Save barcodes from the Programming Chart, beginning on page 225. The minimum and maximum lengths and the defaults are included with the respective symbologies. Codabar <Default All Codabar Settings> Codabar On/Off * On Voyager 1602g User Guide...
Page 138 When Check Character is set to Validate, but Don’t Transmit, the unit will only read Codabar barcodes printed with a check character, but will not transmit the check character with the scanned data. * No Check Character Validate Modulo 16, but Don’t Transmit Validate Modulo 16 and Transmit Voyager 1602g User Guide...
Page 139 Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 2-60. Minimum Default = 4, Maximum Default = 60. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 140: Code 39
When Check Character is set to Validate, but Don’t Transmit, the unit only reads Code 39 barcodes printed with a check character, but will not transmit the check character with the scanned data. Voyager 1602g User Guide...
Page 141 39 barcodes until it reads a Code 39 barcode that does not have the append trig- ger. The data is then transmitted in the order in which the barcodes were read (FIFO). Default = Off. * Off Voyager 1602g User Guide...
Page 142 CR $M GS %C SO $N > US %E DEL %T Character pairs /M and /N decode as a minus sign and period respectively. Character pairs /P through /Y decode as 0 through 9. Full ASCII On Voyager 1602g User Guide...
Page 143: Interleaved 2 Of 5
When Check Digit is set to Validate, but Don’t Transmit, the unit only reads Inter- leaved 2 of 5 barcodes printed with a check digit, but will not transmit the check digit with the scanned data. Voyager 1602g User Guide...
Page 144: Interleaved 2 Of 5 Message Length
Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length NEC 2 of 5 < Default All NEC 2 of 5 Settings > NEC 2 of 5 On/Off * On Voyager 1602g User Guide...
Page 145 Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 146: Code 93
The scanner stores the data in the order in which the barcodes are read, deleting the first space from each. The scanner transmits the appended data when it reads a Code 93 barcode that starts with a character other than a space. Default = Off. Voyager 1602g User Guide...
Page 147: Straight 2 Of 5 Industrial (Three-Bar Start/Stop)
225. The data characters should then appear properly. Code 93 Code Page Straight 2 of 5 Industrial (three-bar start/stop) <Default All Straight 2 of 5 Industrial Settings> Straight 2 of 5 Industrial On/Off * Off Voyager 1602g User Guide...
Page 148: Straight 2 Of 5 Iata (Two-Bar Start/Stop)
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 149: Matrix 2 Of 5
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 150: Code 11
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 151: Code 128
3) a variation of Code 128 that supports concatenation of neighboring symbols, and 4) the standard layout for barcodes on a blood product label. Use the barcodes below to turn concatenation on or off. Default =Off. * Off Voyager 1602g User Guide...
Page 152 (see ISO 2022/ISO 646 Character Replacements on page 220), and scan the value and the Save barcode from the Programming Chart, beginning on page 225. The data characters should then appear properly. Code 128 Code Page Voyager 1602g User Guide...
Page 153: Gs1-128
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 1, Maximum Default = 80. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 154: Telepen
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-60. Minimum Default = 1, Maximum Default = 60. Minimum Message Length Voyager 1602g User Guide...
Page 155: Upc-A
Convert UPC-A to EAN-13 on page 144. UPC-A Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On Voyager 1602g User Guide...
Page 156 UPC-A Addenda Required When Required is scanned, the scanner will only read UPC-A barcodes that have addenda. You must then turn on a 2 or 5 digit addenda listed on page 139. Default = Not Required. Required Voyager 1602g User Guide...
Page 157: Upc-A/Ean-13 With Extended Coupon Code
If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code in a single read to transmit the data. No data is output unless both codes are read. Default = Off. * Off Allow Concatenation Require Concatenation Voyager 1602g User Guide...
Page 158: Coupon Gs1 Databar Output
UPC-E0 On selection. If you need to read codes that lead with the 1 number sys- tem, use UPC-E1 (page 143). Default = On. * UPC-E0 On UPC-E0 Off UPC-E0 Expand UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format. Default = Off. Voyager 1602g User Guide...
Page 159 When turned Off, there is no space. Default = On. * On UPC-E0 Check Digit Check Digit specifies whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On Voyager 1602g User Guide...
Page 160: Upc-E1
Most U.P.C. barcodes lead with the 0 number system. For these codes, use UPC-E0 (page 141). If you need to read codes that lead with the 1 number system, use the UPC-E1 On selection. Default = Off. UPC-E1 On Voyager 1602g User Guide...
Page 161: Ean/Jan-13
13 digit EAN-13 codes by adding a zero to the front. When Do not Convert UPC-A is selected, UPC-A codes are read as UPC-A. Default = Do no Convert UPC-A. UPC-A Converted to EAN-13 * Do not Convert UPC-A Voyager 1602g User Guide...
Page 162 * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off EAN/JAN-13 Addenda Required When Required is scanned, the scanner will only read EAN/JAN-13 barcodes that have addenda. Default = Not Required. Required * Not Required Voyager 1602g User Guide...
Page 163: Isbn Translate
EAN-13 with Extended Coupon Code (page 140). ISBN Translate When On is scanned, EAN-13 Bookland symbols are translated into their equiva- lent ISBN number format. Default = Off. * Off EAN/JAN-8 <Default All EAN/JAN-8 Settings> EAN/JAN-8 On/Off * On Voyager 1602g User Guide...
Page 164 * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off EAN/JAN-8 Addenda Required When Required is scanned, the scanner will only read EAN/JAN-8 barcodes that have addenda. Default = Not Required. Required * Not Required Voyager 1602g User Guide...
Page 165: Msi
When Check Character is set to Validate Type 10/11 and Transmit, the scanner will only read MSI barcodes printed with the specified type check character(s), and will transmit the character(s) at the end of the scanned data. Voyager 1602g User Guide...
Page 166 Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 4-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 167: Gs1 Databar Omnidirectional
GS1 DataBar Omnidirectional < Default All GS1 DataBar Omnidirectional Settings > GS1 DataBar Omnidirectional On/Off * On GS1 DataBar Limited < Default All GS1 DataBar Limited Settings > GS1 DataBar Limited On/Off * On Voyager 1602g User Guide...
Page 168: Gs1 Databar Expanded
Minimum Message Length Maximum Message Length Trioptic Code Note: If you are going to scan Code 32 Pharmaceutical codes (page 125), Trioptic Code must be off. Trioptic Code is used for labeling magnetic storage media. * Off Voyager 1602g User Guide...
Page 169: Codablock A
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-600. Minimum Default = 1, Maximum Default = 600. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 170: Codablock F
(page 120) for additional information. Minimum and Maximum lengths = 1-2048. Minimum Default = 1, Maximum Default = 2048. Minimum Message Length Maximum Message Length Label Code The standard Label Code is used in libraries. Default = Off. Voyager 1602g User Guide...
Page 171: Pdf417
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 172: Macropdf417
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-366. Minimum Default = 1, Maximum Default = 366. Minimum Message Length Voyager 1602g User Guide...
Page 173: Gs1 Composite Codes
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-2435. Minimum Default = 1, Maximum Default = 2435. Minimum Message Length Voyager 1602g User Guide...
Page 174: Gs1 Emulation
If EAN8 to EAN13 Conversion is scanned, all EAN8 barcodes are converted to EAN13 format. Default = GS1 Emulation Off. GS1-128 Emulation GS1 DataBar Emulation GS1 Code Expansion Off EAN8 to EAN13 Conversion * GS1 Emulation Off Voyager 1602g User Guide...
Page 175: Tcif Linked Code 39 (Tlc39)
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-7089. Minimum Default = 1, Maximum Default = 7089. Minimum Message Length Voyager 1602g User Guide...
Page 176 (see ISO 2022/ISO 646 Character Replacements on page 220), and scan the value and the Save barcode from the Programming Chart, beginning on page 225. The data characters should then appear properly. QR Code Page Voyager 1602g User Guide...
Page 177: Data Matrix
(see ISO 2022/ISO 646 Character Replacements on page 220), and scan the value and the Save barcode from the Programming Chart, beginning on page 225. The data characters should then appear properly. Data Matrix Code Page Voyager 1602g User Guide...
Page 178: Maxicode
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 1-150. Minimum Default = 1, Maximum Default = 150. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 179: Aztec Code
Aztec barcodes determined by information encoded in those barcodes. Once the proper number of codes is reached, the data is output in the order speci- fied in the barcodes. Default = On. * On Voyager 1602g User Guide...
Page 180: Chinese Sensible (Han Xin) Code
220), and scan the value and the Save barcode from the Programming Chart, beginning on page 225. The data characters should then appear properly. Aztec Code Page Chinese Sensible (Han Xin) Code < Default All Han Xin Settings > Han Xin Code On/Off * Off Voyager 1602g User Guide...
Page 181: Postal Codes - 2D
2D postal code selection, the first selection is overwritten. Default = 2D Postal Codes Off. * 2D Postal Codes Off Single 2D Postal Codes: Australian Post On British Post On Canadian Post On Intelligent Mail Barcode On Voyager 1602g User Guide...
Page 182 Also see Postnet Check Digit, page 168. Postnet with B and B’ Fields On InfoMail On Combination 2D Postal Codes: InfoMail and British Post On Intelligent Mail Barcode and Postnet with B and B’ Fields On Voyager 1602g User Guide...
Page 183 Postnet On Planet Code and Postnet with B and B’ Fields On Planet Code and Postal-4i On Planet Code and Intelligent Mail Barcode Planet Code, Postnet, and Postal-4i On Planet Code, Postnet, and Intelligent Mail Barcode On Voyager 1602g User Guide...
Page 184: Planet Code Check Digit
Postnet with B and B’ Fields On Planet Code Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of Planet Code data. Default = Don’t Transmit. Transmit Check Digit Voyager 1602g User Guide...
Page 185: Postnet Check Digit
C Table. Refer to the Australian Post Specification Tables. Combination C and N Tables causes the field to be interpreted using either the C or N Tables. Default = Bar Output. * Bar Output Numeric N Table Alphanumeric C Table Voyager 1602g User Guide...
Page 186: Postal Codes - Linear
Scan the barcodes below to change the message length. Refer to Message Length Description (page 120) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Voyager 1602g User Guide...
Page 187: Korea Post
Minimum Message Length Maximum Message Length Korea Post Check Digit This selection allows you to specify whether the check digit should be transmitted or not. Default = Don’t Transmit. Transmit Check Digit * Don’t Transmit Check Digit Voyager 1602g User Guide...
Page 188: Chapter 8 - Utilities
All Symbologies (Temporary) Show Decoder Revision Scan the barcode below to output the decoder revision. Show Decoder Revision Show Scan Driver Revision Scan the barcode below to output the scan driver revision. Show Scan Driver Revision Voyager 1602g User Guide...
Page 189: Show Software Revision
TotalFreedom is an open system architecture that makes it possible for you create applications that reside on your scanner. Decoding apps and Data Formatting apps can be created using TotalFreedom. For further information about TotalFree- dom, go to our website at sps.honeywell.com. Voyager 1602g User Guide...
Page 190: Application Plug-Ins (Apps)
Users in other locations can scan the barcode to load in the cus- tomized programming. Configure with EZConfig for Scanning Use the EZConfig for Scanning tool to configure your scanner online: Voyager 1602g User Guide...
Page 191: Reset The Factory Defaults
1. Access the Honeywell Technical Support Downloads Portal at honeywell.com/ PSSsoftware-downloads. 2. Go to Software > Barcode Scanners > Software > Tools and Utilities > EZConfig for Scanning > Current. 3. Download the Setup version of EZConfig for Scanning. 4. Open EZConfig to configure your scanner.
Page 192 You must relink (pair) the scanner to the host. See Wireless System Operation for additional information. Menu Commands, beginning on page 182, list the factory default settings for each of the commands (indicated by an asterisk (*) on the programming pages). Voyager 1602g User Guide...
Page 193 Voyager 1602g User Guide...
Page 194: Chapter 9 - Serial Programming Commands
This command is only used with wireless devices. It is used to specify whether you’re communicating with the host or the scanner. To send information to the scanner (connected to host), use :Voyager: The default factory setting for a Voyager scanner is Voyager scanner. This Voyager 1602g User Guide...
Page 195: Query Commands
When a query is used in place of a Tag field, the query applies to the entire set of commands available for the particular storage table indicated by the Storage field of the command. In this case, the SubTag and Data fields should not be used because they are ignored by the device. Voyager 1602g User Guide...
Page 196: Subtag Field Usage
Examples of Query Commands In the following examples, a bracketed notation [ ] depicts a non-displayable response. Example: What is the range of possible values for Codabar Coding Enable? Enter: cbrena*. Response: CBRENA0-1[ACK] Voyager 1602g User Guide...
Page 197: Trigger Commands
74), or by sending a serial menu command for triggering (page 75). Once the scanner is in serial trigger mode, the trigger is activated and deactivated by sending the following commands: Activate: SYN T CR Deactivate: SYN U CR Voyager 1602g User Guide...
Page 198: Reset The Custom Defaults
You must relink (pair) the scanner to the host. See Wireless System Operation for additional information. The charts on the following pages list the factory default settings for each of the commands (indicated by an asterisk (*) on the programming pages). Voyager 1602g User Guide...
Page 199: Menu Commands
Canada (French legacy) KBDCTY54 Canada (French) KBDCTY18 Canada (Multilingual) KBDCTY55 Croatia KBDCTY32 Czech KBDCTY15 Czech (Programmers) KBDCTY40 Czech (QWERTY) KBDCTY39 Czech (QWERTZ) KBDCTY38 Denmark KBDCTY8 Dutch (Netherlands) KBDCTY11 Estonia KBDCTY41 Faroese KBDCTY83 Finland KBDCTY2 France KBDCTY3 Voyager 1602g User Guide...
Page 200 Latvia (QWERTY) KBDCTY43 Lithuania KBDCTY44 Lithuania (IBM) KBDCTY45 Macedonia KBDCTY34 Malta KBDCTY74 Mongolian (Cyrillic) KBDCTY86 Norway KBDCTY9 Poland KBDCTY20 Polish (214) KBDCTY57 Polish (Programmers) KBDCTY58 Portugal KBDCTY13 Romania KBDCTY25 Russia KBDCTY26 Russian (MS) KBDCTY67 Russian (Typewriter) KBDCTY68 Voyager 1602g User Guide...
Page 201 Emulate External KBDSTY5 Keyboard Keyboard Conversion *Keyboard Conversion Off KBDCNV0 Convert all Characters to Upper KBDCNV1 Case Convert all Characters to Lower KBDCNV2 Case Control Character Output *Control Character Output Off KBDNPE0 *Control Character Output On KBDNPE1 Voyager 1602g User Guide...
Page 202 USB Serial TRMUSB130 CTS/RTS Emulation On USBCTS1 CTS/RTS Emulation Off* USBCTS0 ACK/NAK Mode On USBACK1 ACK/NAK Mode Off* USBACK0 Remote MasterMind for USB ReM Off REMIFC0 ReM On REMIFC1 Plug and Play Codes Gilbarco Terminal PAPGLB Voyager 1602g User Guide...
Page 203 Range 0 - 300 seconds 232LPT### RS232 Handshaking *RTS/CTS Off 232CTS0 Flow Control, No Timeout 232CTS1 Two-Direction Flow Control 232CTS2 Flow Control with Timeout 232CTS3 RS232 Timeout 232DEL#### *XON/XOFF Off 232XON0 XON/XOFF On 232XON1 *ACK/NAK Off 232ACK0 ACK/NAK On 232ACK1 Voyager 1602g User Guide...
Page 204 Relink Time-Out Relink Time-Out BT_RLT Reset Scanner Reset Scanner RESET_ Scanner Report Scanner Report RPTSCN Scanner Address Scanner Address BT_LDA Linked Modes Locked Link Mode BASCON0,DNG1 *Open Link Mode BASCON1,DNG1 Unlink Scanner BT_RMV Override Locked Scanner BT_RPL1 Voyager 1602g User Guide...
Page 205 Paging Mode BEPPGE1 BEPPGE0 Paging Pitch Range 400 - 9000 Hz (*1000) BEPPFQ#### Batch Mode Automatic Batch Mode BATENA1 *Batch Mode Off BATENA0 Inventory Batch Mode BATENA2 Persistent Batch Mode BATENA3 Batch Mode Beep BATBEP0 BATBEP1 Voyager 1602g User Guide...
Page 206 Battery Charge Status On - Short BTNSEC2 Press Battery Charge Status On - Long BTNSCL2 Press Flashlight Mode On - Short Press BTNSEC3 Flashlight Mode On - Long Press BTNSCL3 Bluetooth Pair/Unpair On - Short BTNSEC4 Press Voyager 1602g User Guide...
Page 207 Short Delay (500 ms) DLYGRD500 Medium Delay (1000 ms) DLYGRD1000 Long Delay (1500 ms) DLYGRD1500 User-Specified Good Read Delay Range 0 - 30,000 ms DLYGRD##### Manual Trigger Modes *Manual Trigger - Normal PAPHHF Manual Trigger - Enhanced PAPHHS Voyager 1602g User Guide...
Page 208 Aimer Mode SCNAIM0. *Interlaced SCNAIM2. Centering Window Centering On DECWIN1 *Centering Off DECWIN0 Left of Centering Window (*40%) DECLFT### Right of Centering Window DECRGT### (*60%) Top of Centering Window (*40%) DECTOP### Bottom of Centering Window DECBOT### (*60%) Voyager 1602g User Guide...
Page 209 Add CR Suffix to All Symbologies VSUFCR Prefix Add Prefix PREBK2## Clear One Prefix PRECL2 Clear All Prefixes PRECA2 Suffix Add Suffix SUFBK2## Clear One Suffix SUFCL2 Clear All Suffixes SUFCA2 Function Code Transmit *Enable RMVFNC0 Disable RMVFNC1 Voyager 1602g User Guide...
Page 210 Data Format 3 ALTFNM3 Single Scan Data Format Change Single Scan-Primary VSAF_0 Data Format Single Scan-Data Format 1 VSAF_1 Single Scan-Data Format 2 VSAF_2 Single Scan-Data Format 3 VSAF_3 Symbologies All Symbologies *All Symbologies Off ALLENA0 Voyager 1602g User Guide...
Page 211 *Off C39APP0 C39APP1 Code 32 Pharmaceutical (PARAF) *Off C39B320 C39B321 Code 39 Full ASCII *Off C39ASC0 C39ASC1 Code 39 Code Page C39DCP Interleaved 2 of 5 Default All Interleaved I25DFT 2 of 5 Settings I25ENA0 I25ENA1 Voyager 1602g User Guide...
Page 212 Default All Straight 2 of 5 IATA A25DFT Settings Straight 2 of 5 IATA *Off A25ENA0 A25ENA1 Straight 2 of 5 IATA Message Minimum (1 - 48) *4 A25MIN## Length Maximum (1 - 48) *48 A25MAX## Voyager 1602g User Guide...
Page 213 Maximum (0 - 80) *80 GS1MAX## Telepen Default All Telepen TELDFT Settings *Off TELENA0 TELENA1 Telepen Output *AIM Telepen Output TELOLD0 Original Telepen Output TELOLD1 Telepen Message Length Minimum (1 - 60) *1 TELMIN## Maximum (1 - 60) *60 TELMAX## Voyager 1602g User Guide...
Page 214 UPC-E0 Default All UPC-E UPEDFT Settings UPEEN00 UPEEN01 UPC-E0 Expand *Off UPEEXP0 UPEEXP1 UPC-E0 Addenda Required Required UPEARQ1 *Not Required UPEARQ0 UPC-E0 Addenda Separator UPEADS1 UPEADS0 UPC-E0 Check Digit UPECKX0 UPECKX1 UPC-E0 Leading Zero UPENSX0 UPENSX1 Voyager 1602g User Guide...
Page 215 EA8CKX1 EAN/JAN-8 Addenda *2 Digit Addenda Off EA8AD20 2 Digit Addenda On EA8AD21 *5 Digit Addenda Off EA8AD50 5 Digit Addenda On EA8AD51 EAN/JAN-8 Addenda Required *Not Required EA8ARQ0 Required EA8ARQ1 EAN/JAN-8 Addenda EA8ADS0 Separator EA8ADS1 Voyager 1602g User Guide...
Page 216 Maximum (4 - 74) *74 RSEMAX## Trioptic Code *Off TRIENA0 TRIENA1 Codablock A Default All Codablock A Settings CBADFT *Off CBAENA0 CBAENA1 Codablock A Msg. Length Minimum (1 - 600) *1 CBAMIN### Maximum (1 - 600) *600 CBAMAX### Voyager 1602g User Guide...
Page 217 EAN8 to EAN13 Conversion EANEMU4 *GS1 Emulation Off EANEMU0 TCIF Linked Code 39 T39ENA1 *Off T39ENA0 QR Code Default All QR Code Settings QRCDFT QRCENA1 QRCENA0 QR Code Msg. Length Minimum (1-7089) *1 QRCMIN#### Maximum (1-7089) *7089 QRCMAX#### Voyager 1602g User Guide...
Page 218 Chinese Sensible (Han Xin) Code Default All Han Xin Code Settings HX_DFT HX_ENA1 *Off HX_ENA0 Chinese Sensible (Han Xin) Code Minimum (1-7833) *1 HX_MIN#### Msg. Length Maximum (1-7833) *7833 HX_MAX#### Postal Codes - 2D 2D Postal Codes *Off POSTAL0 Voyager 1602g User Guide...
Page 219 Fields On Planet and Postal-4i On POSTAL13 Planet and Intelligent Mail POSTAL15 Barcode On Planet, Postnet, and Postal-4i On POSTAL21 Planet, Postnet, and Intelligent POSTAL22 Mail Barcode On Planet, Postal-4i, and Intelligent POSTAL23 Mail Barcode On Voyager 1602g User Guide...
Page 220 Minimum (2 - 80) *4 KPCMIN## Maximum (2 - 80) *48 KPCMAX## Korea Post Check Digit Transmit Check Digit KPCCHK1 *Don’t Transmit Check Digit KPCCHK0 Utilities Add Code I.D. Prefix to All Symbologies (Temporary) PRECA2,BK2995C80! Show Decoder Revision REV_DR Voyager 1602g User Guide...
Page 221 TSTMNU1 *Off TSTMNU0 Application Plug-Ins (Apps) *Decoding Apps On PLGDCE1 Decoding Apps Off PLGDCE0 *Formatting Apps On PLGFOE1 Formatting Apps Off PLGFOE0 List Apps PLGINF Resetting the Factory Defaults Remove Custom Defaults DEFOVR Activate Defaults DEFALT Voyager 1602g User Guide...
Page 222: Chapter 10 - Product Specifications
CHAPTER PRODUCT SPECIFICATIONS Voyager 1602g Product Specifications Parameter Specification Mechanical Height .9 in. (22mm) Length 4.7 in. (120mm) Width 1.9 in. (48mm) Weight 3.5 oz. (100g) Electrical Battery: Lithium Ion 3.7v 750mAh Number of Scans up to 2250 from full charge...
Page 223 28 - 155mm (1.1 - 6.1 in.) 10mil Data Matrix 18 - 149mm (0.7 - 5.8 in.) 20mil QR Code 27 - 220mm (1.1 - 8.6 in.) *Storage outside of this temperature range could be detrimental to battery life. Voyager 1602g User Guide...
Page 224: Required Safety Labels
Required Safety Labels Illumination output Compliance label locations Part number, serial number and revision information location Voyager 1602g User Guide...
Page 225: Standard Connector Pinout
Note: Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage not covered by your warranty. Micro-B USB 1 2 3 4 5 1 Vcc 2 Data - 3 Data + 4 ID 5 Ground Voyager 1602g User Guide...
Page 226: Chapter 11 - Maintenance
Solvents may damage the finish or the window. Caution: Ensure all components are dry prior to mating the scanner with charging accessories or other peripheral devices. Mating wet components may cause damage not covered by the warranty. Voyager 1602g User Guide...
Page 227: Inspecting Cords And Connectors
210. Replacing a Battery Step 1. Use a Phillips head screwdriver to remove the back cover of the scanner. Step 2. Lift the back cover up and out to expose the battery. Voyager 1602g User Guide...
Page 228: Troubleshooting
Troubleshooting Note: Make sure that your scanner’s battery is charged. Visit the Services and Support section of our website (sps.honeywell.com) to check for the latest software for both the scanner and the host. Is the scanner having trouble reading your symbols? If the scanner isn’t reading symbols well, check that the symbols:...
Page 229 Voyager 1602g User Guide...
Page 230: Chapter A - Reference Charts
Code 39 (supports Full ASCII mode) 0, 1, 3, 4, 5, 7 TCIF Linked Code 39 (TLC39) Code 93 and 93i 0-9, A-Z, 0, 1, 3, 4 EAN-13 (including Bookland EAN) EAN-13 with Add-On EAN-13 with Extended Coupon Code EAN-8 Voyager 1602g User Guide...
Page 231 0, 1, 2, 3, 8, 9, A, B, C UPC-A UPC-A with Add-On UPC-A with Extended Coupon Code UPC-E UPC-E with Add-On UPC-E1 Add Honeywell Code ID 5C80 Add AIM Code ID 5C81 Add Backslash 5C5C Batch mode quantity Voyager 1602g User Guide...
Page 232: 2D Symbologies
QR Code Micro QR Code Postal Symbologies Honeywell Possible modifiers Postal Symbology All Symbologies Australian Post British Post Canadian Post China Post InfoMail Intelligent Mail Barcode Japanese Post KIX (Netherlands) Post Korea Post Planet Code Postal-4i Postnet Voyager 1602g User Guide...
Page 233: Ascii Conversion Chart (Code
CTRL+ R Backspace CTRL+ S Save Back Tab CTRL+ T CTRL+ U CTRL+ V Paste CTRL+ W CTRL+ X CTRL+ Y CTRL+ Z CTRL+ [ CTRL+ \ CTRL+ ] CTRL+ ^ CTRL+ - ⌂ NP Enter Voyager 1602g User Guide...
Page 234: Lower Ascii Reference Table
„ ä Insert 0x52 … à Delete 0x53 † å Home 0x47 ‡ ç 0x4F ˆ ê Page Up 0x49 ‰ ë Page Down 0x51 Š è Right ALT 0x38 ‹ ï Right CTRL 0x1D Voyager 1602g User Guide...
Page 235 ░ ° ▒ ± ▓ ² │ ³ ┤ ´ ╡ µ ╢ ¶ ╖ · ╕ ¸ ╣ ¹ ║ º ╗ » ╝ ¼ ╜ ½ ╛ ¾ ┐ ¿ └ À ┴ Á Voyager 1602g User Guide...
Page 236 æ µ τ ç Φ è Θ é Ω ê δ ë ∞ ì φ í ε î ∩ ï ≡ ð ñ ± ≥ ò ≤ ó ⌠ ô ⌡ õ ö ÷ ≈ ÷ Voyager 1602g User Guide...
Page 237: Iso 2022/Iso 646 Character Replacements
(standard ASCII) Automatic National Character ISO/IEC 2022 2 (default) Replacement Binary Code page Default “Automatic National Character replacement” will select the below Honeywell Code Page options for Code128, Code 39 and Code 93. United States ISO/IEC 646-06 Canada ISO /IEC 646-121...
Page 238 à ò è ì § Ã Ç Õ ã ç õ ° § ¡ Ñ ¿ ° ñ ç ˜ · ¡ Ñ Ç ¿ ´ ñ ç ¨ ISO / IEC 646 National Character Replacements Voyager 1602g User Guide...
Page 239: Keyboard Key References
1F 20 21 22 23 24 25 26 27 28 29 5C 61 66 2E 2F 30 31 32 33 34 35 36 37 5D 62 67 4F 54 59 3A 3B 3C 3E 3F 38 40 105 Key European Style Keyboard Voyager 1602g User Guide...
Page 240 9 780330 290951 Code 128 Code 39 Code 128 BC321 Codabar A13579B Code 93 Straight 2 of 5 Industrial 123456 123456-9$ Matrix 2 of 5 6543210 GS1 DataBar PDF417 (01) 00123456789012 Car Registration Data Matrix Test Symbol Voyager 1602g User Guide...
Page 241 SAMPLE SYMBOLS (CONTINUED) QR Code Aztec Numbers Package Label MaxiCode Test Message Micro PDF417 Test Message Postnet Zip Code 4-CB (4-State Customer Barcode) 01,234,567094,987654321,01234567891 ID-tag (UPU 4-State) J18CUSA8E6N062315014880T Voyager 1602g User Guide...
Page 242 PROGRAMMING CHART Voyager 1602g User Guide...
Page 243 PROGRAMMING CHART (CONTINUED) Save Discard Reset Note: If you make an error while scanning the letters or digits (before scanning Save), scan Discard, scan the correct letters or digits, and Save again. Voyager 1602g User Guide...
