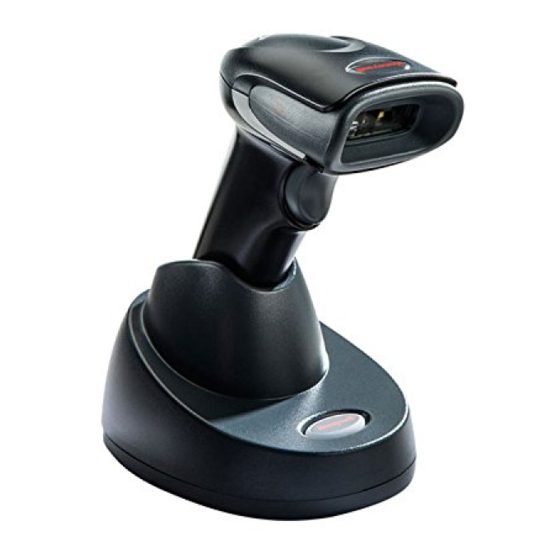

Cordless area-imaging scanner
Hide thumbs Also See for Voyager 1452g Series:

Advertisement

Quick Links

Voyager™ 1452g Series
Cordless Area-Imaging Scanner
Quick Start Guide
Aller à
www.honeywellaidc.com
Vai a
www.honeywellaidc.com
Gehe zu
www.honeywellaidc.com
Ir a
www.honeywellaidc.com
Para Português, acesse www.honeywellaidc.com.br.
Перейти на русскоязычный сайт www.honeywellaidc.com.
Pro češtinu jdi na www.honeywellaidc.com.
Pre slovenčinu choď na
日本語 :
www.honeywellaidc.com
中文 (简体) ,请访问 :www.honeywellaidc.com。
中文 (繁体) ,请访问 :
한글
www.honeywellaidc.com
pour le français.
per l'italiano.
für Deutsch.
para español.
www.honeywellaidc.com
をご覧ください。

www.honeywellaidc.com。
로 이동합니다 .
VG1452-QS Rev A
11/14

Advertisement

Table of Contents
loading

Summary of Contents for Honeywell Voyager 1452g Series

  • Page 1 Voyager™ 1452g Series Cordless Area-Imaging Scanner Quick Start Guide Aller à www.honeywellaidc.com pour le français. Vai a www.honeywellaidc.com per l'italiano. Gehe zu www.honeywellaidc.com für Deutsch. Ir a www.honeywellaidc.com para español. Para Português, acesse www.honeywellaidc.com.br. Перейти на русскоязычный сайт www.honeywellaidc.com. Pro češtinu jdi na www.honeywellaidc.com. Pre slovenčinu choď...
  • Page 2: Getting Started

    Note: Refer to your user’s guide for information about cleaning your device. For localized language versions of this document, go to www.honeywellaidc.com. Getting Started Turn off the computer’s power before connecting the base, then power up the computer once the base is fully connected. When the base is connected and powered up, put the scanner in the base to establish a link.
  • Page 3 USB Connection: Keyboard Wedge Connection:...
  • Page 4 RS232 Serial Port Connection: RS485 Connection:...
  • Page 5: Reading Techniques

    Reading Techniques The view finder projects an aiming beam that should be centered over the bar code, but it can be positioned in any direction for a good read. Hold the scanner over the bar code, pull the trigger, and center the aiming beam on the bar code.
  • Page 6: Usb Serial

    Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use the next available COM Port number.
  • Page 7: Keyboard Country

    USB PC Keyboard Scan the following code to program the scanner for a USB PC Keyboard. USB PC Keyboard Keyboard Country Scan the Program Keyboard Country bar code below, then scan the numeric bar code(s) from page 13, then the Save bar code to program the keyboard for your country.
  • Page 8: Override Locked Scanner

    Note: For a complete list of country codes, see the User’s Guide for your product at our website, www.honeywellaidc.com. Locked Link If you link a scanner to a base using the Locked Link Mode, other scanners are blocked from being linked if they are inadvertently placed into the base.
  • Page 9: Unlinking The Scanner

    Unlinking the Scanner If the base has a scanner linked to it, that scanner must be unlinked before a new scanner can be linked. Once the previous scanner is unlinked, it will no longer communicate with the base. Scan the Unlink Scanner bar code to unlink a scanner.
  • Page 10: Add Code Id Prefix To All Symbologies

    Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes.
  • Page 11: Function Code Transmit

    Function Code Transmit When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in your User’s Guide. When the scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted.
  • Page 12: Data Format Editor Instructions

    Data Format Editor Instructions The following are abbreviated instructions for entering a data format. For complete instructions refer to your User’s Guide, available at our website, www.honeywellaidc.com. 1. Scan the Enter Data Format symbol. 2. Primary/Alternate Format: scan 0 for Primary Format 3.
  • Page 13: Programming Chart

    Programming Chart...
  • Page 14 Save...
  • Page 15: Technical Assistance

    Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.
  • Page 16: User Documentation

    User Documentation For localized versions of this document, and to download the User’s Guide, go to www.honeywellaidc.com.
