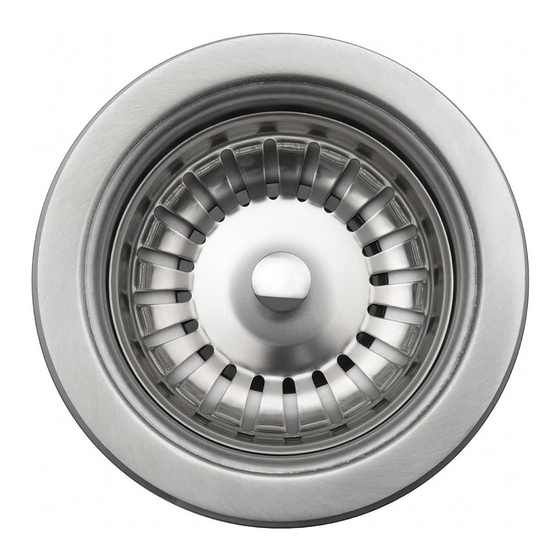

- Page 1 INSTALLATION GUIDE Kitchen Strainer ST-5 www.kraususa.com Toll Free: 1.800.775.0703 © 2022 Kraus USA Plumbing LLC REV. September 18, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Strainer. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. - Page 4 Diagram and Parts List ST-1 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut...
- Page 5 Dimensions Ø 4 1/2" (115mm) Ø 4 3/4" (120mm) Model #: ST-5 Ø 4 3/4" x 2 1/2" Dimensions:...
- Page 6 Step 1. Disassemble strainer...
- Page 7 Step 2. Insert metal strainer into drain hole with foam gasket attached. Install rubber gasket and main body underneath the sink Strainer Cover Metal Strainer Screw Foam Gasket Main Body Rubber Gasket Drain Gasket Drain Nut...
- Page 8 Step 3. Using the screw, tighten the metal strainer and main body into place Screw Step 4. Insert strainer cover to seal water Strainer Cover...
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish Part # A. Strainer Cover KP33012 SS,PGM* B. Screw 1 5/8" KP33013 C. Metal Strainer SS,PGM* KP33014 D. Foam Gasket KP33015 E. Rubber Gasket KP33016 F. Main Body KP33017 G. Drain Gasket KP33018 KP33019 H. - Page 10 (1) year from the date of purchase. Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus.
- Page 11 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR OTHERWISE.
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
