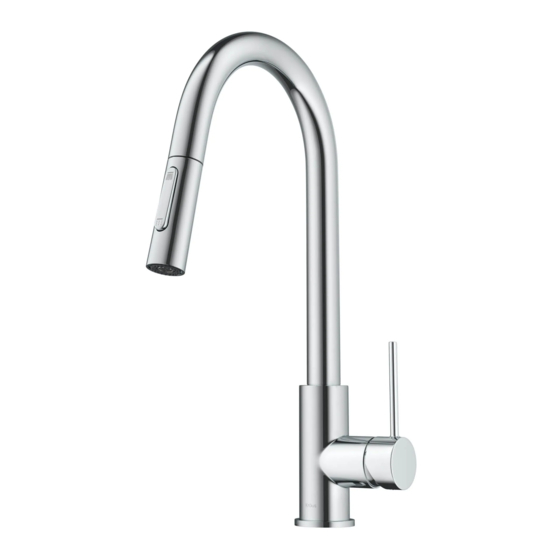

- Page 1 INSTALLATION MANUAL Oletto Pull Down Touch Kitchen Faucet KTF-3104 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. January 26, 2023...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 Battery & Control Box Mounting Screws F. Batteries G. Weight H. Hex Key Brass Check Valve For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or Customerservice@kraususa.com...
- Page 5 Faucet Dimension 4 1/8" (104mm) 10 5/8" (269mm) 9" (230mm) 3/8" Compression Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Installing the faucet assembly Insert faucet body through the hole in the sink or countertop. Step 2. Securing the faucet assembly Install the rubber washer and metal washer onto the threaded mounting shank. Thread the nut onto the mounting shank. Lock the nut into position by tightening the screws.
- Page 7 Step 3. Connect the waterlines Thread the nut (1) onto the outlet of the water supply valve (2) and tighten with wrench. Thread nut (3) on the supply line onto the nut (1) and tighten with wrench. Do not overtighten. NOTE: Please make sure filter washers are installed before connecting to the main valve.
-
Page 8: Step 5. Control Box Installation
Step 5. Control box installation Connect the supply hose to inlet on the control box. Connect the pull down hose to the outlet. Install the control box on cabinet wall vertically by pulling the adhesive from the velcro backing on the control box. Attach the control box to the cabinet wall. - Page 9 Step 6. Attach the battery housing Install the 4 AA batteries provided in battery housing. Pull the adhesive from the velcro backing on battery housing and attach the battery housing to the cabinet wall. You may also use the mounting screw (E) to attach the battery housing to the cabinet wall.
- Page 10 Step 7. Connect the wires 1. Attach the C-clip from control box to the faucet shank. 2. Connect the wire from the faucet to the control box. 3. Connect battery housing to the control box.
- Page 11 Step 8. Attach the counterweight Install the weight (G) on the marked area of the spray hose. Marked Area...
- Page 12 Step 9. Installation complete NOTES: 1. When the faucet is on the LED indicator light is white. If you see a blinking red light three times, that means the battery is at 10%. This is a reminder to change the batteries or change the faucet to the mechanical function. 2.
-
Page 13: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # 1. Sprayer Head KP46002 CH,SFS,MB,BG* 2. Check Valve KP46025 3. Sprayer Hose KP46001 CH,SFS,MB,BG* KP46014 4. Handle Assembly CH,SFS,MB,BG* 5. Cartridge Cover KP46015 CH,SFS,MB,BG* KP46013 6. Locking Nut 7. Cartridge KP46012 8. LED Base Seat Assembly KP46003 CH,SFS,MB,BG* 9. -
Page 14: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Locking nut has come loose or Remove button located at top of handle. Leakage under faucet handle cartridge needs to be reseated. - Page 15 Trouble-Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Insensitive or ineffective touch The handle is not open. Open the handle then touch the tube or the body, water will turn on.
- Page 16 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
- Page 17 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at: Kraus USA Plumbing, LLC 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 18 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
