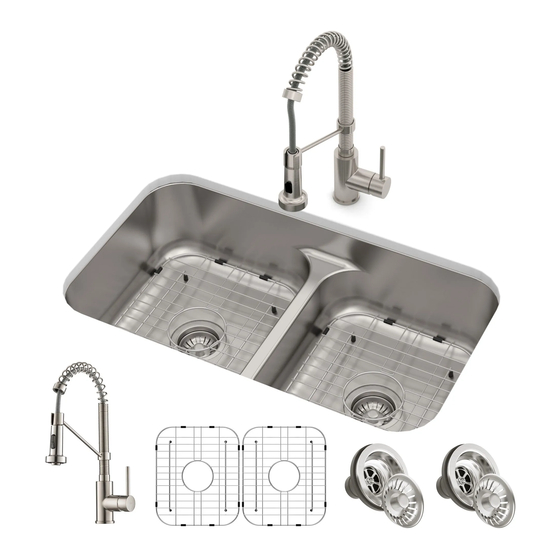

- Page 1 INSTALLATION MANUAL All-In-One Kitchen Set KCA-1200 www.kraususa.com Toll Free: 1.800.775.0703 © 2020 Kraus USA Inc. REV. December 11, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 3 The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
- Page 4 Pencil Screwdriver Putty Knife NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount sinks with countertop materials other than wood, marble or granite. Make sure to check off that you have all of the following items Kitchen Sink - KBU32...
- Page 5 Sink Dimensions: 14 1/2" 14 1/2" 368mm 368mm 32" 813mm Model #: KBU32 Sink Dimensions: 32” x 19” x 8 1/2” Min Cabinet Size: 36” Matching Grid: KBG-32 (2) Drain Model #: ST-1 (2)
- Page 6 1. Determine Reveal Type Use scissors to cut along the line of the paper template for your desired reveal type (Negative, Positive or Flushed Reveal). KRAUS Recommended Installation Type 3/8“ Positive Reveal Flushed/Zero Reveal 1/8“ Negative Reveal 3/8”POSITIVE 1/8”NEGATIVE FLUSHED/ZERO...
- Page 7 2. Position Template Check the cut-out template against the actual sink to ensure a proper · sized cut-out. · Place the cut-out template in the desired location on the countertop. NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink. 3.
- Page 8 4. Cut Countertop · Cut the opening in the countertop by carefully following the traced line. NOTE: Please use the appropriate saw that best fits your countertop material.
- Page 9 5. Set up Mounting Brackets · Turn countertop over and align sink with countertop. Decide location for mounting brackets. · Mounting holes should be 1/2" from edge of sink. 1/2" (13mm) 6. Drill Hole in Countertop · Drill 3/8" diameter x 1/2" deep hole in countertop.
- Page 10 7. Install Anchors · Insert anchors into drilled holes and lightly tap with a hammer until flush. 8. Secure Sink to Countertop · Use a bead of silicone (or preferred adhesive) around the rim of the sink. Check the alignment of the sink to the cutout in the countertop. Place sink over cutout hole and press firmly.
-
Page 11: Attach Mounting Hardware
9. Attach Mounting Hardware · Attach mounting hardware to secure bowl. Remove excess sealant from inside lip. · Allow sealant to set for 30 - 60 minutes. NOTE: Use acetone or rubbing alcohol to remove any excess sealant. -
Page 12: Maintenance
10. Install Plumbing Fixtures · Connect drain to sink. Connect trap to drain. Connect water supply connections to faucet according to manufacturer's instructions. · Run water into sink and check for leaks. · Note: Before installation, please check that the drain kit complies with ASME A112.18.2/CSA B125.2 and with CUPC certification. - Page 13 Faucet Diagram and Parts List A. Spray Head B. Faucet Body C. Mounting Hardware C1. Rubber & Metal Washer C2. Mounting Nut C3. Mounting Screws D. Quick Connector Weight E1. Weight Clip E2. Weight 2.5mm Hex Wrench...
-
Page 14: Faucet Dimensions
Faucet Dimensions: 10 3/4" (274mm) 3 1/2" (88mm) 25° Ø 1 7/8" 8 3/4" (48mm) (221mm) 90° Ø 2 1/8" (54mm) 9/16" - 24UNF Installer Tip: Shut off main water supply before installing new faucet. - Page 15 Step 1. Remove mounting hardware Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove mounting hardware (C) from faucet body (B). Step 2. Installing the faucet assembly Optional No Escutcheon Installation. Insert faucet body through the hole in the sink.
- Page 16 Step 3. Securing the faucet assembly Install the rubber washer and metal washer (C1) onto the threaded mounting shank. Thread the nut (C2) onto the mounting shank. Lock the nut (C2) into position by tightening the screws (C3). Do not overtighten. Step 4.
- Page 17 Step 5. Securing the faucet assembly Install the weight clip (E1) at the point of the hose marking "weight here". Insert the weight (E2) onto the clip (E1) by sliding it down onto the clip (E1). Step 6. Making the waterline connections Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a...
- Page 18 Step 7. Flushing and checking for leaks Pull the hose assembly out of the spout and remove the spray head by unscrewing it from the hose in a counterclockwise direction. Be sure to hold the end of the hose down into the sink and turn the faucet on to the warm position where it mixes hot and cold water.
-
Page 19: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Bonnet nut has come loose Remove the cover button. Loosen set screw with hex wrench. Remove the handle. - Page 20 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 21 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 22 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. KRAUS USA has the right to change, modify, and/or update the warranty policy at any time. For the latest, most up to date comprehensive warranty, go to www.kraususa.com/warranty...
- Page 23 If you are an Authorized Partner please contact a Partner Support Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8954 Partnersupport@kraususa.com In requesting warranty service, please be ready to provide: Proof of purchase. A description of the problem. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance...
- Page 24 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
- Page 25 INSTALLATION GUIDE Kitchen Strainer ST-1 / ST-2 / ST-3 / BST-1 / BST-2 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. November 5, 2020...
- Page 26 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 27: Prior To Installation
Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. - Page 28 Diagram and Parts List ST-1 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut ST-2 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E.
- Page 29 Diagram and Parts List BST-1 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E. Foam Gasket F. Rubber Gasket G. Main Body H. Drain Gasket I. Drain Nut BST-2 A. Strainer Cover B. Basket C. Screw D. Metal Strainer E.
- Page 30 Diagram and Parts List ST-3 A. Strainer Cover B. Screw C. Metal Strainer D. Foam Gasket E. Rubber Gasket F. Main Body G. Drain Gasket H. Drain Nut...
- Page 31 Dimensions Ø 4 1/2" Ø 4 1/2" Ø 4 1/2" (115mm) (115mm) (114mm) 3 3/4" 3 3/4" 4 1/2" (94mm) (94mm) (114mm) 1 1/2" - 1 1/2" - 1 1/2" - 11 1/2" Ø 4 3/4" 11 1/2" Ø 4 3/4" 4 5/8"...
- Page 32 Step 1. Disassemble strainer...
- Page 33 Step 2. Insert metal strainer into drain hole with foam gasket attached. Install rubber gasket and main body underneath the sink Strainer Cover Screw Metal Strainer Foam Gasket Rubber Gasket Main Body Drain Gasket Drain Nut...
- Page 34 Step 3. Using the screw, tighten the metal strainer and main body into place Screw Step 4. Insert strainer cover to seal water Strainer Cover...
-
Page 35: Replacement Parts
Replacement Parts ST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 A. Strainer Cover PGM* KPU00010-PGM B. Screw 1 1/4" KPU00003 B. Screw 1 1/4" PGM* KPU00003-PGM C. Metal Strainer KPU00011 C. Metal Strainer PGM* KPU00011-PGM D. Foam Gasket KPU00005 E. - Page 36 Replacement Parts ST-2 Replacement Parts List Finish Part # A. Strainer Cover KPU00010 B. Screw 1 5/8" KPU00013 C. Metal Strainer KPU00011 KPU00005 D. Foam Gasket KPU00006 E. Rubber Gasket KPU00012 F. Main Body KPU00008 G. Drain Gasket KPU00009 H. Drain Nut...
- Page 37 Replacement Parts BST-1 Replacement Parts List Finish Part # A. Strainer Cover KPU00001 B. Basket KPU00002 C. Screw 1 1/4" KPU00003 KPU00004 D. Metal Strainer KPU00005 E. Foam Gasket KPU00006 F. Rubber Gasket KPU00007 G. Main Body KPU00008 H. Drain Gasket KPU00009 Drain Nut BST-2...
- Page 38 Replacement Parts ST-3 Replacement Parts List Finish Part # A. Strainer Cover KP22191 B. Screw KP22198 C. Metal Strainer KP22192 KP22193 D. Foam Gasket KP22194 E. Rubber Gasket KP22195 F. Main Body KP22196 G. Drain Gasket KP22197 H. Drain Nut...
- Page 39 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 40 12 Harbor Park Drive Port Washington, NY 11050 Toll-Free : 800-775-0703 Customerservice@kraususa.com If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL , please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
