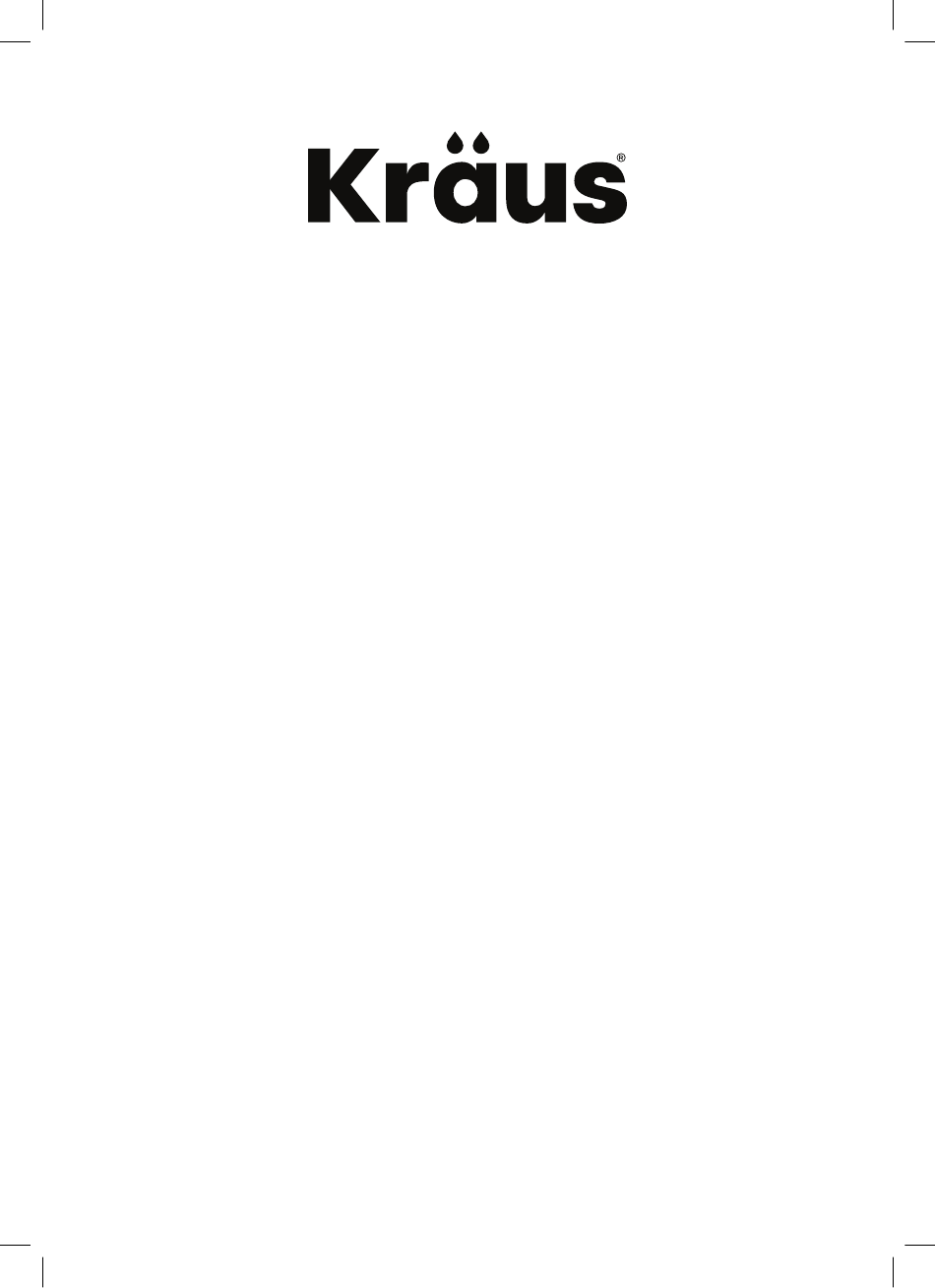

- Page 1 INSTALLATION GUIDE Oletto™ Sensor Commercial Pull Down Kitchen Faucet KSF-2631 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. MAR 17, 2021...
- Page 2 Congratulations on the purchase of your new Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com Have the model number available, and retain a copy of your receipt...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn o the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •... - Page 4 Diagram and Parts List K2 K3 F. Weight K. Battery Pack A. Spray Head B. Faucet Body G. Weight Clip K1. Battery Pack C. Escutcheon H. Quick Connector K2. Screw D. Gasket I. Sensor Control Box K3. Anchor E. Easy Install J.
- Page 5 Faucet Dimension 10 1/4'' 11'' 10 7/8'' [279.0mm] [275.0mm] [259.2mm] 9 1/8'' 9 1/8'' [233.2mm] [233.2mm] 2 1/2'' Ø2 1/8'' [62.5mm] [53.0mm] 3/8”-compression Installer Tip:...
- Page 6 Step 1a: Installing the easy install assembly (Without escutcheon) Shut o the water supply. Remove the old faucet. Clean the mounting surface. Check for the proper thickness of the sink. Insert the base (a) into sink. If your model does have a escutcheon, skip to step 1 b. NOTE : “Front”...
- Page 7 Step 2: Installing the easy install assembly Fig 1 Fig 2 Fig 4 Fig 3 Press the base (a) and escutcheon (C) so that they can not move, then turn the screws with the provided hex wrench (M, HEX: 6.0mm) clockwise, as shown Fig 1. When the mounting plates (b) make contact with the sink (1), continue to turn the screw with the provided hex wrench (M, HEX: 6.0mm) clockwise, as shown Fig 2, until the base (a) is completely tightened and secured, as shown Fig.4.
- Page 8 Step 3: Installing the faucet Insert the hose (1)、supply lines (2) and quick connect hose (3) one by one through the hole of the base (a). Carefully insert the hoses into the base. Place the faucet assembly onto the base (a) as shown in the above gure. Secure the faucet assembly (B) by tightening the set screw with the provided hex wrench (N, Hex: 2.5 mm).
- Page 9 Step 4: Installing the sensor control box Install the data cable (1) to the control box connection (2). Ensure the arrows on the data cable and control box connection are aligned to one another to ensure proper installation. Ensure they are tightly connected by rmly pushing together.
- Page 10 Step 6: Securing the faucet assembly Install the weight clip (G) at the point of the hose marking "weight here". Insert the weight (F) onto the weight clip (G) by sliding it down onto the weight clip (G). Step 7: Installing the battery pack To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2).
- Page 11 Step 8: Installing the battery pack Drill a hole in the wall using a 6mm (1/4 in.) diamater drill bit. Install the battery pack (K1) using the molly anchor (K3) and screw (K2) provided. Insert the battery pack cable (1) into the control box connection (2).
- Page 12 Step 10: Flush faucet Flushing and checking for leaks: After the installation is complete, unscrew and remove the spray head in order to ush the line. Turn on the water supply and allow both hot and cold water to run for at least one minute each. This ushes away any debris that could cause damage to internal parts.
-
Page 13: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Spray Head SFS, MB, SFACB* KP27250 2. Washer KP27251 3. Sprayer Hose BLMB, GRSFS, KP27252 BLSFACB* 4. Spring Assembly SFS, MB, SFACB* KP27253 5. Inverter BL, GR* KP27254 6. O-ring KP27255 7. -
Page 14: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: Problem 1: Water will not shut o when turning the handle to the OFF position. When you turn the handle to But when you turn the handle This indicates that the cartridge the full on position, the water... -
Page 15: Care And Maintenance
Problem 4: The sensor is not activating the water ow. When you turn the handle to However, when you move your Check whether the switch Hexagon Nut the full on position, the hand in front of the sensor, the button (1) is tighten, if it is water will turn on. - Page 16 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 17 Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
- Page 18 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
