Summary of Contents for Kraus PST1

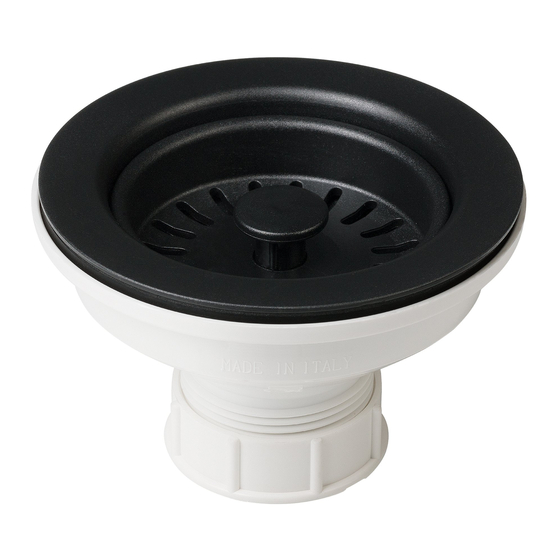

- Page 1 INSTALLATION GUIDE Plastic Kitchen Strainer PST1 www.kraususa.com Toll Free: 1.800.775.0703 © 2018 Kraus USA Inc. REV. November 11, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Toll-Free: 800-775-0703 or Customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional. - Page 4 Diagram and Parts List A. Strainer Cover B. Screw 1 3/4" C. Plastic Strainer D. Thin Gasket E. Rubber Gasket F. Main Body G. Drain C Gasket H. Drain K Gasket Drain Nut...
- Page 5 Dimensions Ø 4 1/2" (114mm) 2 3/4" (69mm) 1 1/2" - 11 1/2" NPSM Model #: PST1 Ø 4 1/2" x 2 3/4" Dimensions:...
- Page 6 Step 1. Disassemble strainer...
- Page 7 Step 2. Insert plastic strainer into drain hole with thin gasket attached. Install rubber gasket and main body underneath the sink. Note: You will use the Drain C Gasket for a straight pipe and the Drain K Gasket for a pipe with a lip. Strainer Cover Screw Plastic Strainer...
- Page 8 Step 3. Using the screw, tighten the plastic strainer and main body into place Screw Step 4. Insert strainer cover to seal water Strainer Cover...
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish Part # A. Strainer Cover KP35000-WH A. Strainer Cover KP35000-BL A. Strainer Cover KP35000-BR A. Strainer Cover KP35000-BE A. Strainer Cover KP35000-GR A. Strainer Cover KP35000-TR B. Screw 1 3/4" KP35001 C. Plastic Strainer KP35002-WH C. - Page 10 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 11 12 Harbor Park Drive Port Washington, NY 11050 Toll-Free : 800-775-0703 Customerservice@kraususa.com If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL , please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 12 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
