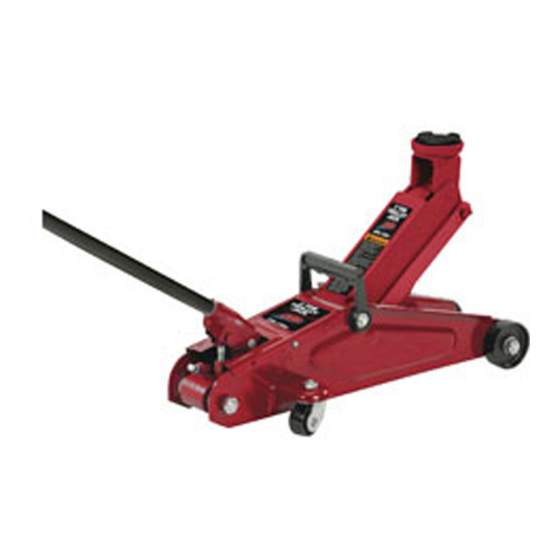

ATD Tools ATD-7304 Owner's Manual

Trolley jack

Model

ATD-7304

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer,

Read this manual and follow all the Safety Rules and Operating Instructions before using this product.

birth defects or other reproductive harm. Wash hands after handling.

Owner's Manual

Trolley Jack

Capacity

2 Ton

WARNING

To avoid crushing and related injuries:

NEVER work on, under or around a

load supported only by a hydraulic

jack. ALWAYS use adequately rated

jack stands.

Table of Contents

Need help?

Do you have a question about the ATD-7304 and is the answer not in the manual?

Page 1 Owner's Manual Trolley Jack Model Capacity ATD-7304 2 Ton This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
Page 2: Safety And General Information
OR lowering! SPECIFICATIONS Model Capacity Jack Size (L x W x H) Max. Height Handle Length Weight ATD-7304 2 Ton 25 lbs. 19-1/4" x 8-1/4" x 5-3/8" 14" 18" PREPARATION Before Use 1. Verify that the product and application are compatible, if in doubt call for Technical Assistance.
Page 3: Operation
3. Refer to the vehicle manufacturer owner’s manual to locate approved lifting points on the vehicle. jack saddle under lift point. Figure 1 - ATD-7304 nomenclature 4. Verify lift point, then pump handle to contact lift point. To lift, pump handle until load reaches desired height.
Page 4: Maintenance
MAINTENANCE Important: Use only good grade hydraulic jack oil. Avoid mixing different types of and NEVER use brake turbine transmission motor oil or glycerin. Improper can cause premature failure of the jack and the potential for sudden and immediate loss of load. We recommend Mobil DTE 13M or equivalent. Adding Oil 2.
Page 5: Replacement Parts
Model ATD-7304 ITEM# ORDERING PART# PART DESCRIPTION FRONT WHEEL ASSEMBLY REAR CASTER ASSEMBLY SADDLE F-2332JSC-4 OIL FILLER PLUG F-2332JSC-5 HANDLE SPRING CLIPS LABELS OWNER'S MANUAL Figure 2 - ATD-7304 Replacement Parts Looking for car jacks? Visit our website.
