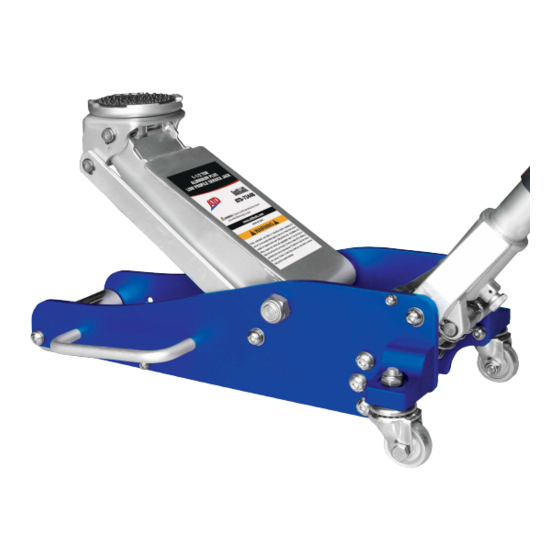

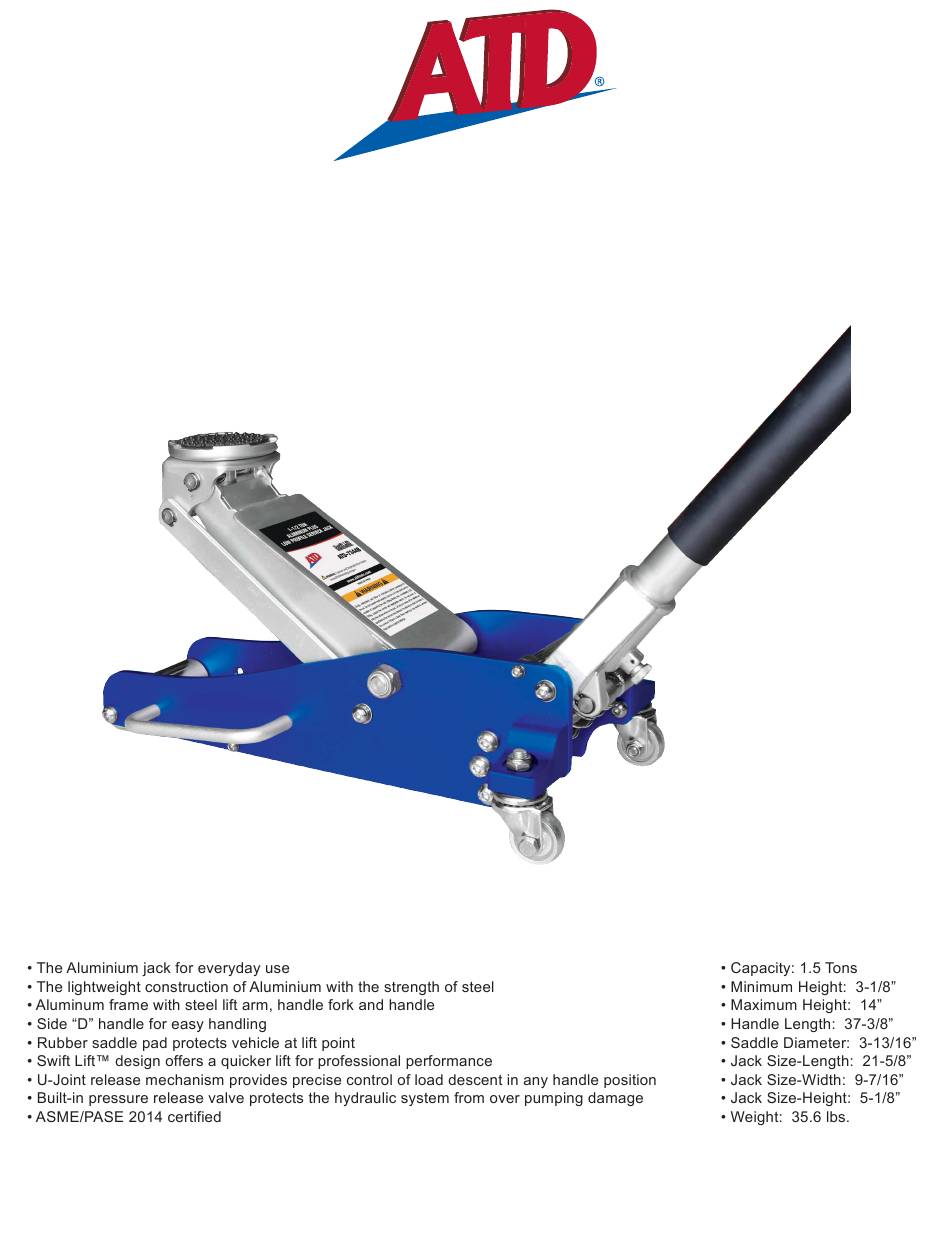

- Page 1 ATD-7344B 1.5 Ton Aluminum PLUS Low Profile Service Jack Owner’s Manual Features: Specifications: Made in China to ATD Tools, Inc. Specifications ATD7344B_rev_0319 Visit us at www.atdtools.com...
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. Y Always keep work area clean. Observe work area conditions. Keep children away. Store idle equipment. the right tool for the job. Dress properly. Use eye and ear protection. Do not overreach. Inspect before each use. WARNING - Service Jack - Do not exceed rated capacity. -
Page 3: Product Description
PRODUCT DESCRIPTION WARNING: Do not use hydraulic jack as a stand-alone device. After lifting, immediately support the lifted vehicle with a pair of appropriately rated jack stands. Figure 1... -
Page 4: Operation
PREPARATION Unpacking: Assembly: WARNING: Do not lift or carry jack by handle. Handle could dislodge and jack could fall, resulting in possible injury or property damage. OPERATION WARNING: The jack, and equipment being lifted, must be stable so when lifted, they do not fall and cause points for the vehicle. -
Page 5: Maintenance
MAINTENANCE General: Purging Air from the Hydraulic System: Oil Replacement: failure of the jack and the potential for sudden and immediate loss of load. ISO-VG22 or equivalent hydraulic oil is recommended. Maintain tools with care. Stay alert. Check for damaged parts. Replacement parts and accessories. -
Page 6: Troubleshooting
WARNING: The warnings, cautions, and instructions discussed in this instruction manual can not cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. Lubrication: Storage: Cleaning:... - Page 7 ATD-7344B REPLACEMENT PARTS ITEM# ORDERING PART# DESCRIPTION LTD1.5B-PJ-1 FRONT WHEEL ASSEMBLY LTD1.5B-PJ-2 SADDLE WITH PAD LTD1.5B-PJ-3 POWER UNIT ASSEMBLY LTD1.5B-PJ-6 HANDLE ASSEMBLY WITH FOAM LTD1.5B-PJ-5 HANDLE FORK ASSEMBLY REAR CASTER ASSEMBLY LTD1.5B-PJ-7 RETURN SPRINGS LTD1.5B-16 HANDLE FOAM ONLY LTD1.5B-PJ-8 SADDLE PAD ONLY LTD1.5B-PJ-9...
-
Page 8: Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
