ATD Tools ATD-7343 Owner's Manual

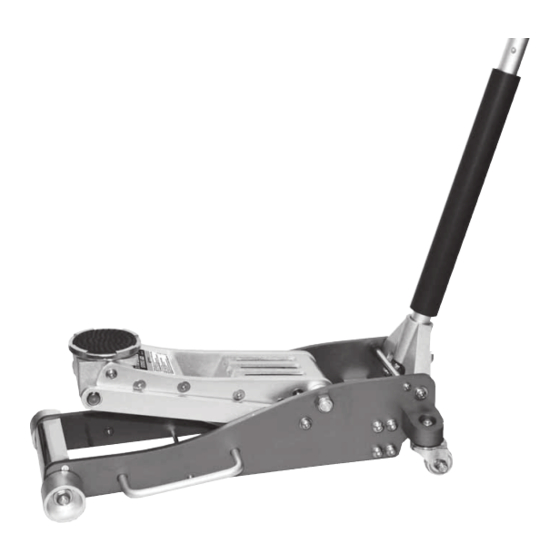

3 ton low profile aluminum floor jack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

3 TON LOW PROFILE ALUMINUM FLOOR JACK
Specifications:
Min.
Max.
Capacity
Height
Height
3 Tons
3-7/8"
18"
This hydraulic jack conforms to all "ANSI / ASME" safety standards.
WARNING: This product may contain chemicals, including lead, known to the State of California
ATD-7343
OWNER'S MANUAL
Handle
Overall Size
Length
47-5/8"
26.3/8" L x 13" W x 7-7/8
to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
Visit us at www.atdtools.com
Saddle
Strokes to Max. Height
Diameter
4-1/2"
6
Weight
55 lbs.
ATD7343_rev_1217

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD-7343 and is the answer not in the manual?

Questions and answers

Related Manuals for ATD Tools ATD-7343

Summary of Contents for ATD Tools ATD-7343

  • Page 1 ATD-7343 3 TON LOW PROFILE ALUMINUM FLOOR JACK OWNER’S MANUAL Specifications: Min. Max. Handle Saddle Capacity Overall Size Strokes to Max. Height Weight Height Height Length Diameter 3 Tons 3-7/8” 18” 47-5/8” 26.3/8” L x 13” W x 7-7/8 4-1/2”...

  • Page 2: Safety Warning And Precautions

    SAFETY WARNING AND PRECAUTIONS General Safety Warnings: WARNING: The instru ons and warnings contained in this manual should be read and understood before using or opera ng this tool. Do not allow anyone to use or operate this tool un l they have read this manual and have developed a thorough understanding of how this tool works.

  • Page 3: Prior To Operation

    WARNING: Ensure that there are no persons inside the vehicle to be li ed. Switch o the engine and apply the brake. Chock each unli ed e in BOTH direc ons as shown below. WARNING: Posi on the jack under the manufacturer's recommended li ing point for the vehicle. O centered loads can slip and accidents may result.

  • Page 4: Maintenance

    Support the vehicle with appropriate jack stands. Li the vehicle to remove the jack stands, ensuring that there are no persons or obstruc ons under the vehicle. Turn the handle counter clockwise. MAINTENANCE: Important: Both the maintenance and repair of the jack may only be performed by quali ed persons, who have su cient knowledge of the hydraulic system used in these jacks Regularly lubricate the moving parts in the wheels, arms, handle and pump roller pin.

  • Page 5: Troubleshooting

    TROUBLESHOOTING: CAUTION: To prevent personal injury, all inspec on, maintenance, and repair procedures must be performed when the jack is free of load. Trouble Cause Solu on 1. Release valve is open 1. Verify the release valve is closed. Release valve may need cleaning 2.
  • Page 6 ATD-7343 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT7343-01 P01 - SADDLE PAD PRT7343-11 P11 - NUT, M12 PRT7343-02 P02 - SADDLE SCREW PRT7343-12 P12 - HANDLE YOLK PRT7343-03 P03 - SADDLE PRT7343-13 P13 - HANDLE SET SCREW...

  • Page 7: Year Limited Warranty

    Your ATD-7343 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
