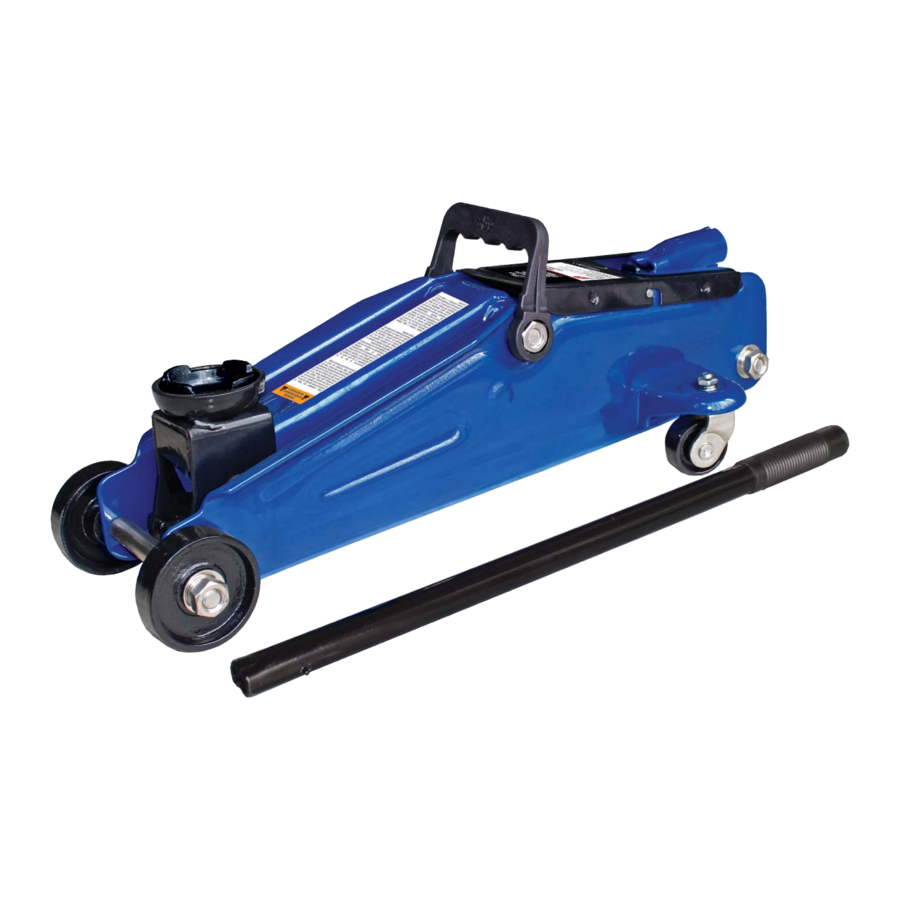

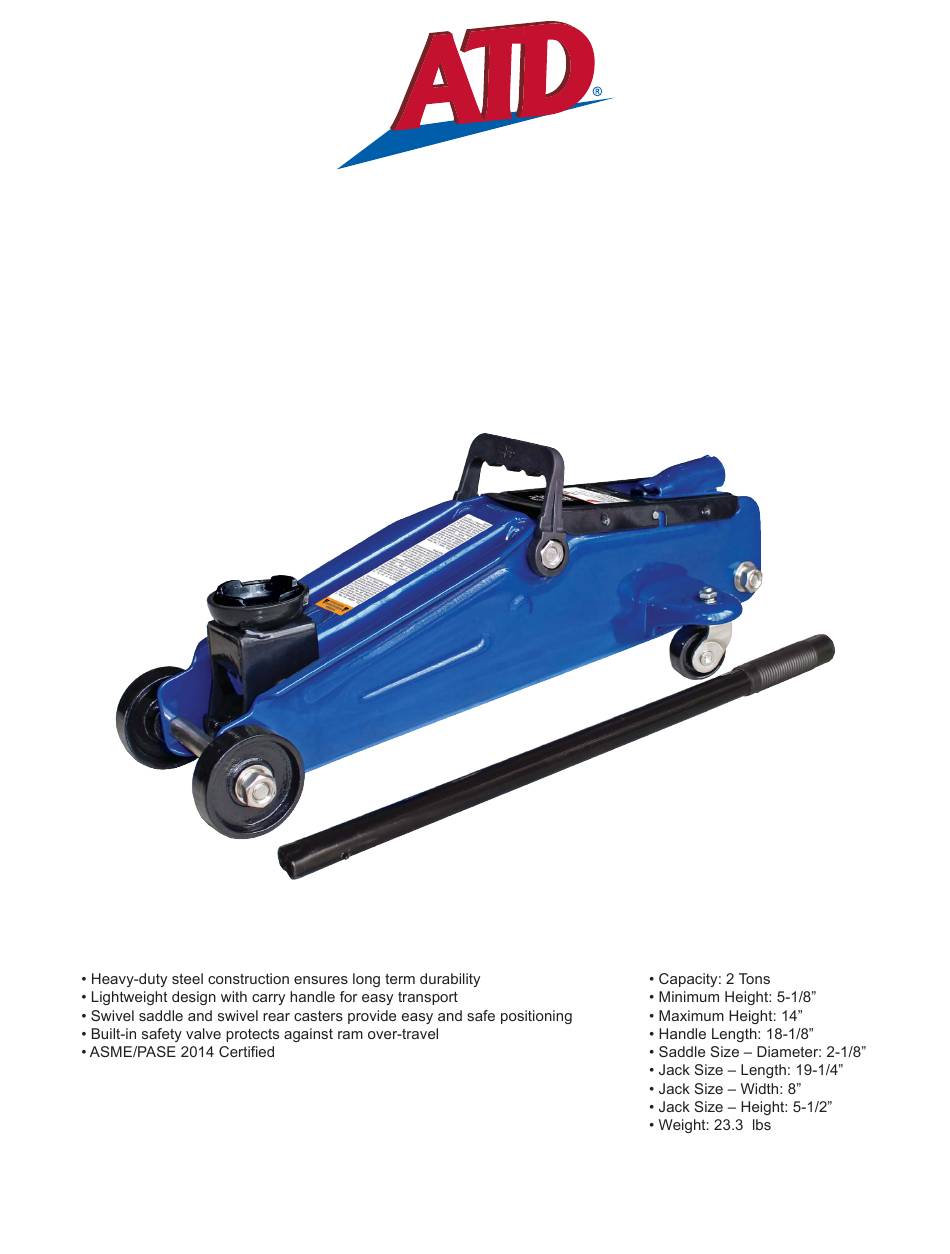

- Page 1 ATD-7304A 2-Ton Trolley Jack Owner’s Manual Features: Specifications: Made in China to ATD Tools, Inc. Specifications ATD7304A_rev_0319 Visit us at www.atdtools.com...
-
Page 2: Safety And Warning Information
SAFETY & WARNING INFORMATION This is the safety n c on Indicates a hazardous WARNING symbol. This symbol will n fy you situ on. If proper steps are of any poten al injury hazards. not followed, death or Please follow all instruc ons that serious injury could result. - Page 3 SETUP, OPERATION & PREVENTIVE MAINTENANCE Setup: Prior to each use, a visual inspec on (See Pg. 5) should be made by checking for abnormal condi ons such as cracked welds, leaks, and damaged, loose, or missing parts on the device. Consult the vehicle owner’s manual to determine the loca on of li points.
-
Page 4: Maintenance
SETUP, OPERATION & PREVENTIVE MAINTENANCE (Cont.) Maintenance NOTICE: Use high grade hydraulic oil only. Never use brake uid, motor oil, transmission uid, turbine oil or any other uids. ISO-VG22 or equivalent hydraulic oil is recommended. Check and Refill Oil: With the jack in the fully lowered, level posi on, remove the unit cover (if provided), then remove oil ller plug. -
Page 5: Inspection, Storage & Troubleshooting
INSPECTION, STORAGE & TROUBLESHOOTING Inspection Visual inspec on should be made before each use of the device by checking for abnormal condi ons, such as cracked welds, leaks and damaged, loose, or missing parts. Other inspec ons should be made according to the product opera ng instruc ons. This device shall be inspected immediately if the device is believed to have been subjected to an abnormal load or shock. -
Page 6: Replacement Parts
REPLACEMENT PARTS Not all components of the are replacement items, are illustrated as a convenient reference of parts location. parts, Item Part Number Descrip on LYQ2G-100 Front Wheel LYQ2D.400 Saddle LYQ2E-101 Carrying Handle LYQ2G-300 Power Unit Assembly LYQ2-17 Return Springs LYQ2D.200 Rear Caster Assembly LYQ2G-200... -
Page 7: Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES _______________________________________ ________________________________________ portion of the product under warrant Some states’ laws do not allow limited durations on certain implied warranties and some states’ laws do not allow limitations on... -
Page 8: Preventive Maintenance Record Log
PREVENTIVE MAINTENANCE RECORD LOG Date Maintenance Performed...
