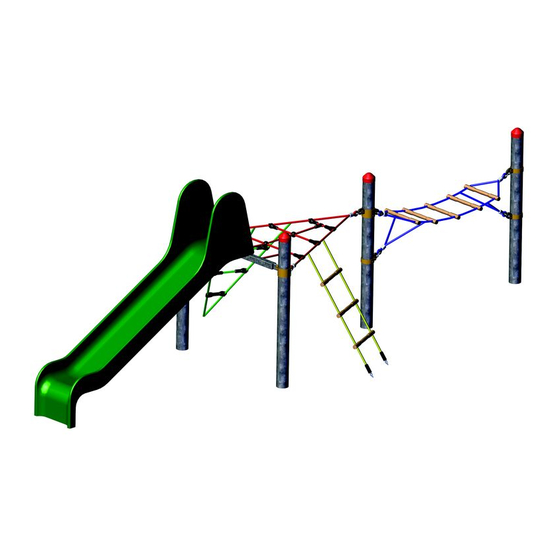

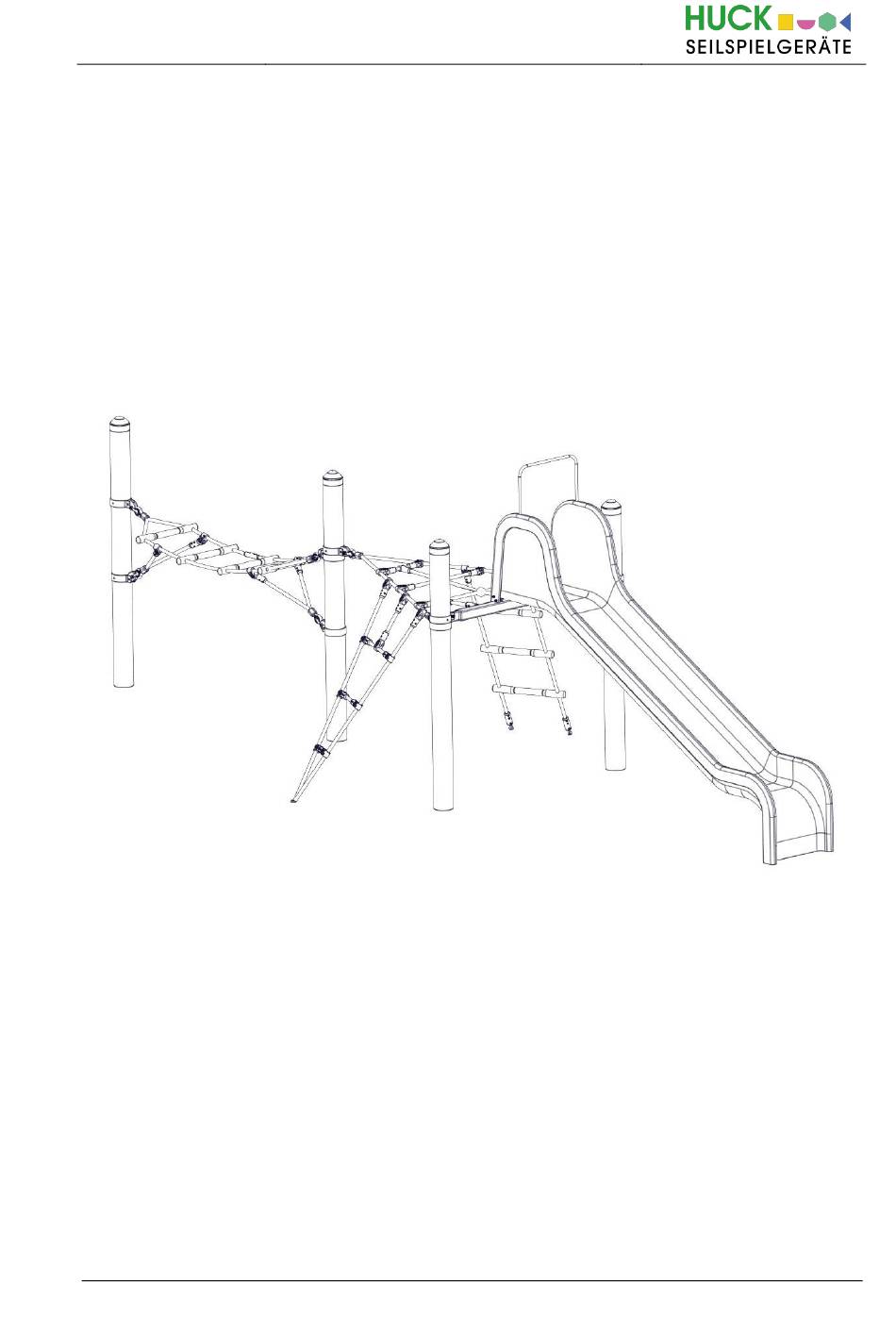

Gnome Forest "Rabenscheid" Art. 4591-20
(Version: Steel posts, ø 101,6 mm to be set in concrete)
Attention! Only use the assembly instructions included in the scope of delivery
for the assembly, installation and maintenance of the respective equipment!
Operator:
Location:
\\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
seiltechnik@huck.net • www.huck.net
A Assembly instruction
______________________________________________
______________________________________________
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rabenscheid and is the answer not in the manual?

Questions and answers

Related Manuals for HUCK Seiltechnik Rabenscheid

Summary of Contents for HUCK Seiltechnik Rabenscheid

  • Page 1: A Assembly Instruction Gnome Forest "Rabenscheid" Art. 4591-20 (Version: Steel Posts, Ø 102 Mm To Be Set In Concrete)

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net A Assembly instruction Gnome Forest “Rabenscheid” Art. 4591-20 (Version: Steel posts, ø 101,6 mm to be set in concrete) Attention! Only use the assembly instructions included in the scope of delivery...
  • Page 2 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revision history Revision 0 – 2005-02-15 The first allowed version Assembly instruction Revision 12 – 2022-06-07 jetzt mit Kettenadapter Alle Rechte vorbehalten - 2 - \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc...
  • Page 3 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net © Copyright 2004 Huck Seiltechnik GmbH \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 3 -...

  • Page 4: Table Of Contents

    Assembly instruction Gnome Forest “Rabenscheid” Art. 4591-20 (Version: Steel posts, ø 102 mm to be set in concrete) ........1 Introduction Assembling ........................ 5 Datasheet Gnome Forest “Rabenscheid”, No. 4591-20 .............. 6 Delivery contents (parts list with part numbers)................8 Erection instructions ........................13 Post installation checks .......................

  • Page 5: Introduction Assembling

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2).

  • Page 6: Datasheet Gnome Forest "Rabenscheid", No. 4591-20

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Datasheet Gnome Forest “Rabenscheid”, No. 4591-20 Component zone: 5350 x 1975 mm safety zone: 8200 x 5200 mm Height of equipment: 1800 mm Height of Fall: 1000 mm Fall protection area: 29,50 m²...
  • Page 7 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Round off foundation edges (min.R = 100 mm)! Sizes of fundations are designed for soils class“4-5” (natural ground). Soil class 4: soft to medium plasticity, interleave bound, with minor portion of stone (portion <...

  • Page 8: Delivery Contents (Parts List With Part Numbers)

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 3 Delivery contents (parts list with part numbers) In words (please notice: piece numbers refer to 1 equipment) Table 3-1: Delivery contents, in words Pos. Quantity Element / Size O.K.

  • Page 9: Table 3-2: Delivery Contents, In Symbols

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Ø 101,6 mm, 2,40 m long Platform height 1,00 m 1,09 m long M10 x 65 mm Toothed washers for M10 \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc...
  • Page 10 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Quantity Symbol for 101,6 mm for 101,6 mm for 101,6 mm 5,5 x 25 mm pre-assembled 4 x 25 mm Fix anchor + Chain adapter M12 - 10 -...
  • Page 11 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Pos. Quantity Symbol M6 x 16 mm for M6 pre-assembled for M6 DIN 9021 pre-assembled Loctite \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 11 -...
  • Page 12 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Version: Gnome forest slide the legally prescribed setting times must be observed Concrete C25/30 Drainage layer 10 or 5cm thick Required space incl. safety area pre-assembled! H. 1 1.) The two sheet metal angles are on the traverse already pre-assembled! 2.) The fastening parts cylinder head screws (item 110),...

  • Page 13: Erection Instructions

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Erection instructions \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 13 -...
  • Page 14 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Screw locking devive! Glue all screws, nuts and sleeves with Loctite. (not less than 5 drops!) (exept for lock nut) - 14 - \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc...
  • Page 15 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 15 -...
  • Page 16 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 16 - \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc...
  • Page 17 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 17 -...
  • Page 18 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 18 - \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc...
  • Page 19 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 19 -...

  • Page 20: Post Installation Checks

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth  Labelling the posts to show the depth of material provided as fall protection (i.e.

  • Page 21: B Maintenance Instruction Gnome Forest "Rabenscheid" Art. 4591-20 (Version: Steel Posts, Ø 102 Mm To Be Set Into Concrete)

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Maintenance instruction Gnome Forest “Rabenscheid” Art. 4591-20 (Version: Steel posts, ø 102 mm to be set into concrete) \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc - 21 -...
  • Page 22 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revision history Revision 0 – 2005-02-15 The first allowed version Assembly instruction Revision 12 – 2022-06-07 jetzt mit Kettenadapter FH Alle Rechte vorbehalten © Copyright 2004 Huck Seiltechnik GmbH - 22 - \\CAD1\Standard\4591-20\Montageanleitung\4591_20_Wichtelwald_Rabenscheid_ST_B_L_12_GBR.doc...

  • Page 23: Introduction Maintenance

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous.

  • Page 24: General Maintenance Information

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use.

  • Page 25: Specific Maintenance Advice

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 7.10 Faults Faults must be repaired as soon as they are detected. If serious defects that compromise safety cannot be repaired straight away, the public must be prevented from using the equipment with immediate effect.

  • Page 26: Maintenance Timetable

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Maintenance timetable Special advices 9.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment.

  • Page 27: Monthly Maintenance

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 10 Monthly maintenance  Check the spaces between the equipment and the ground (clearance and height of fall).  Check the ground surface in the area with fall protection for hard objects and loose foundations.

  • Page 28: Annual Maintenance

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net  Annual Maintenance  12 Annual maintenance  Ascertaining that the equipment, foundations and surfaces are safe for operation.  In particular, the equipment should be checked for decay and corrosion. It may be necessary to dig out or excavate certain components in order to do so.

  • Page 29: Maintenance Printout

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 13 Maintenance printout Name of item: Gnome Forest “Rabenscheid”/ Art. No. 4591-20 Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. Accessible Barriered Defects...

  • Page 31: Hand Over Document

    Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 14 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
